Power Distribution Relay: Testing and Inspection

1NZ-FE STARTING: ACC CUT RELAY: INSPECTION

1. INSPECT ACC CUT RELAY





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance between the terminals.

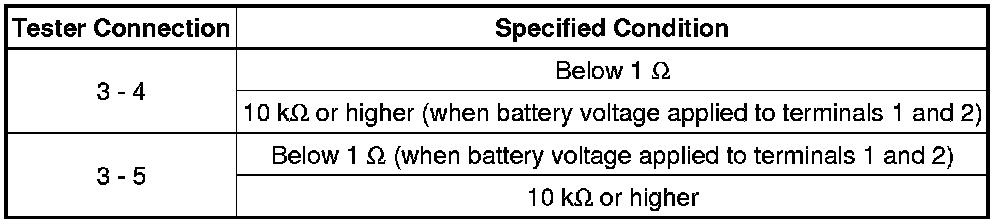

Standard resistence:





If the result is not as specified, replace the relay.
