Installation

1NZ-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR

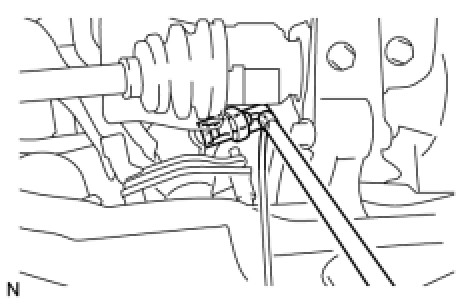

(a) Using SST, install the air fuel ratio sensor.

SST : 09224-00010

Torque : 44 Nm (449 kgf-cm, 33 ft-lbf) (without SST)

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) (with SST)

HINT
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

(b) Connect the air fuel ratio sensor connector and the clamp.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

3. CHECK FOR EXHAUST GAS LEAKAGE
