Installation

1NZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR

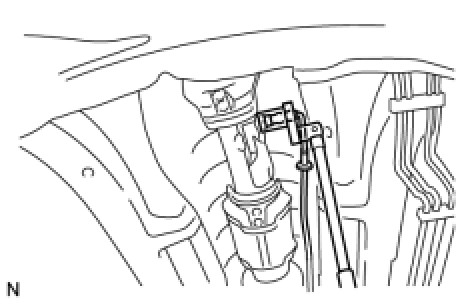

(a) Using SST, install the sensor onto the front exhaust pipe.

SST : 09224-00010

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) (without SST)

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) (with SST)

HINT
Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

(b) Pass the sensor connector through the floor panel and install the grommet.

(c) Connect the sensor connector.

2. INSTALL INSTRUMENT PAD LOWER LH (for Sedan) Installation

3. INSTALL REAR CONSOLE BOX ASSEMBLY Installation

4. INSTALL CONSOLE BOX CARPET Installation

5. INSTALL CONSOLE BOX COVER REAR (for Hatchback) Installation

6. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Sedan) Installation

7. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle) Installation

8. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Installation

9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (for Sedan) Installation

11. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (for Sedan) Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

13. CHECK FOR EXHAUST GAS LEAKAGE
