Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

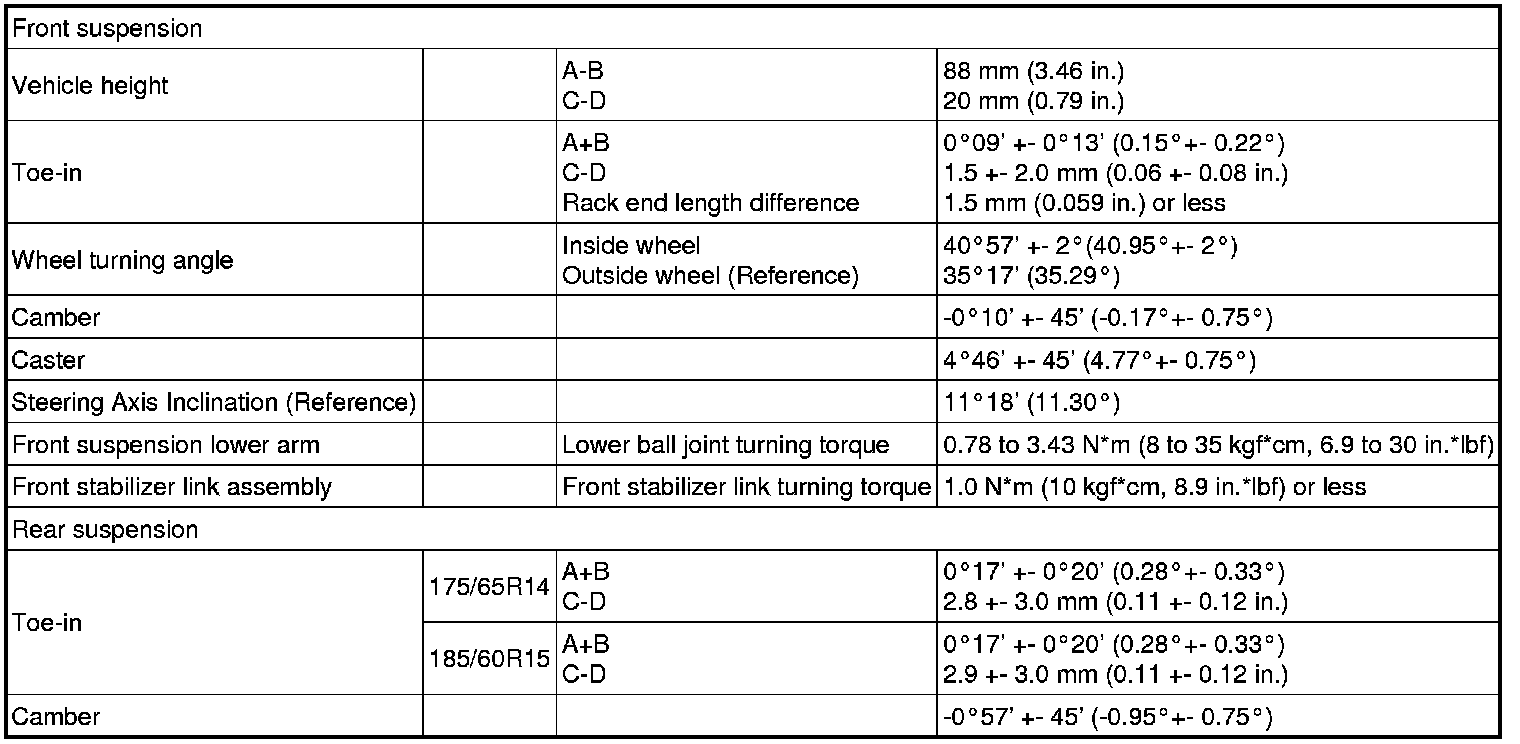

Hatchback (Except Rough Road Package)

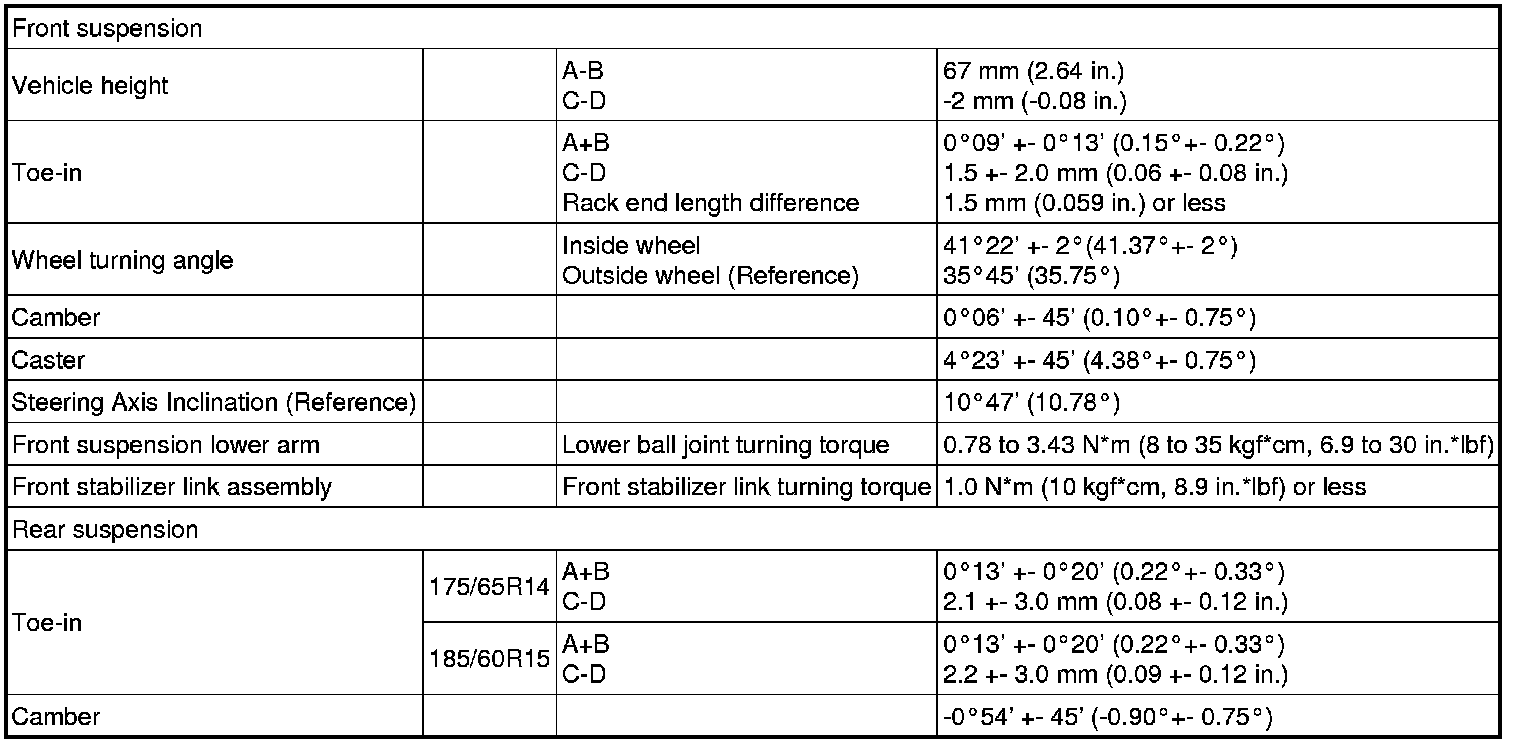

Hatchback (Rough Road Package)

Sedan (Except Rough Road Package)

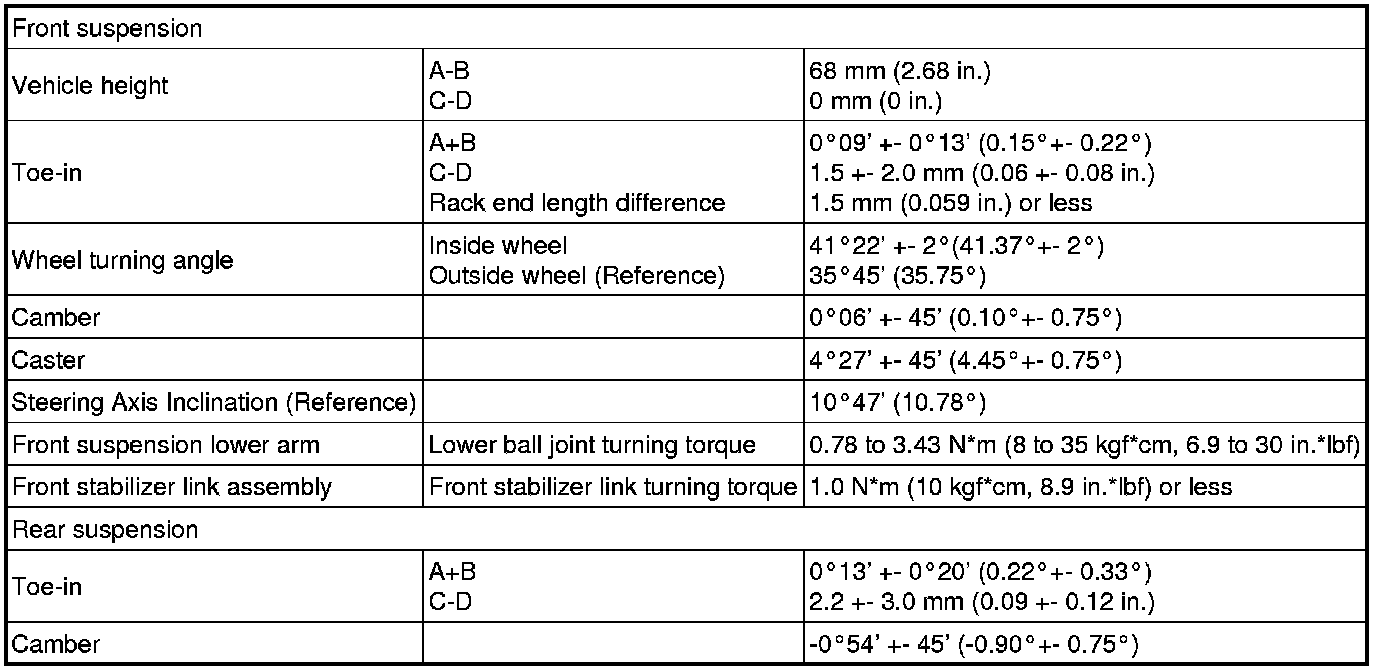

Sedan (Rough Road Package)

MEASURE VEHICLE HEIGHT

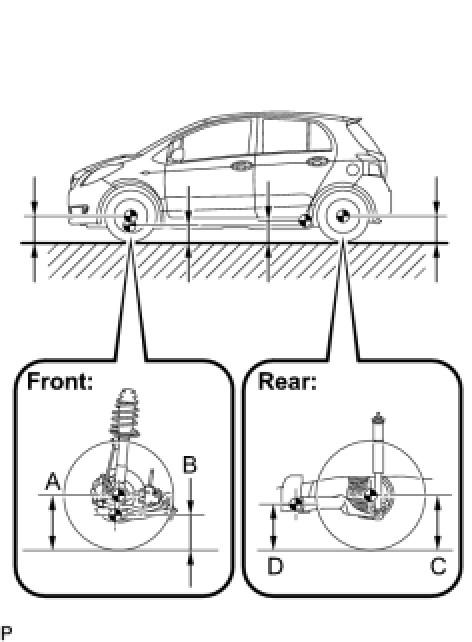

Hatch back:

Measuring points:

A:Ground clearance of front wheel center

B:Ground clearance of lower arm set front bolt center

C:Ground clearance of rear wheel center

D:Ground clearance of axle beam set bolt center

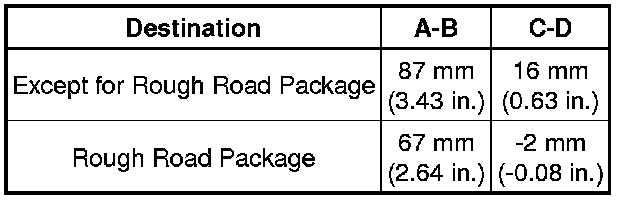

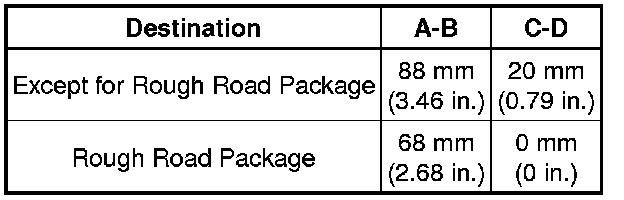

Vehicle Height (Unloaded Vehicle):

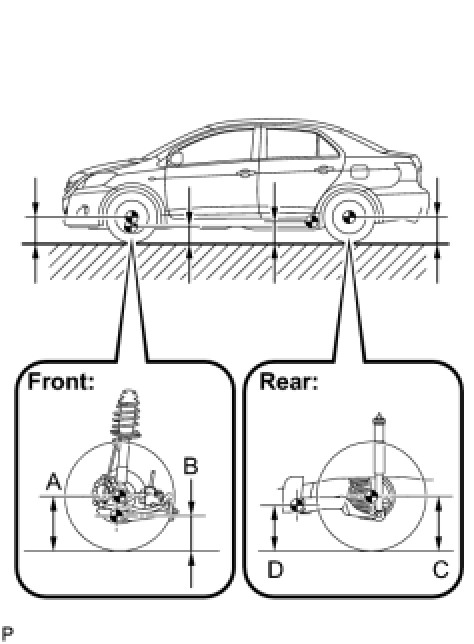

Sedan:
