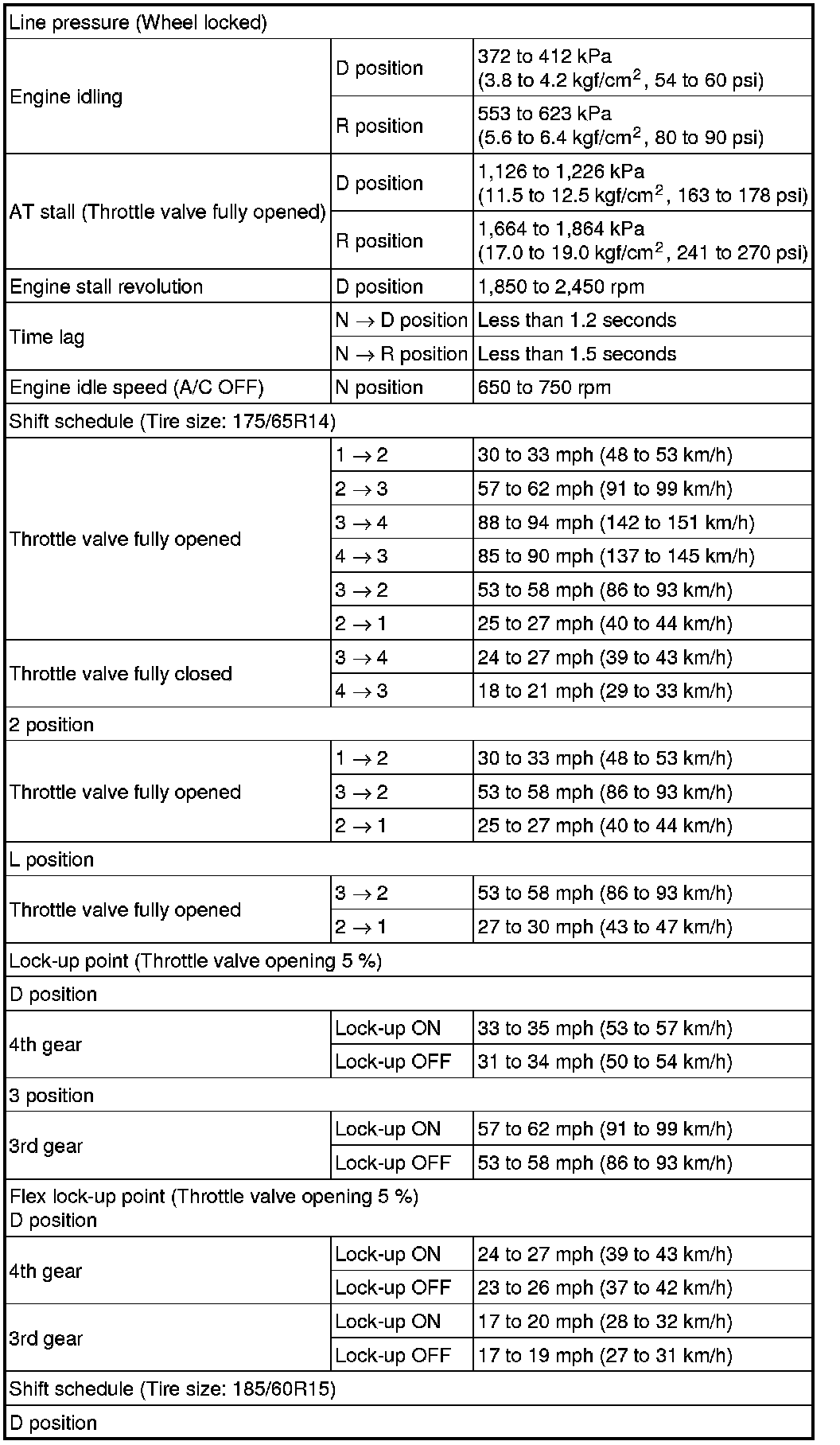

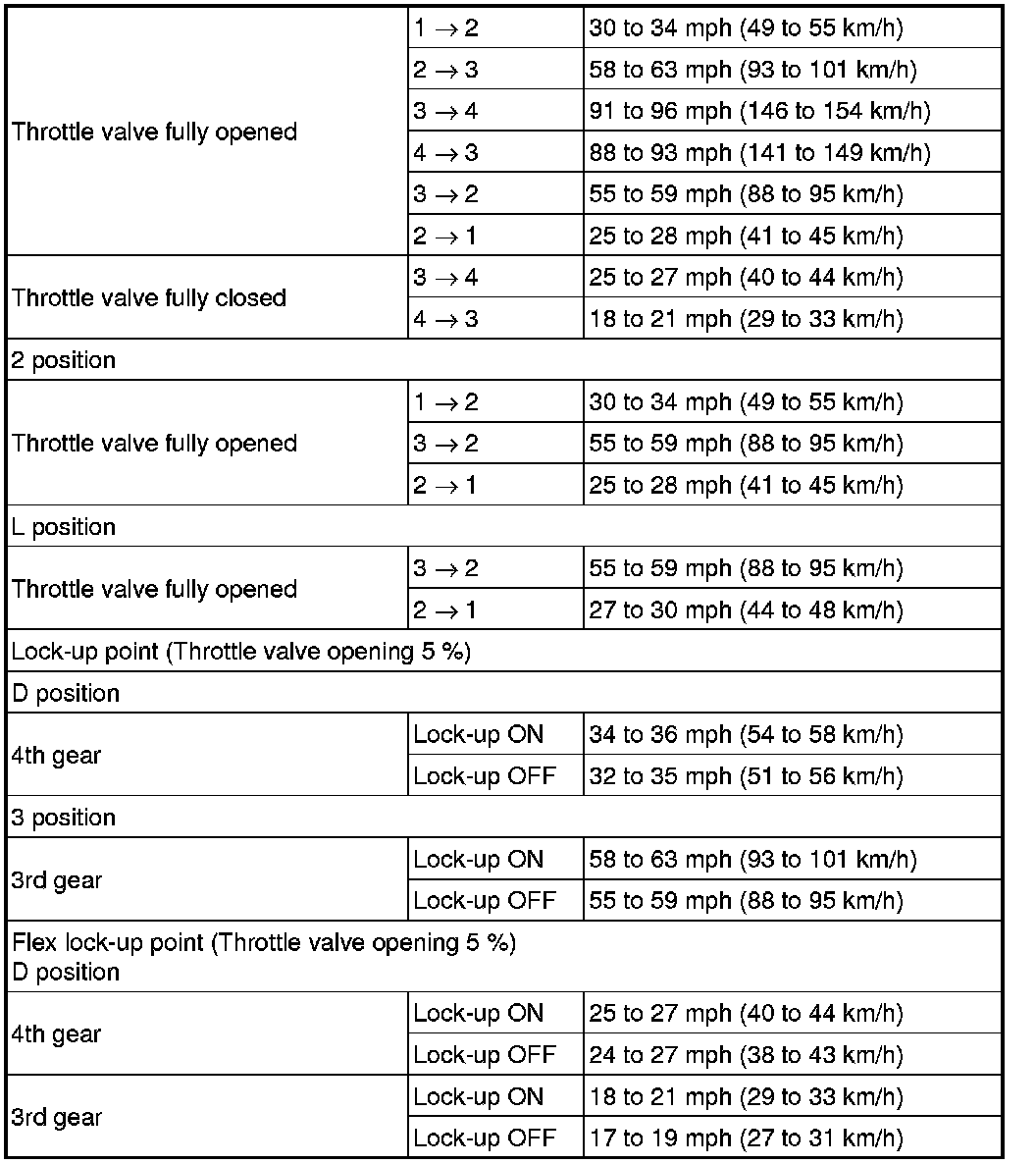

SERVICE SPECIFICATIONS: U340E AUTOMATIC TRANSAXLE: SERVICE DATA
Automatic Transaxle System
Automatic Transaxle Unit
