Cylinder Head Assembly

CYLINDER HEAD SUB-ASSEMBLY

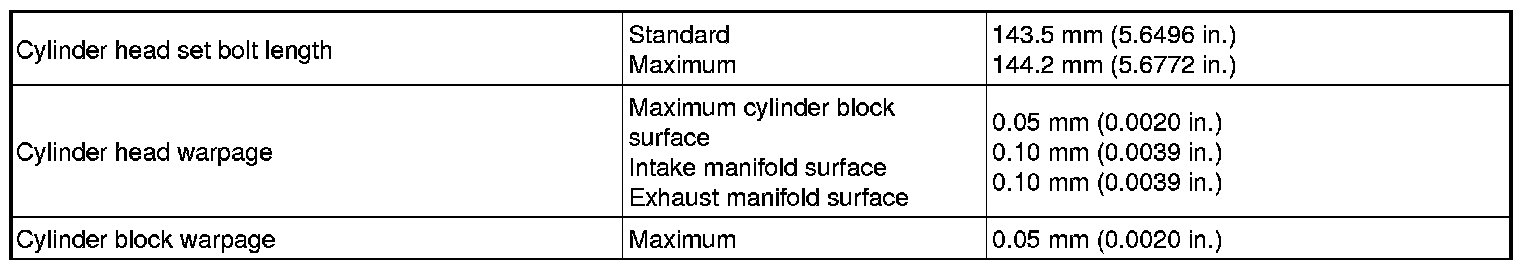

The cylinder head bolts are tightened in 2 successive steps.

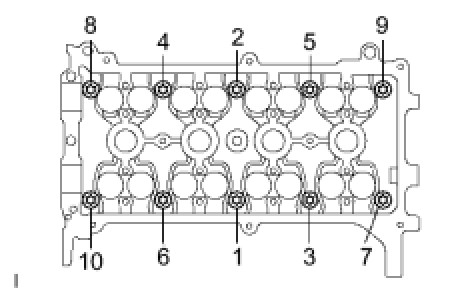

Using several steps, install and tighten the 10 cylinder head bolts and plate washers uniformly with an 8 mm bi-hexagon wrench in the sequence shown in the illustration.

Torque 29 Nm (300 kgf-cm, 22 ft-lbf)

Mark the front of the cylinder head bolt with paint.

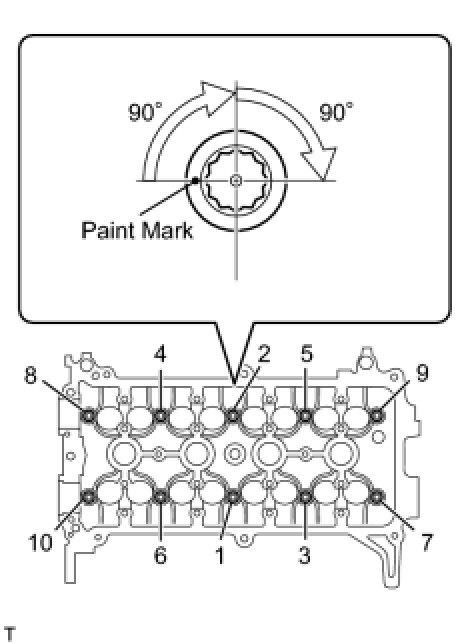

Retighten the cylinder head bolts by 90° and then an additional 90° as shown in the illustration.






Check that the paint mark is now at a 180° angle from the front.

CYLINDER HEAD






CAMSHAFT ()

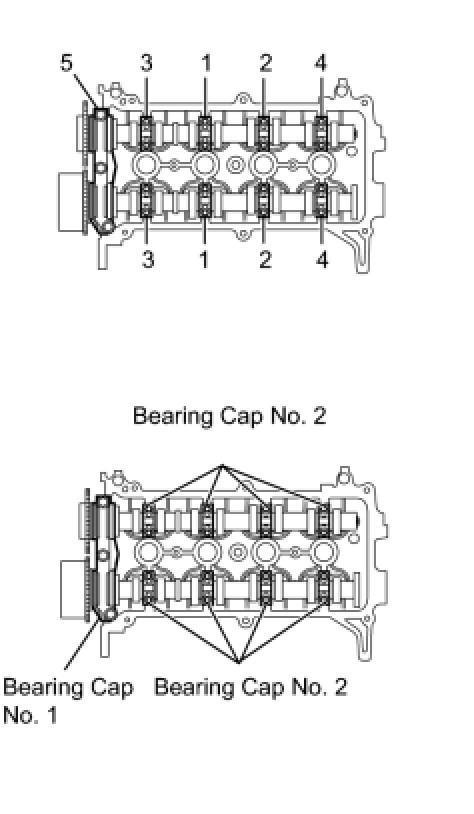

Uniformly tighten the bolts in several steps in the sequence shown in the illustration and install camshaft bearing cap No. 1 and camshaft bearing cap No. 2.






Camshaft bearing cap No. 1 - Torque 23 Nm (235 kgf-cm, 17 ft-lbf)

Camshaft bearing cap No. 2 - Torque 13 Nm (129 kgf-cm, 9.4 ft-lbf)
