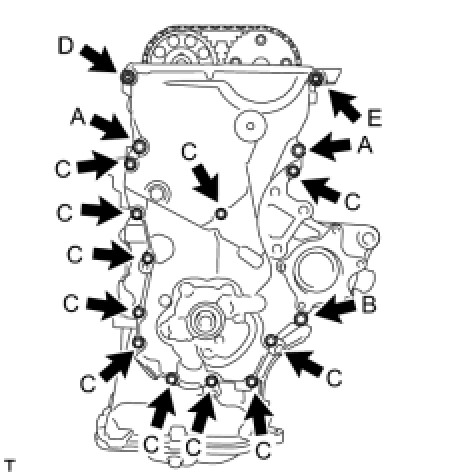

Timing Cover

Tighten the bolts and nut uniformly in several steps.

Torque : 32 Nm (326 kgf-cm, 24 ft-lbf) for bolt A

Torque : 11 Nm (112 kgf-cm, 8.1 ft-lbf) for bolt B

Torque : 11 Nm (112 kgf-cm, 8.1 ft-lbf) for bolt C

Torque : 24 Nm (245 kgf-cm, 18 ft-lbf) for nut D

Torque : 24 Nm (245 kgf-cm, 18 ft-lbf) for bolt E
