Flywheel

FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

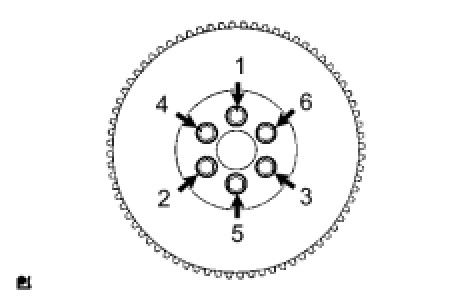

Install the flywheel with the 6 bolts in the order shown in the illustration.

Torque 49 Nm (500 kgf-cm, 38 ft-lbf)

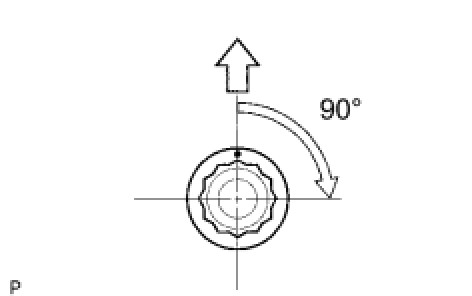

Mark a paint mark on each bolt head on the engine upper side.

Tighten the bolts 90° in the sequence shown in the illustration.

Do not start the engine for at least 1 hour after performing the installation.
