Ignition Switch: Testing and Inspection

1NZ-FE STARTING: IGNITION SWITCH: INSPECTION

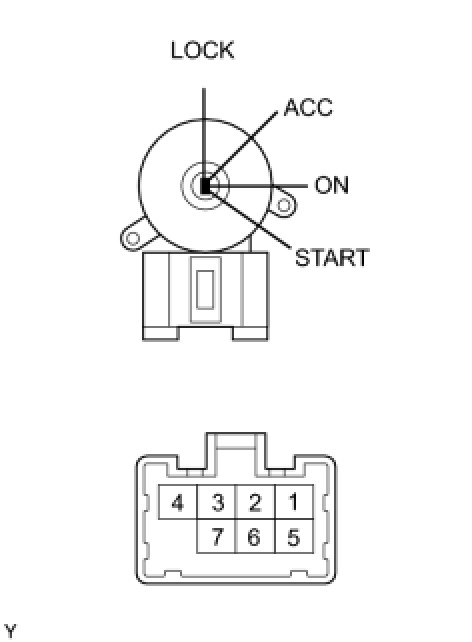

1. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY

(a) Check the resistance.





(1) Using an ohmmeter, measure the resistance between the terminals.

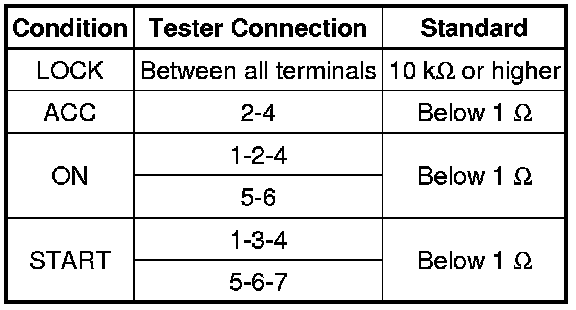

Standard resistance:
