Installation

U340E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Install the park/neutral position switch assembly onto the manual transaxle.

(b) Provisionally install the 2 bolts.

(c) Replace the lock plate with a new one and tighten the manual valve shaft nut.





Torque : 6.9 Nm (70 kgf-cm, 61 in-lbf)

(d) Provisionally install the control shaft lever.

(e) Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.





(f) Remove the control shaft lever.

(g) Align the groove with the neutral basic line.





(h) Hold the switch in this position and tighten the 2 bolts.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(i) Using a screwdriver, stake the nut with the lock plate.





(j) Install the control shaft lever with the nut and washer.





Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

(k) Connect the connector to the park/neutral position switch assembly.

2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Install the transmission control cable onto the control shaft lever with the nut.

Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

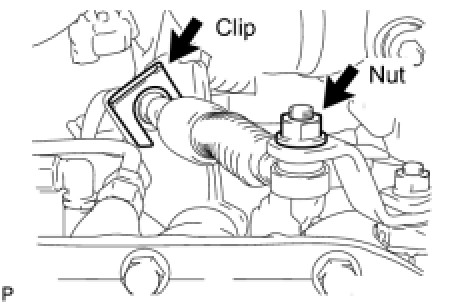

(b) Install the transmission control cable into the bracket with the new clip.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

4. ADJUST SHIFT LEVER POSITION Adjustments

5. INSPECT SHIFT LEVER POSITION Testing and Inspection

6. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY Initial Inspection and Diagnostic Overview

7. INSTALL ENGINE UNDER COVER LH
