Installation

1NZ-FE STARTING: IGNITION RELAY: INSTALLATION

1. INSTALL IGNITION RELAY

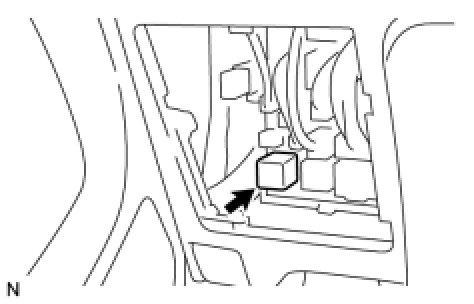

(a) Install the ignition relay.

2. INSTALL INSTRUMENT PANEL BOX Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
