Installation

HEATING / AIR CONDITIONING: SOLAR SENSOR: INSTALLATION

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR (SOLAR SENSOR)

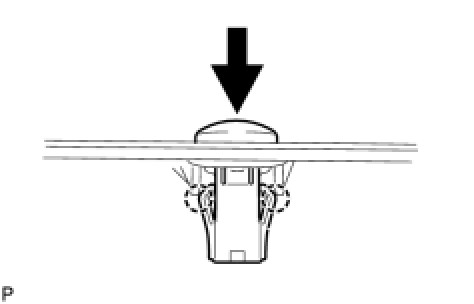

(a) Attach the 2 claws to install the sensor.

(b) Connect the connector.

2. INSTALL NO. 3 HEATER TO REGISTER DUCT Reassembly

3. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT Reassembly

4. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT Reassembly

5. INSTALL NO. 2 HEATER TO REGISTER DUCT Reassembly

6. INSTALL NO. 1 HEATER TO REGISTER DUCT Reassembly

7. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY

(a) Install the instrument panel sub-assembly Installation.
