Service Data

SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: SERVICE DATA

Front Drive Shaft Assembly

Front Propeller Shaft

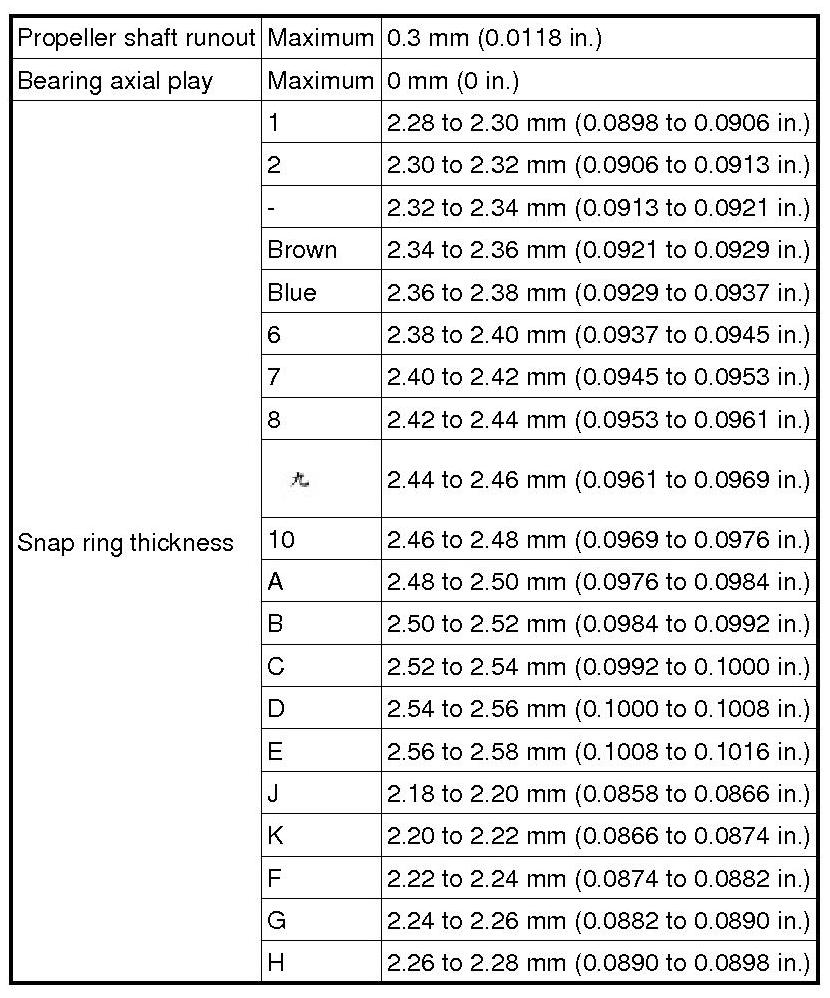

Rear Propeller Shaft Assembly (for 2WD)

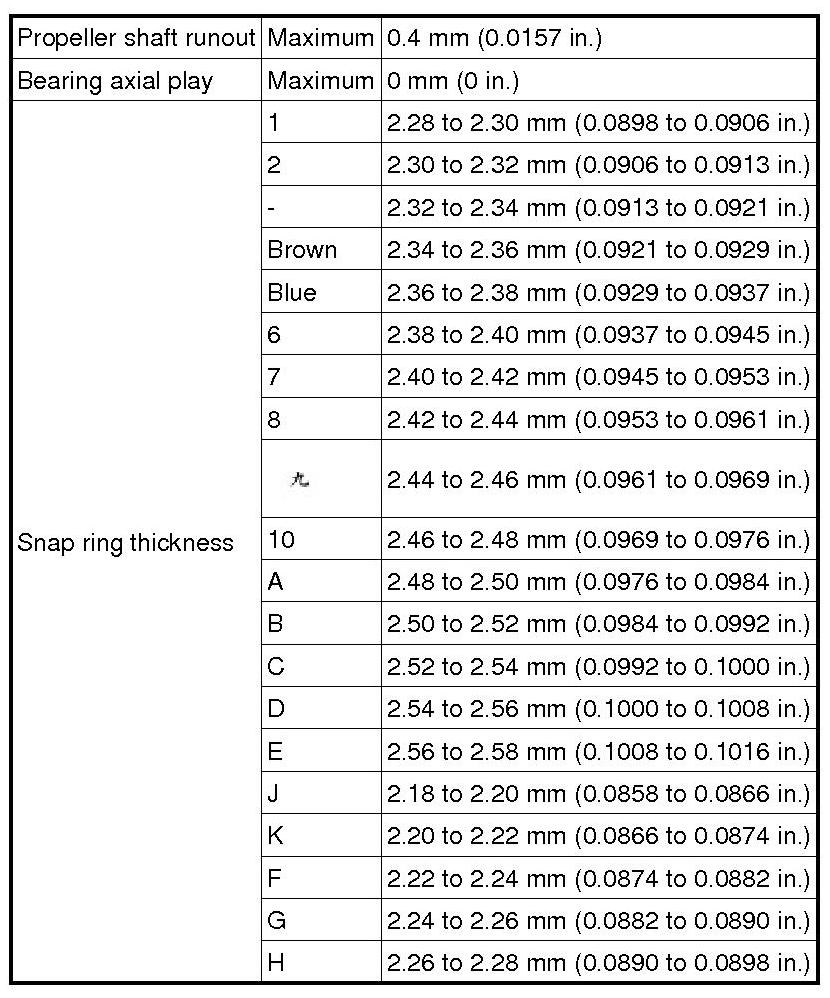

Rear Propeller Shaft Assembly (for 4WD)
