Programming and Relearning





WIPER / WASHER: WIPER AND WASHER SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Customize.

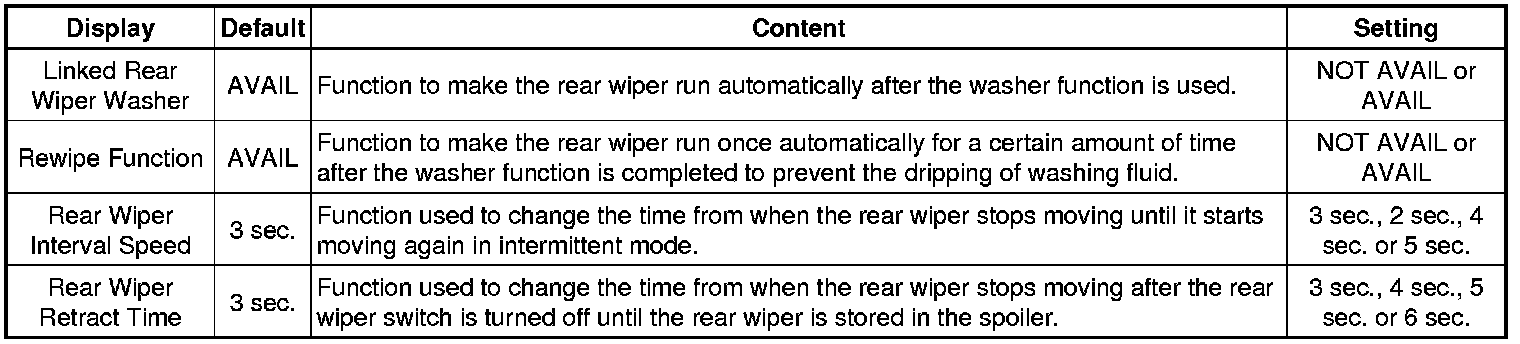

(e) Select the setting by referring to the table below.

Wiper
