Scan Tool Testing and Procedures
SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Memory): DATA LIST / ACTIVE TEST
1. DATA LIST
HINT
Using Techstream's DATA LIST allows the status of a switch, sensor, actuator and other items to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Read the DATA LIST.

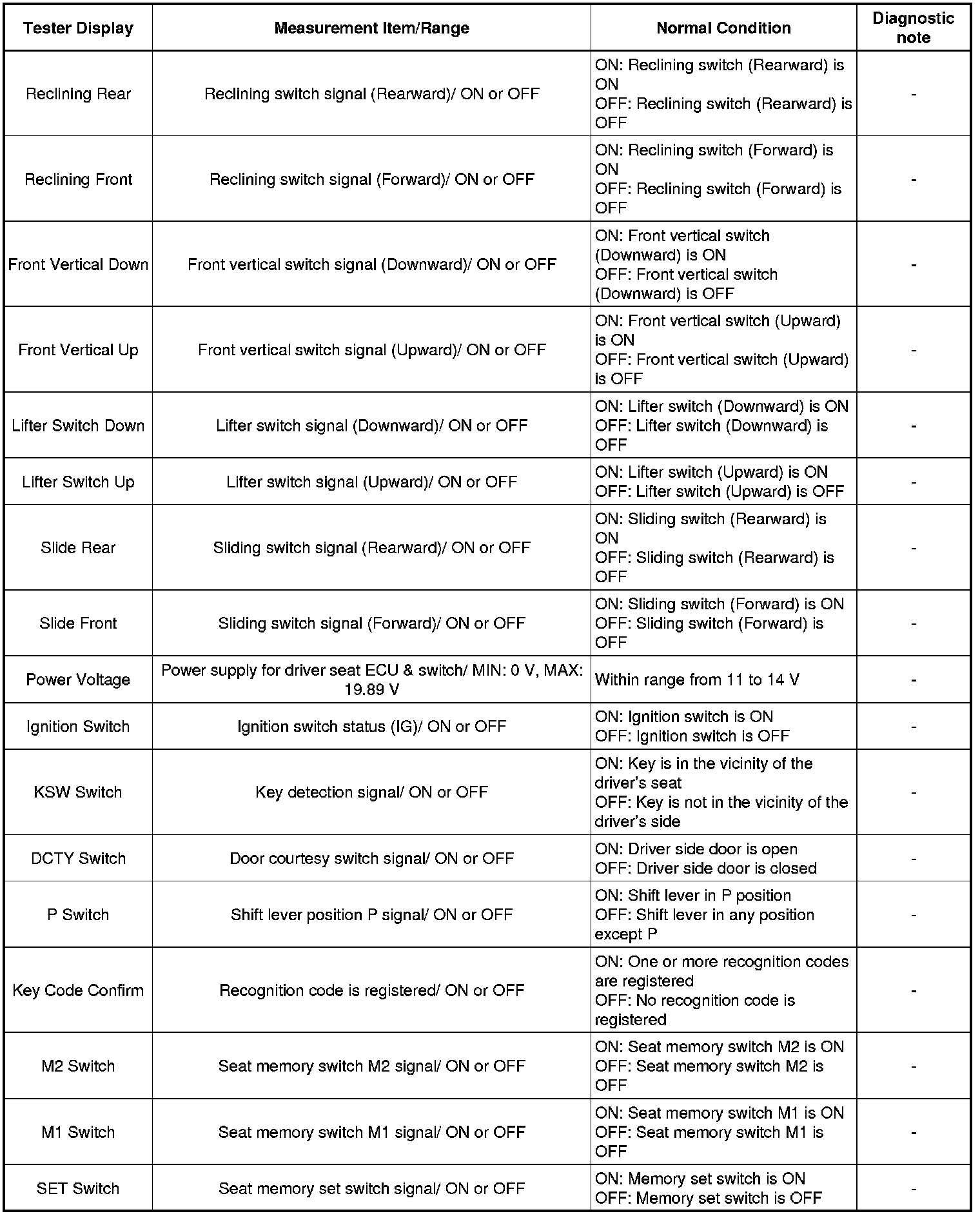

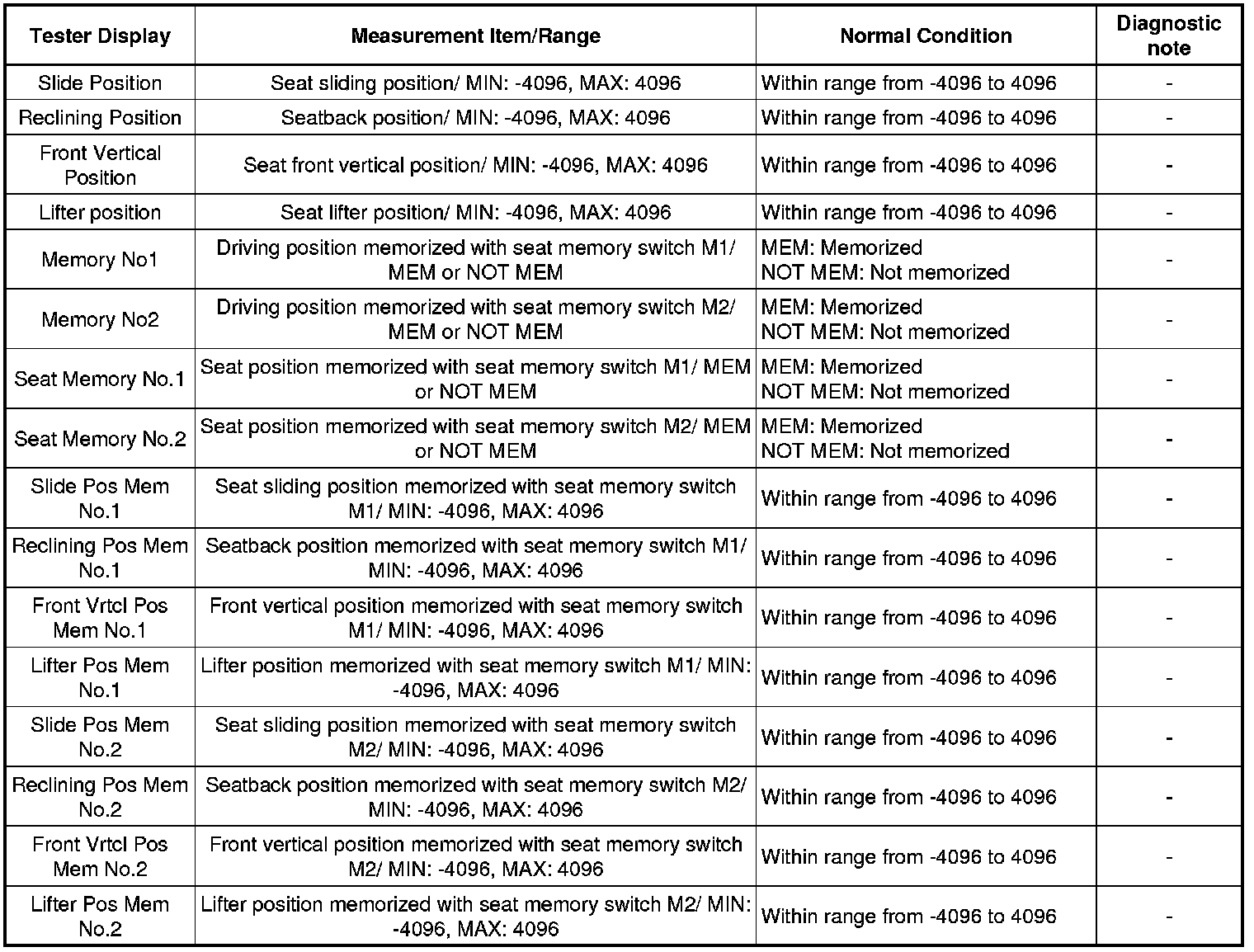

Driver Seat:
2. ACTIVE TEST
HINT
Using Techstream's ACTIVE TEST allows the relay, VSV, actuator, and other items to be operated without removing any parts. Reading the ACTIVE TEST early in troubleshooting is one way to save time.
The DATA LIST can be displayed during the ACTIVE TEST.
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch on (IG).
(c) Perform the ACTIVE TEST by following the directions on the tester screen.

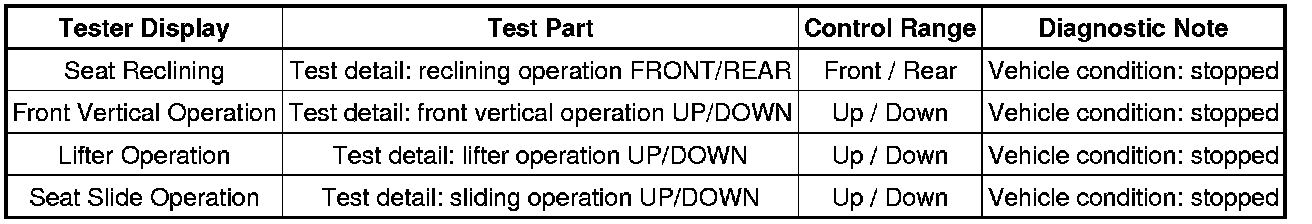

Driver Seat:
