Disassembly

AIR CONDITIONING: COMPRESSOR: DISASSEMBLY

1. REMOVE MAGNETIC CLUTCH ASSEMBLY

(a) Remove the bolt and bracket.

(b) Place the compressor and magnetic clutch in a vise.

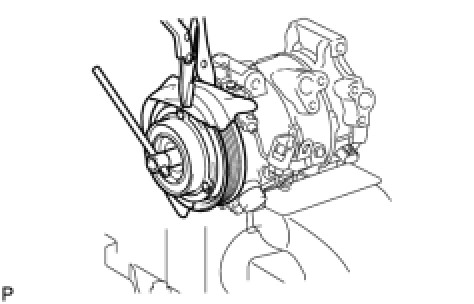

(c) Using vise pliers, hold the magnet clutch hub.





(d) Remove the bolt, magnetic clutch hub and magnetic clutch washer.

(e) Using a snap ring expander, remove the snap ring and magnetic clutch rotor.





(f) Disconnect the connector.

(g) Using a snap ring expander, remove the snap ring and magnetic clutch stator.
