Heater Control Panel Power Source Circuit





AIR CONDITIONING: AIR CONDITIONING SYSTEM: Heater Control Panel Power Source Circuit
- Heater Control Panel Power Source Circuit

DESCRIPTION

Battery voltage is supplied to the A/C control assembly through the HTR fuse.

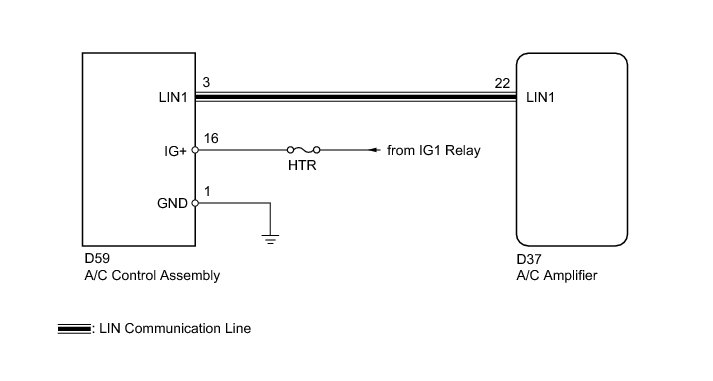

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (IG+ - BODY GROUND)

(a) Disconnect the connector from the A/C control assembly.

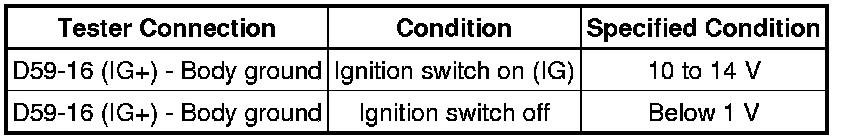

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

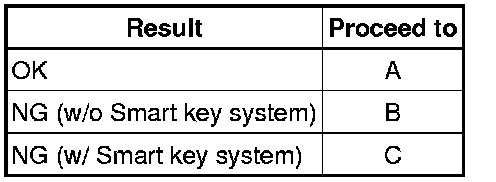

Result:





B -- GO TO STARTING SYSTEM

C -- GO TO PUSH BUTTON START SYSTEM
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (GND - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
