Customize Parameters





METER: METER / GAUGE SYSTEM: CUSTOMIZE PARAMETERS

1. BUZZER ON/OFF SETTING

(a) The buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver's seat belt buzzer and front passenger's seat belt buzzer.

NOTICE:
Basically, these buzzers should be set on for safe driving. However, perform the following procedures only if it is necessary to set the buzzer off.

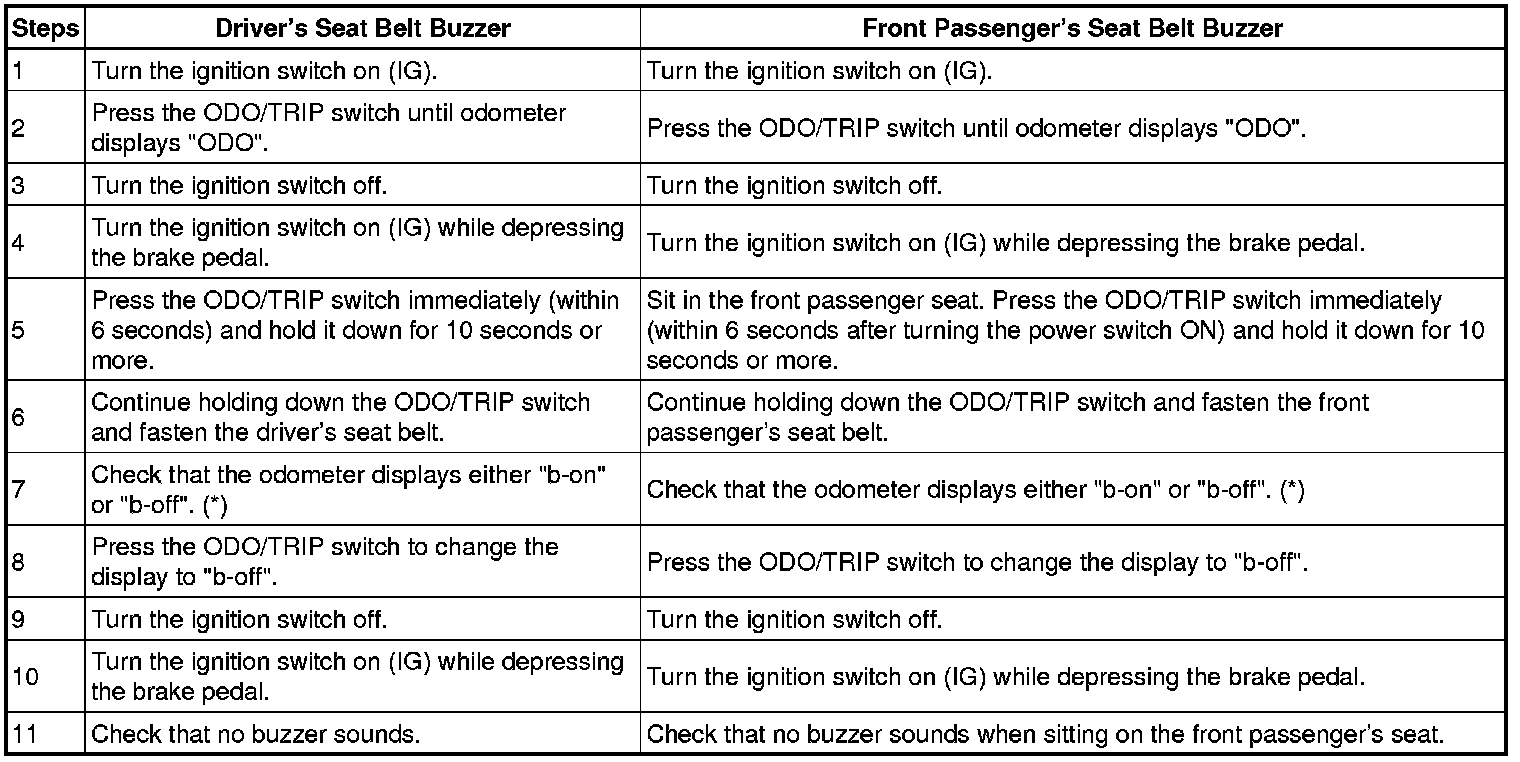

PROCEDURE:





*:"b-off" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that buzzer ON/OFF setting is complete. If it is not complete, start from step 1 again.

NOTICE:
When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.

2. CUSTOMIZE PARAMETER (Using Techstream)

(a) The following items can the possible items to be customized.

NOTICE:
* Be sure to record the current value before customizing.
* When performing troubleshooting, be aware that the functions may be set to OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not set to OFF by customizing, then perform the troubleshooting)

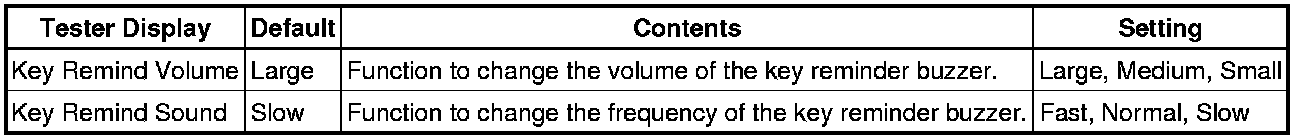

Combination Meter:
