Computers and Control Systems: Description and Operation

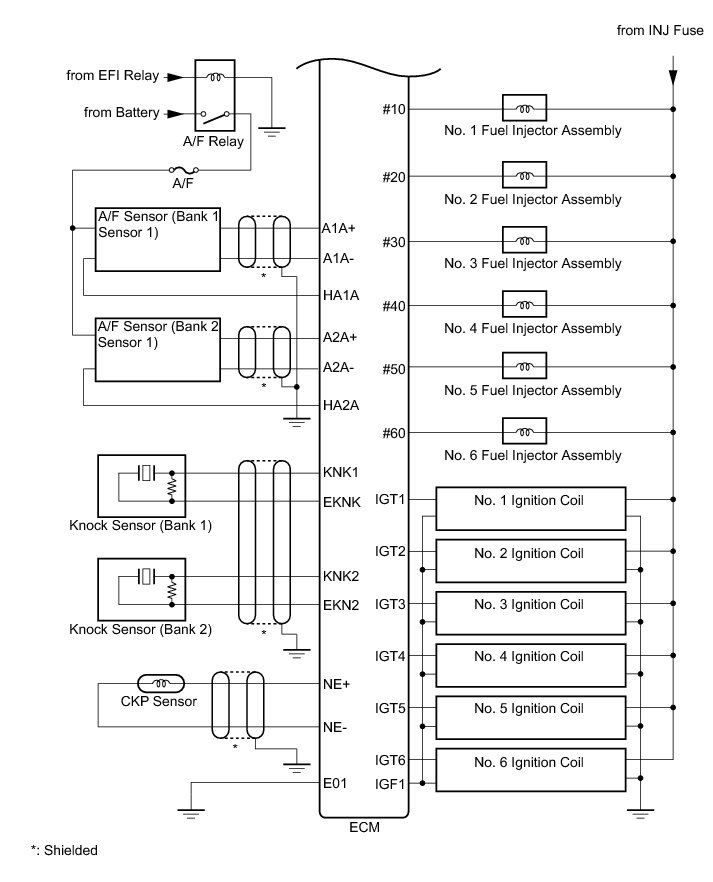

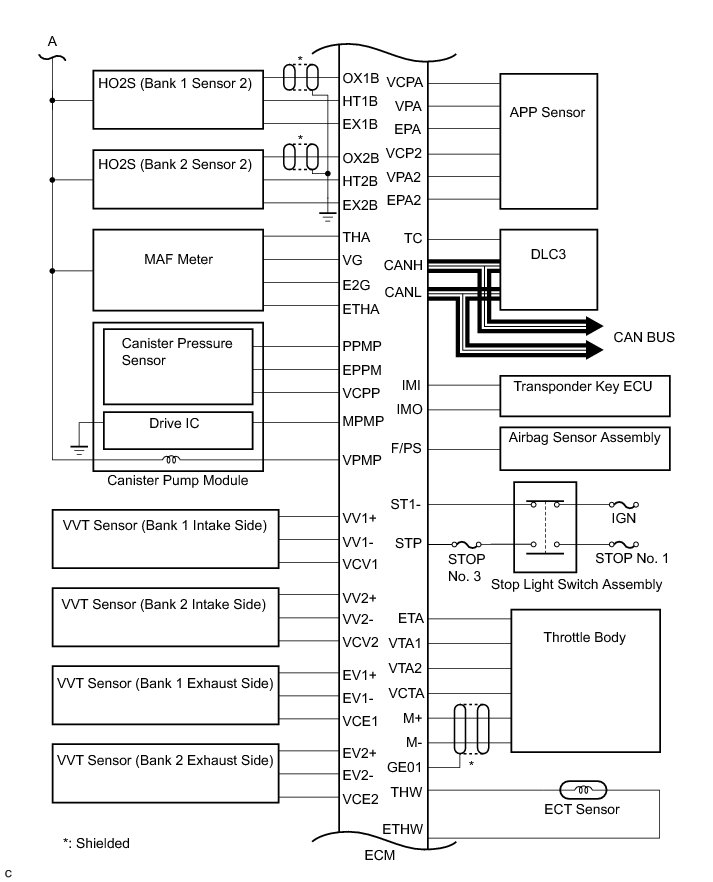

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM

1. w/o Smart Key System:













2. w/ Smart Key System:
