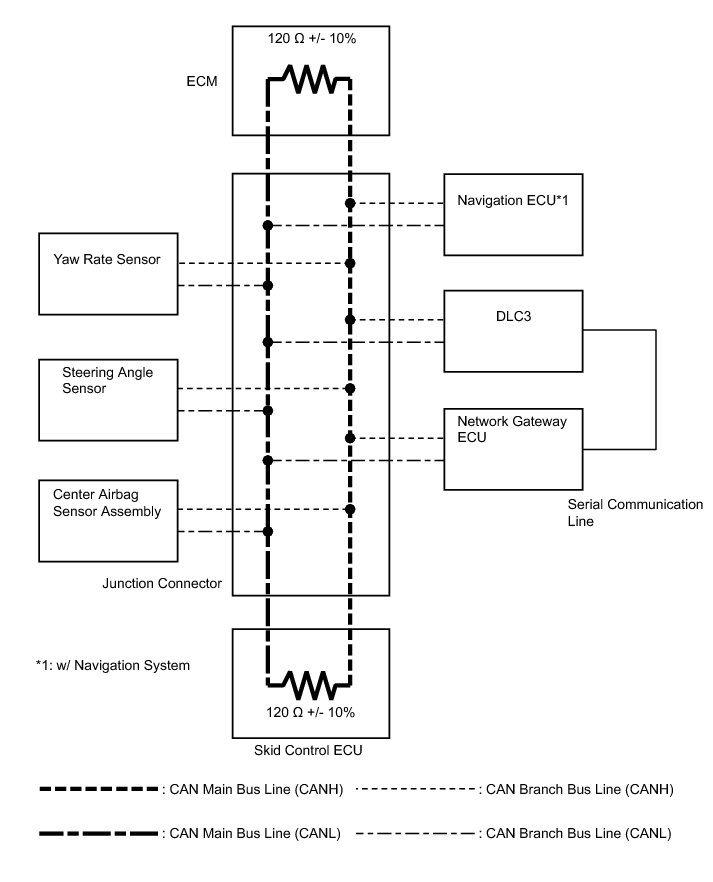

System Diagram

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

HINT
The skid control ECU detects and stores steering angle sensor and yaw rate sensor DTCs and performs DTC communication by receiving information from the steering angle sensor and yaw rate sensor.
