Installation
2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION 1.
INSTALL
OXYGEN SENSOR (a)

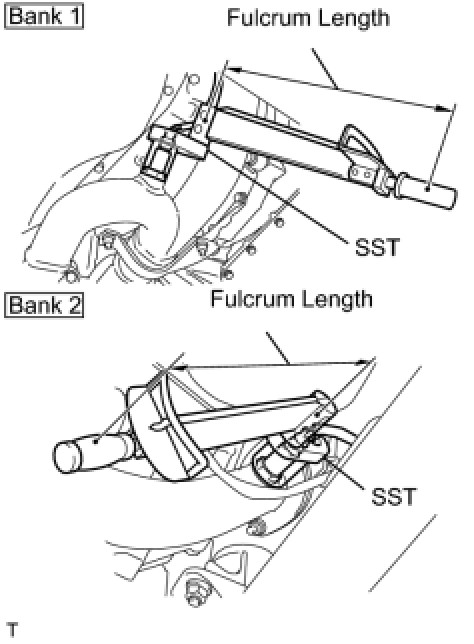

Install the 2
oxygen sensors to the front pipe assembly.
SST : 09224-00010 Torque : 44 Nm (449 kgf-cm, 32 ft-lbf) Torque : 40 Nm (408 kgf-cm, 30 ft-lbf) (with SST) NOTICE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.). (b)
Connect the 2
oxygen sensor connectors.
