Inspection
2GR-FE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: INSPECTION 1.
INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
(a)
Using an ohmmeter, measure the resistance between the terminals.
(b)

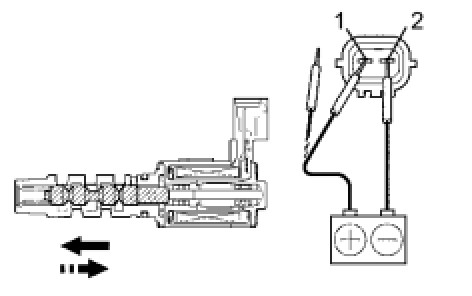

Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2. Check the movement of the valve.

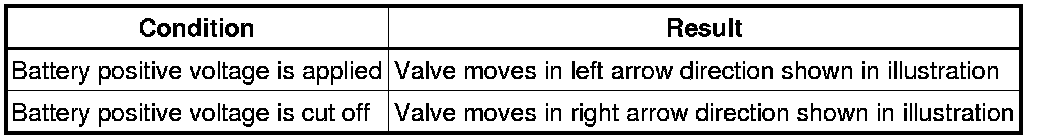

OK: If operation is not as specified, replace the valve.
