Start / Stop Switch: Testing and Inspection
2GR-FE STARTING: ENGINE SWITCH (w/ Smart Key System): INSPECTION 1.
ENGINE SWITCH
(a)

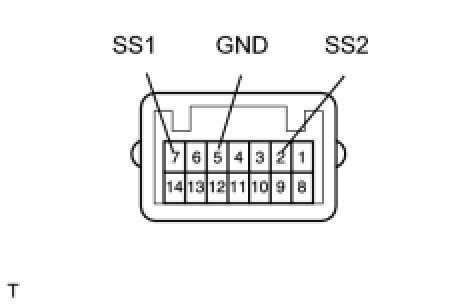

Using an ohmmeter, measure the engine switch resistance.

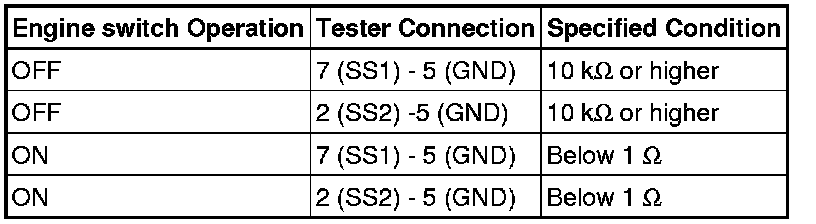

Resistance: If the result is not as specified, replace the switch assembly.
