System Description





WINDSHIELD / WINDOW GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER WINDOW CONTROL SYSTEM DESCRIPTION

(a) The power window control system controls the power windows' UP/DOWN function using regulator motors.

The main controls of this system are: the multiplex network master switch assembly, which is built into the driver side door, and the multiplex network switches, which are built into the passenger side door and rear doors. Pressing each switch on the multiplex network master switch assembly transmits a remote UP/DOWN signal to each multiplex network switch.

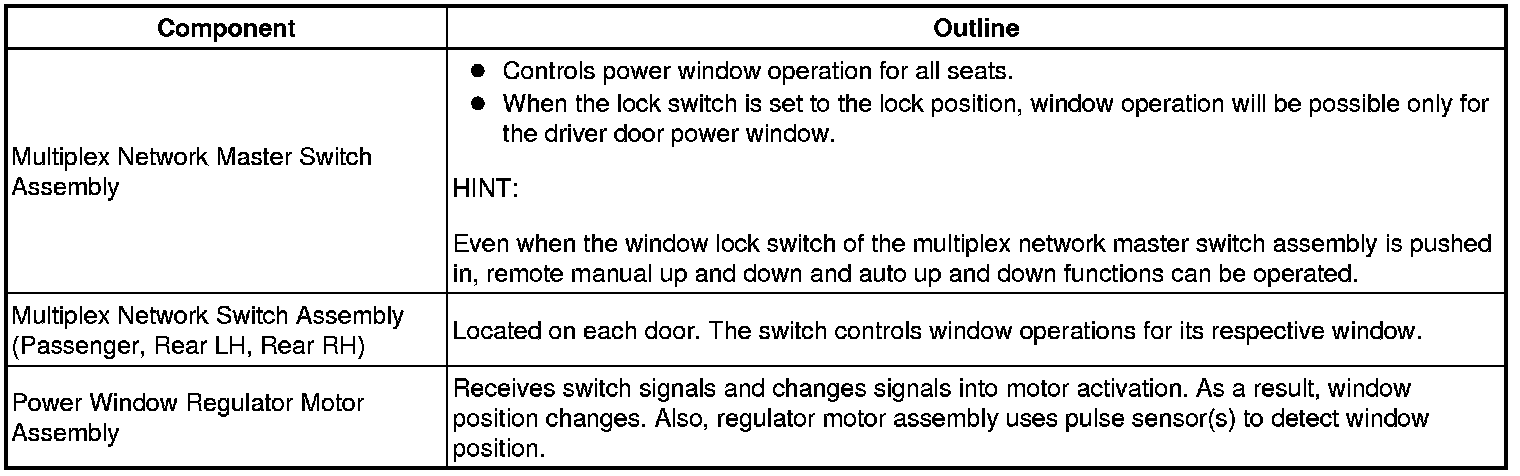

2. FUNCTION OF MAIN COMPONENT





3. SYSTEM FUNCTION

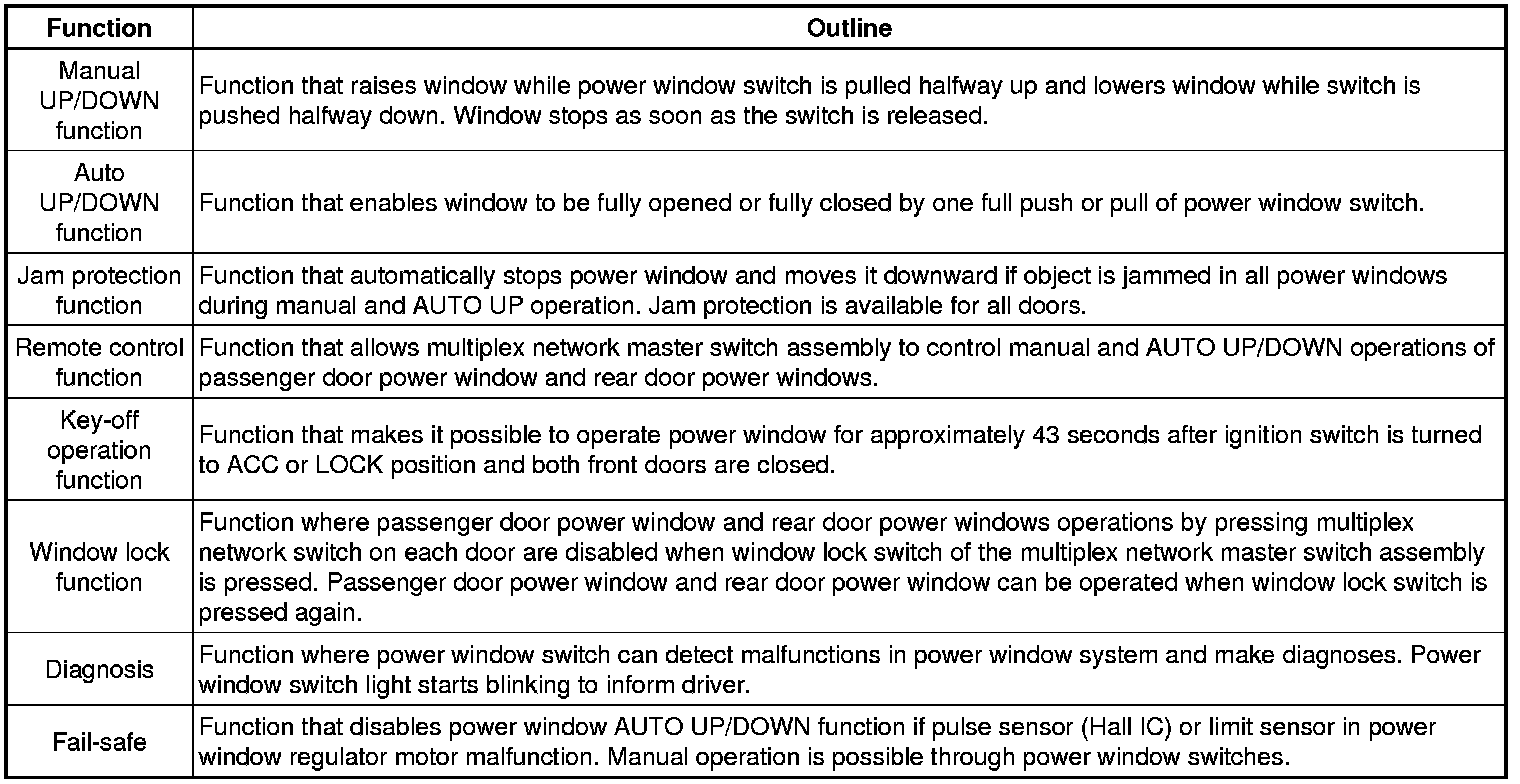

(a) The power window control system has the following functions:
