Power Window Master Switch Power Source Circuit





WINDSHIELD / WINDOW GLASS: POWER WINDOW CONTROL SYSTEM: Power Window Master Switch Power Source Circuit
- Power Window Master Switch Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the multiplex network master switch.

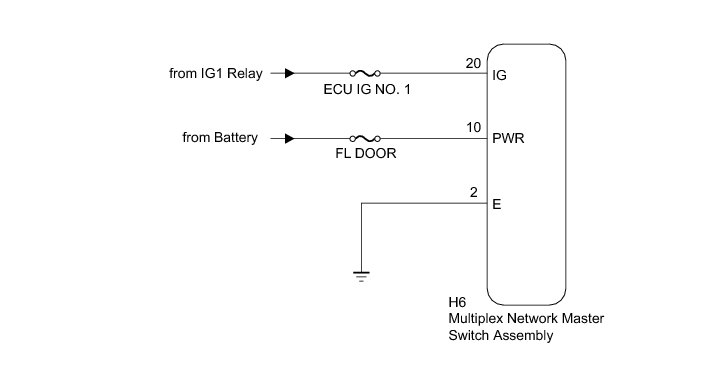

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK WIRE HARNESS (MULTIPLEX NETWORK MASTER SWITCH - BATTERY AND BODY GROUND)

(a) Disconnect the H6 connector.

(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance:





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
