System Description

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DESCRIPTION

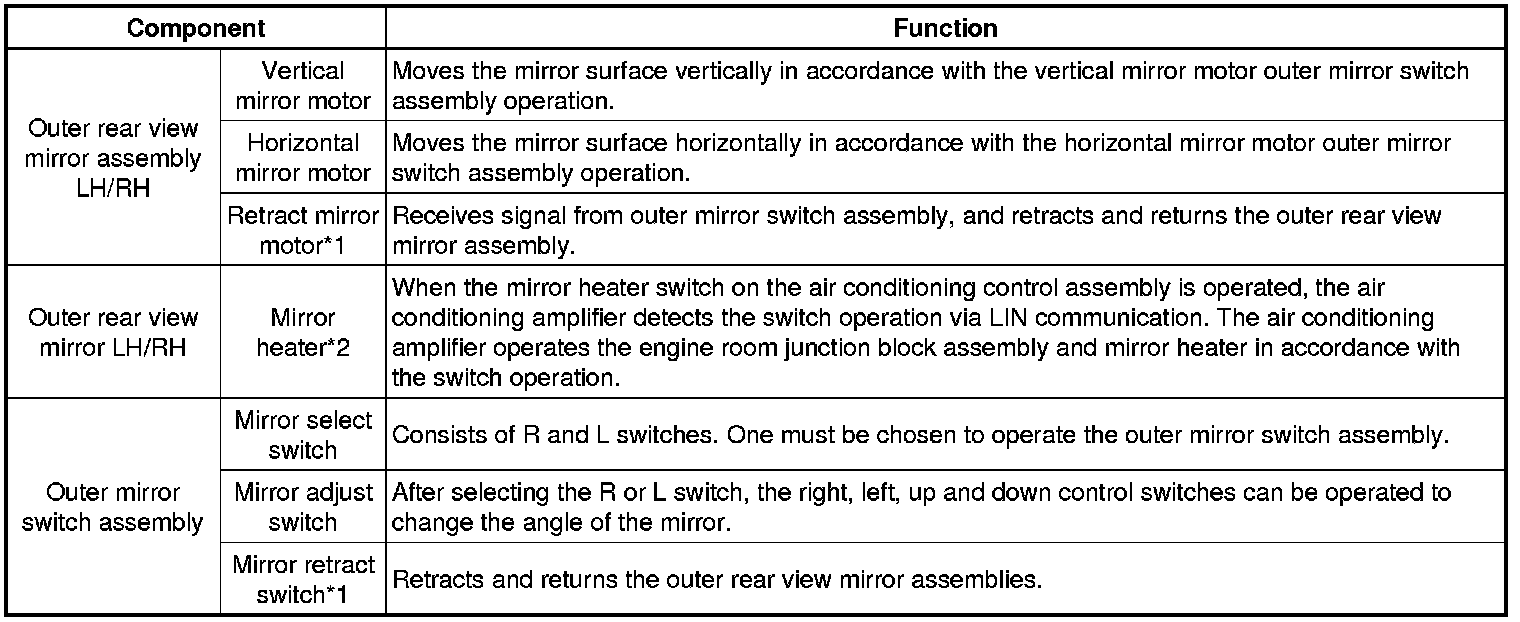

1. FUNCTION OF MAIN COMPONENT





* *1: w/o Daytime Running Light Control

* *2: w/ Mirror Heater

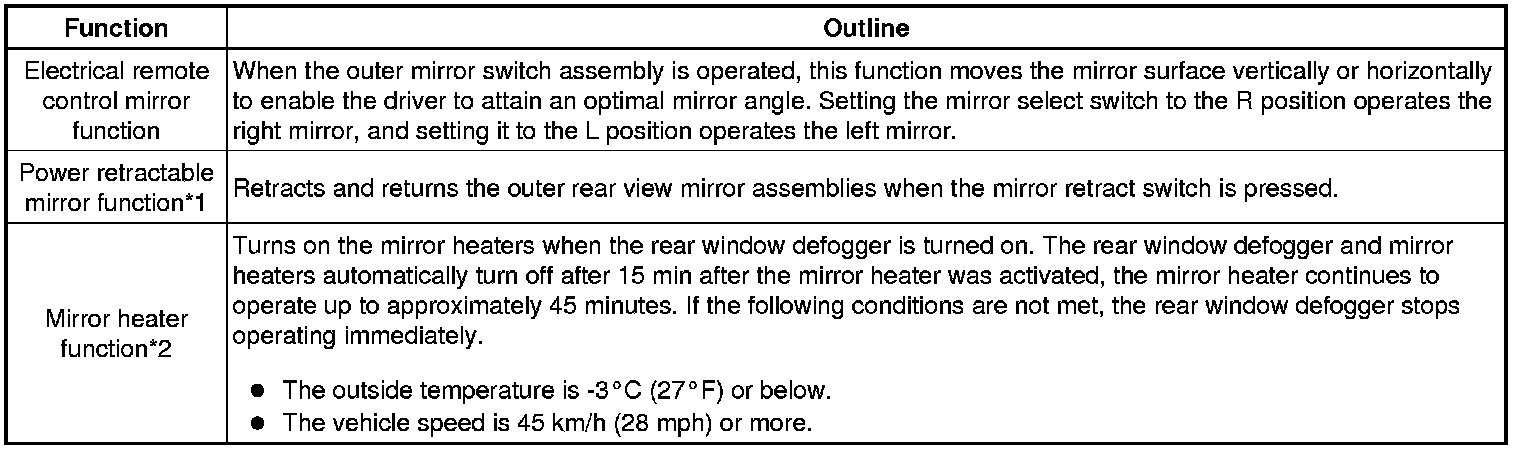

2. SYSTEM OPERATION

(a) The remote control mirror has the following features:





* *1: w/o Daytime Running Light Control

* *2: w/ Mirror Heater
