Maintenance Indicator Reset

Maintenance Information Resetting Procedure


Navigation Maintenance Item Setting (If equipped)
When the navigation system is turned on, the "Maintenance Reminder" screen displays when it is time to replace a part or certain components.

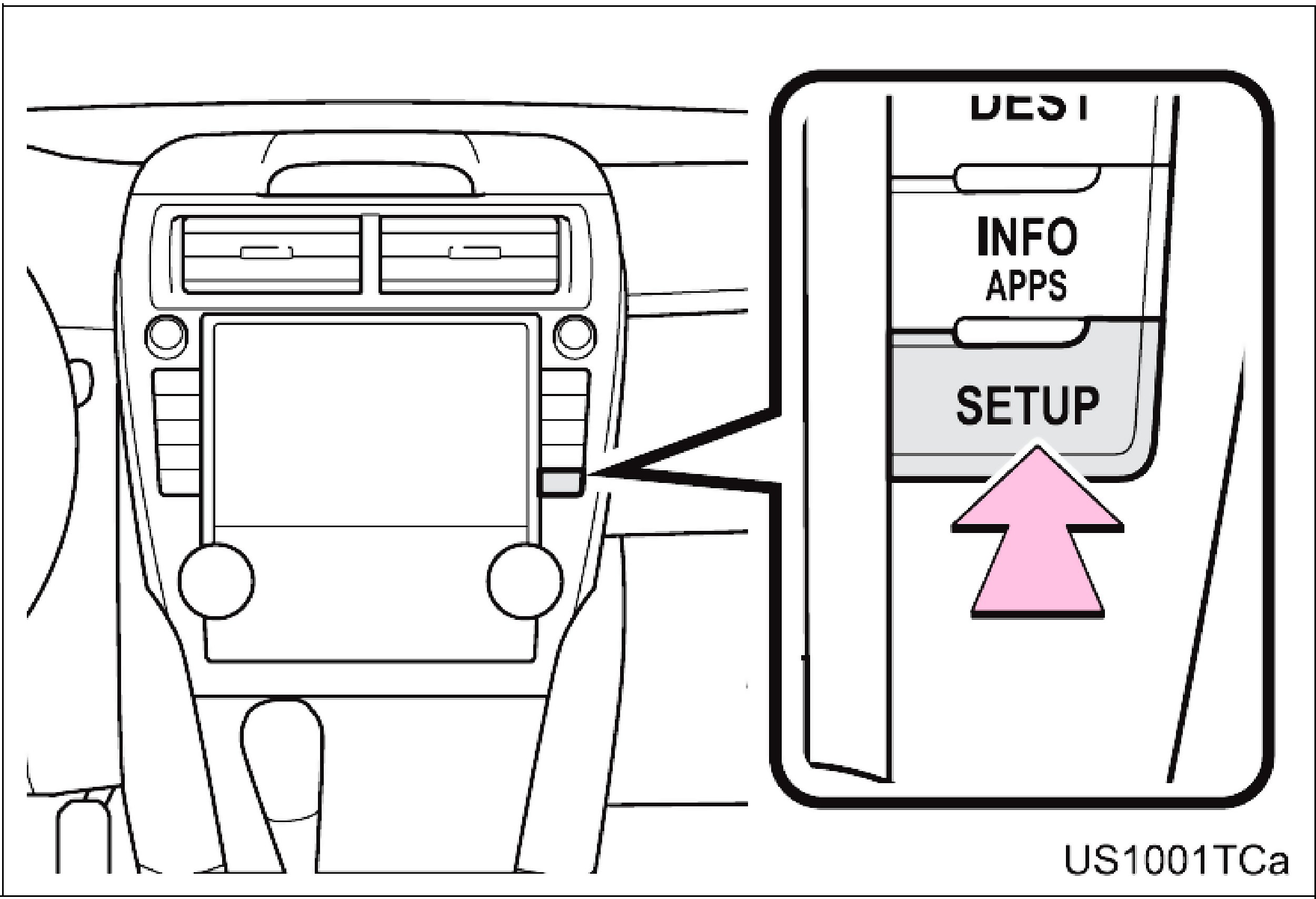

1. Press the "SETUP" button.

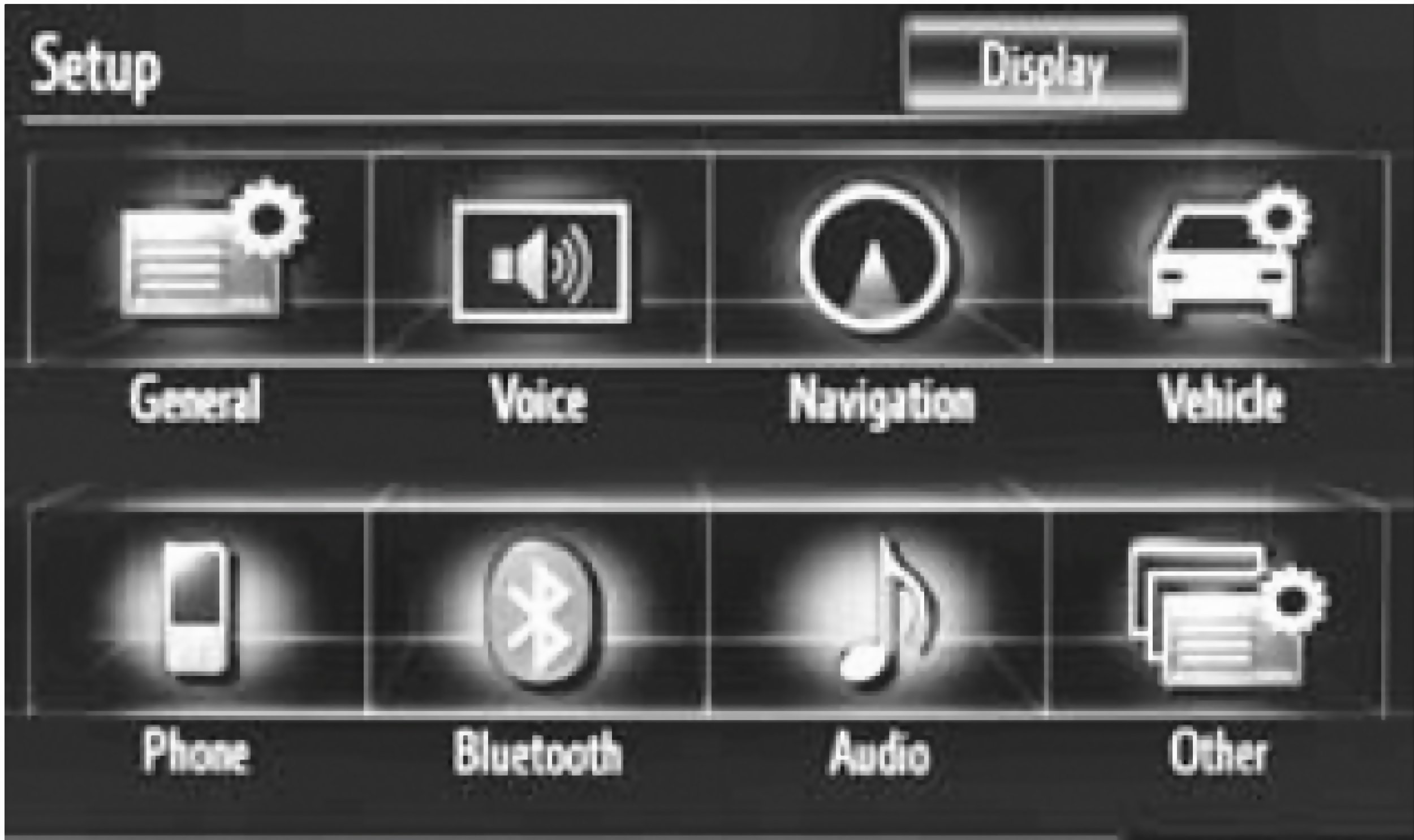

2. Touch "Vehicle" on the "Setup" screen.

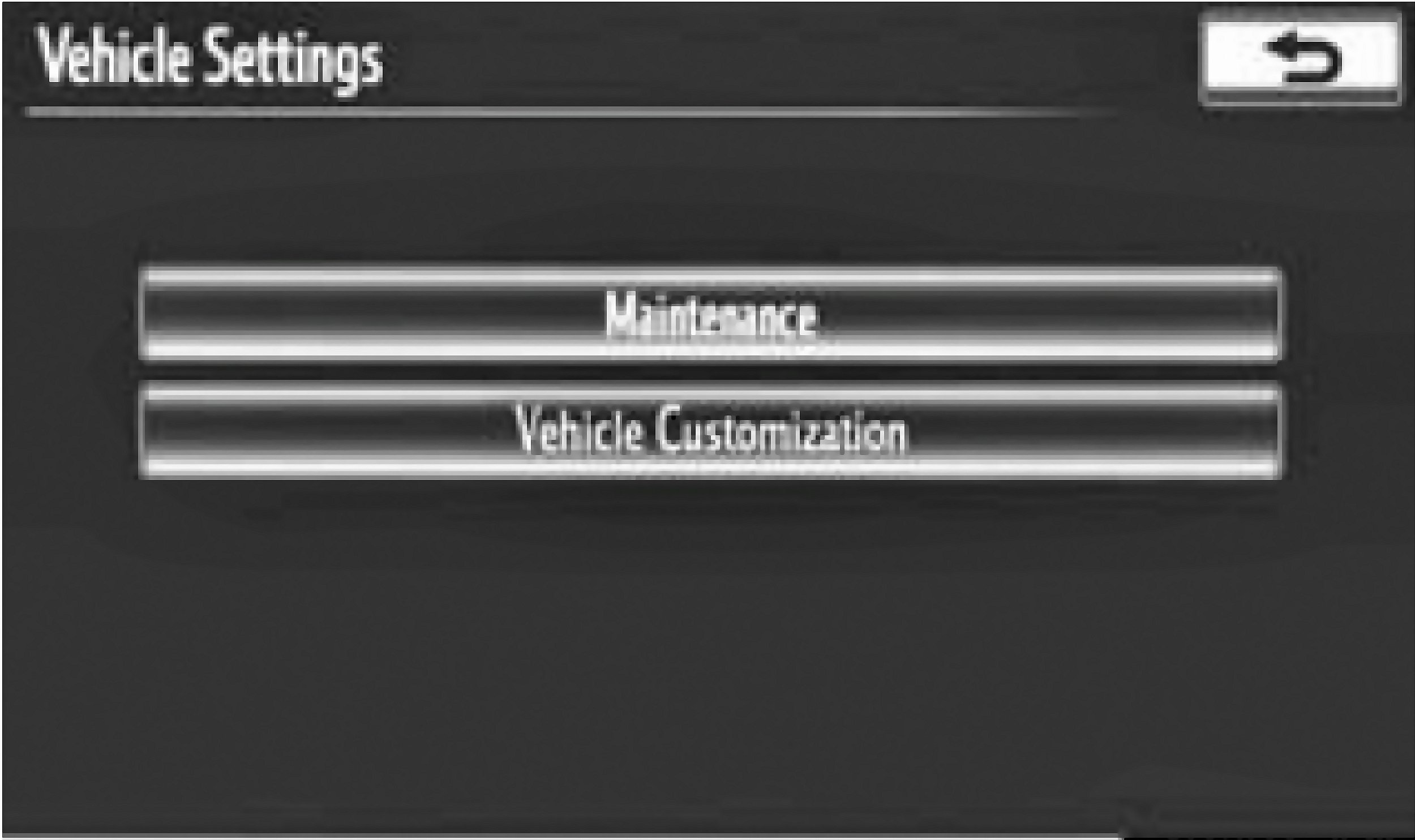

3. Touch "Maintenance" on the "Vehicle Settings" screen.

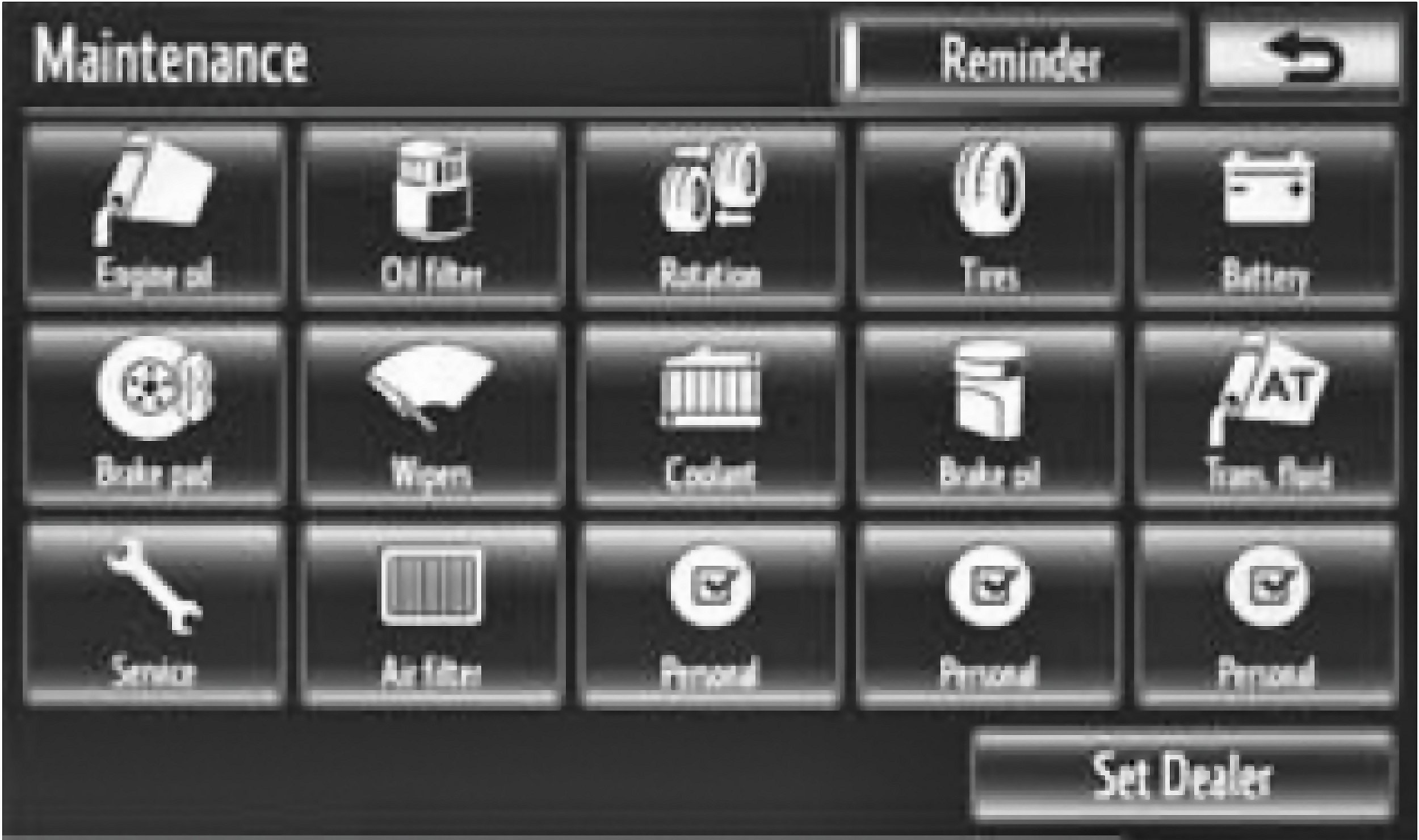

4. Touch the desired screen button.

- When the vehicle needs to be serviced, the screen button color will change to orange.

"Delete All": Touch to cancel all conditions which have been input.

"Reset All": Touch to reset the item which has satisfied a condition.

"Reminder": When this button is touched, the indicator is illuminated. The system is set to give maintenance information with the "Maintenance Reminder" screen.

"Date": Touch to input the next maintenance date.

"Distance": Touch to input the driving distance until the next maintenance check.

"Delete": Touch to cancel the date and distance conditions.

"Reset": Touch to reset the date and distance conditions.

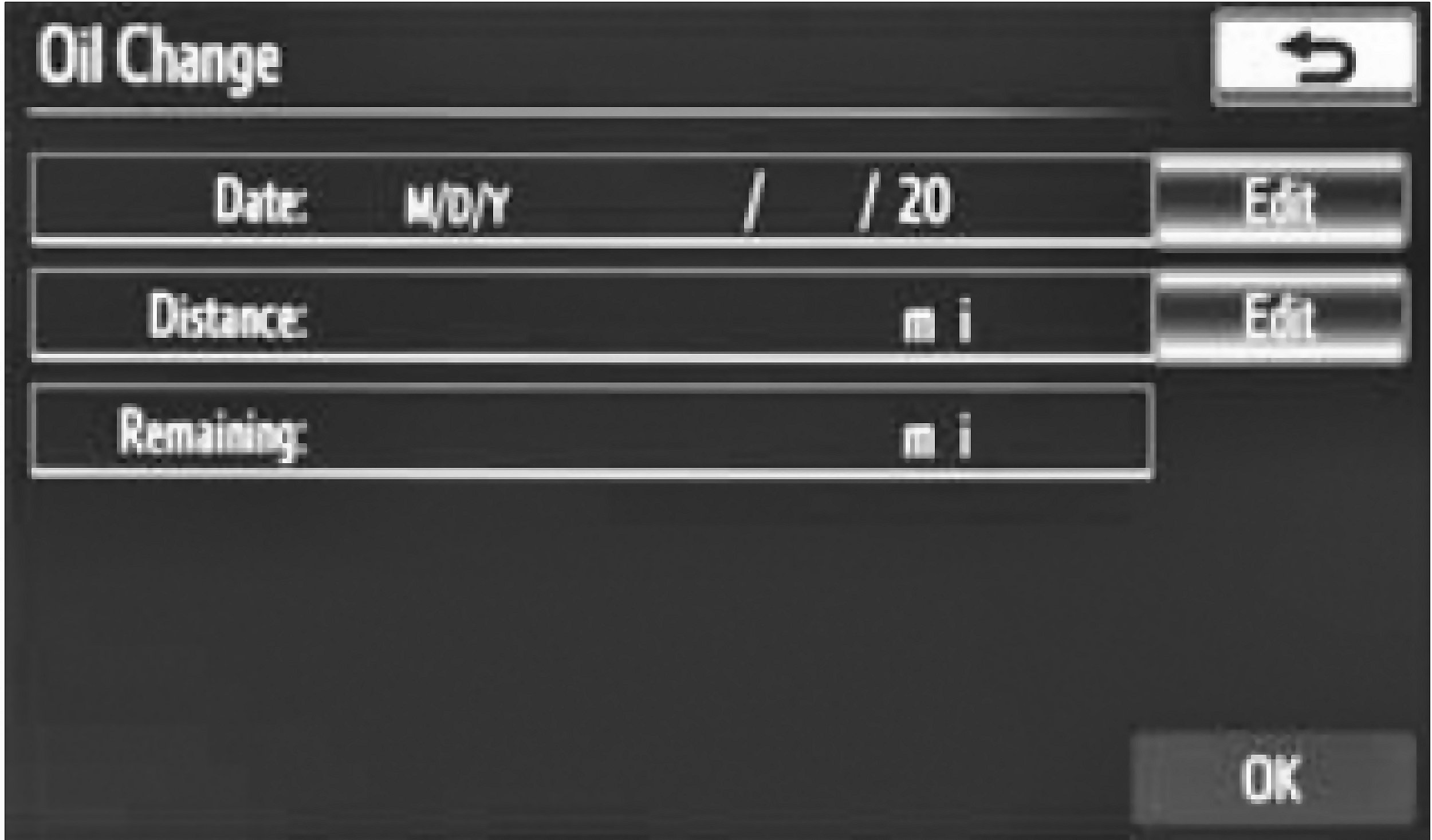

5. Input the conditions.

6. Touch "OK".
- The screen returns to the "Maintenance" screen.
