Torque Specifications





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

CAMSHAFT

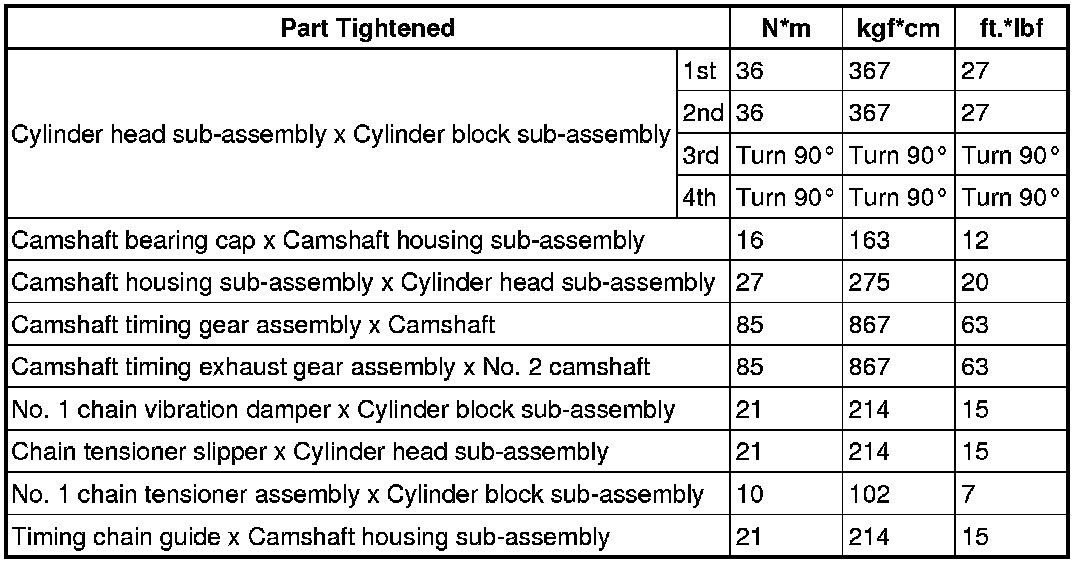

CYLINDER HEAD GASKET

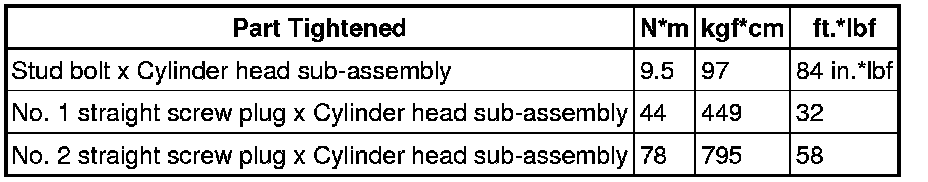

CYLINDER HEAD

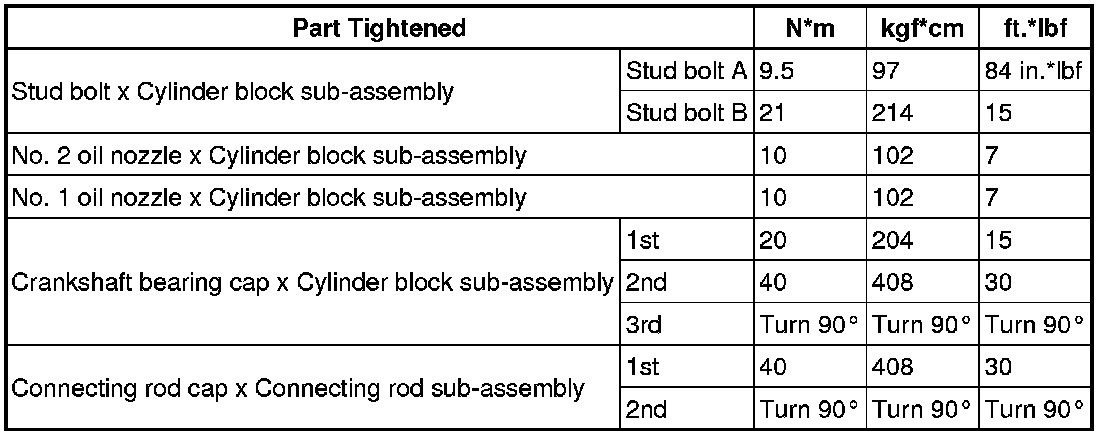

CYLINDER BLOCK





FRONT CRANKSHAFT OIL SEAL





REAR CRANKSHAFT OIL SEAL

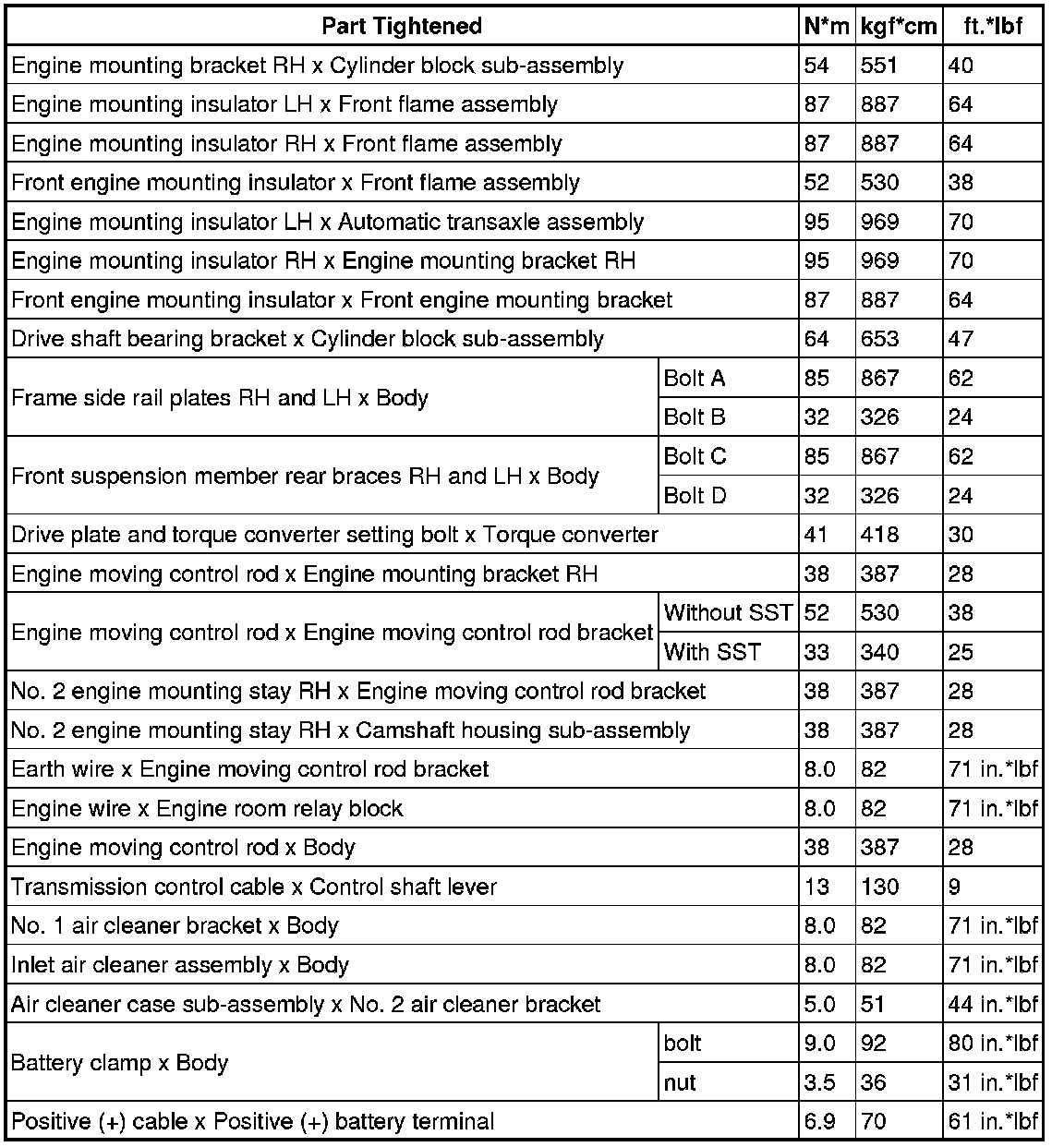

ENGINE ASSEMBLY

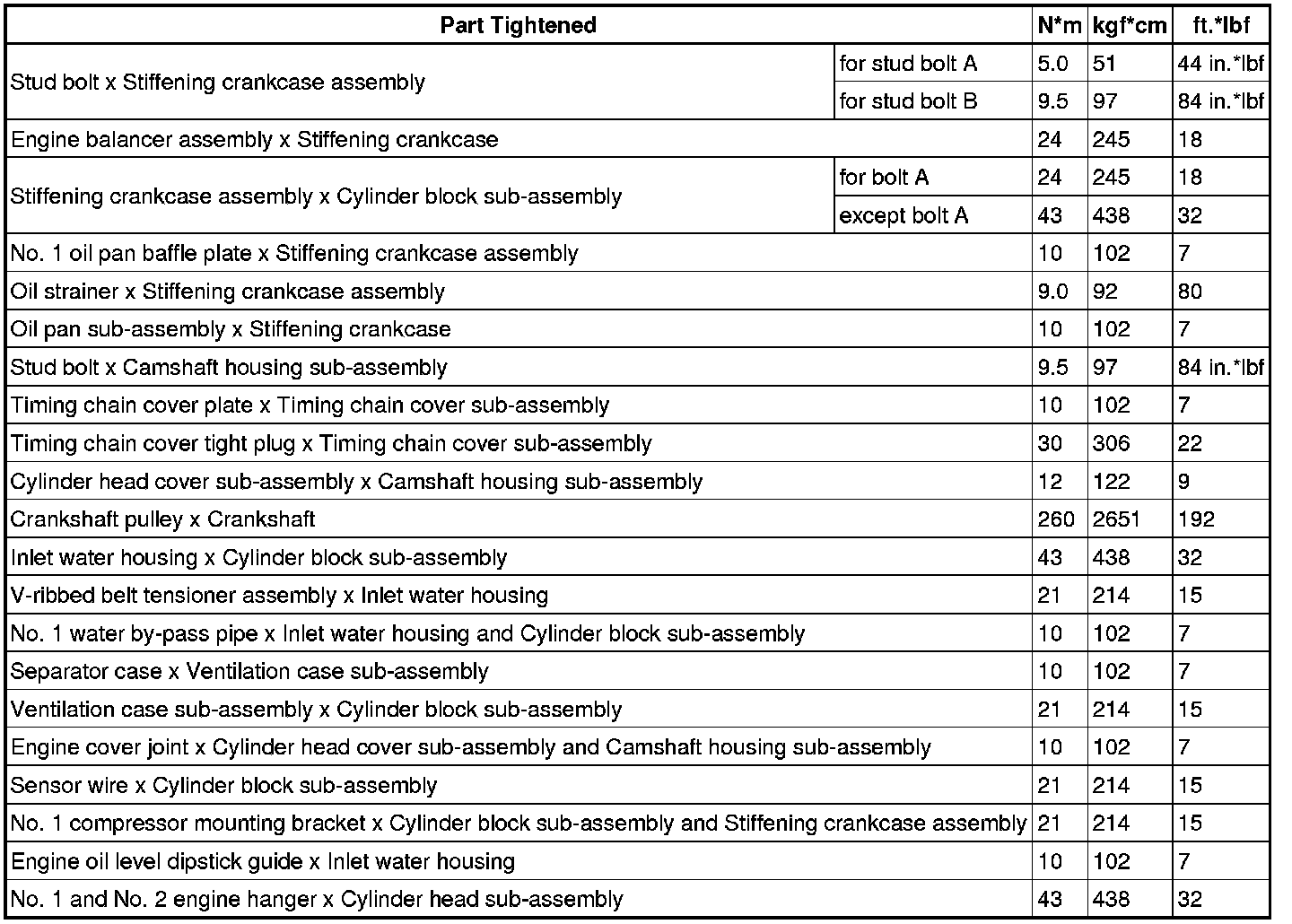

ENGINE UNIT
