Wiper and Washer Systems: Service Precautions

WIPER / WASHER: WIPER AND WASHER SYSTEM: PRECAUTION

1. PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable from the negative (-) battery terminal, initialize the following system(s) after the cable is reconnected:





2. IGNITION SWITCH EXPRESSIONS

The type of ignition switch used on this model differs according to the specification of the vehicle.

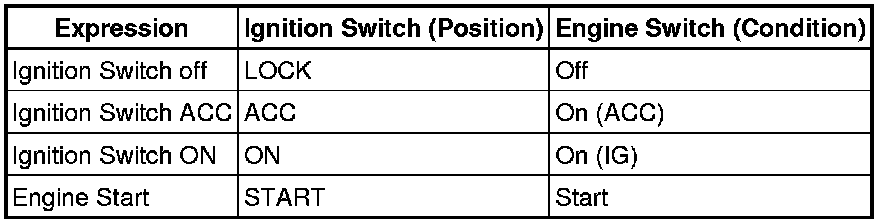

The expressions listed in the table below are used in this section.





3. PRECAUTION OF WASHER NOZZLE ADJUSTMENT

(a) Do not clean or adjust the washer nozzle with a safety pin, etc. because;

(1) the washer nozzle tip is made of resin and could be damaged.

(2) adjustment is not necessary because the washer nozzle is a spray type. If it is necessary to change the nozzle angle, replace the washer nozzle with one that has a different nozzle angle. Adjustments

(b) If the washer nozzle is clogged with wax, etc., remove it and clean the nozzle hole with a soft resin brush, etc.
