Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2012
>>
Camry L4-2.5L (2AR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Torque Specifications
Torque Specifications

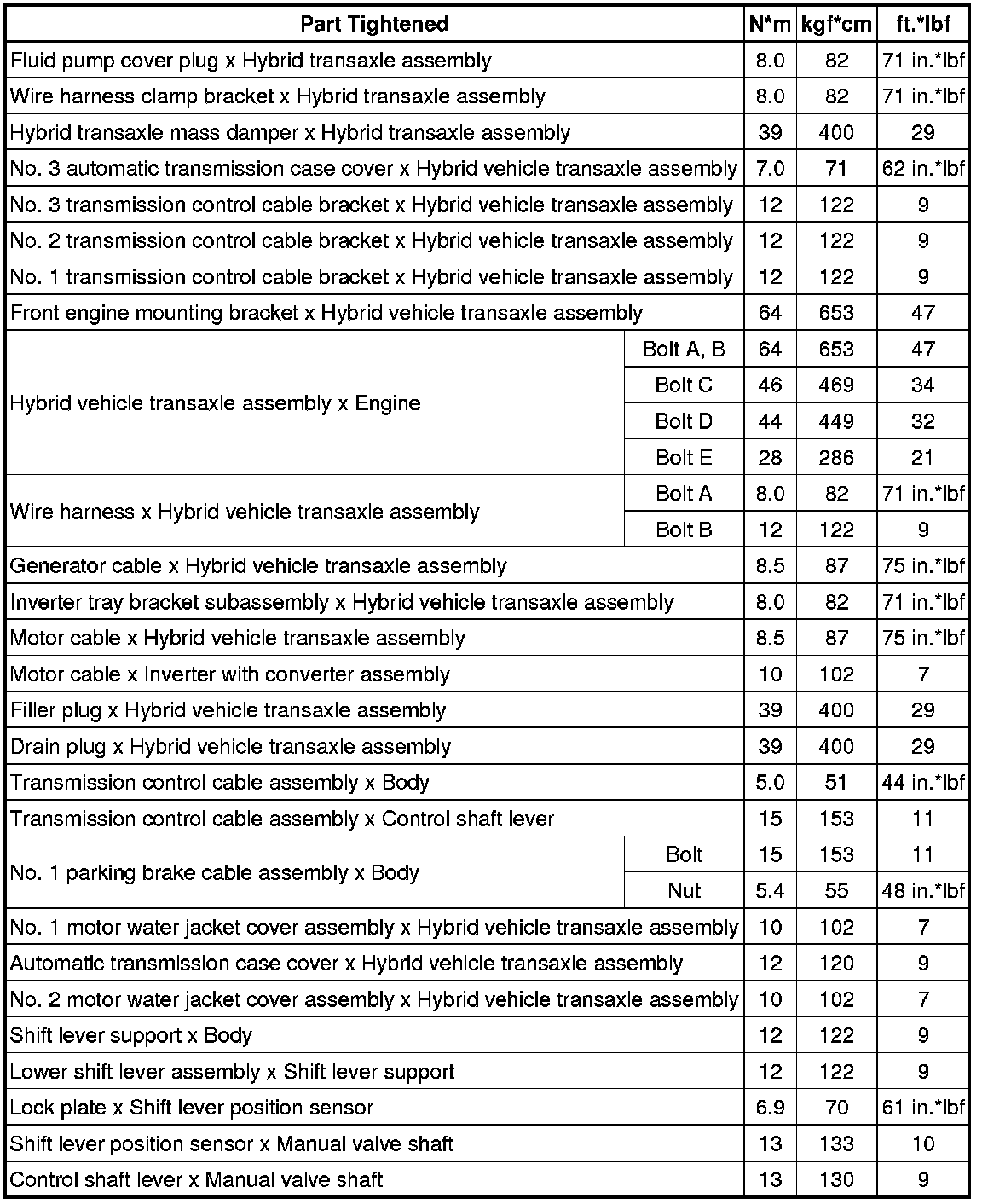

SPECIFICATIONS: P314 HYBRID TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS
