Emission Control Systems





SPECIFICATIONS: 2AR-FXE EMISSION CONTROL: TORQUE SPECIFICATIONS

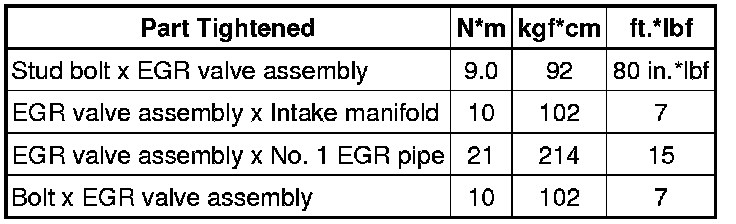

EGR VALVE

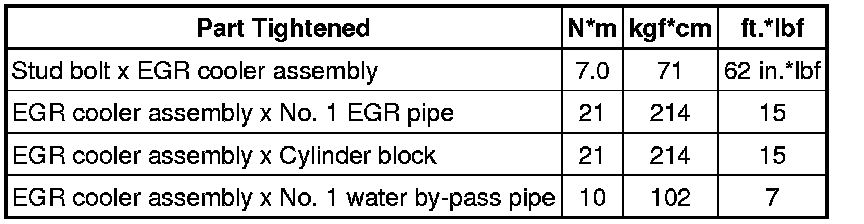

EGR COOLER






VACUUM SENSOR

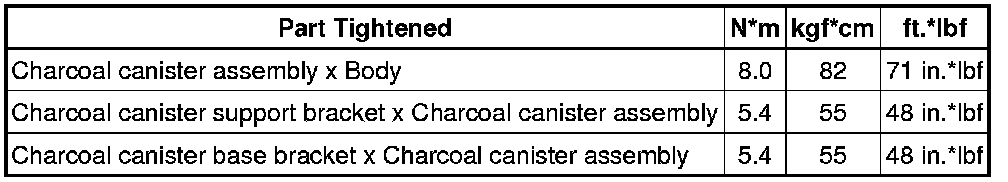

CANISTER






PCV VALVE
