Disassembly

HEATING / AIR CONDITIONING: COMPRESSOR (for 2GR-FE): DISASSEMBLY

1. REMOVE COOLER BRACKET

(a) Disconnect the connector.





(b) Disengage the clamp.

(c) Remove the screw and cooler bracket.

2. REMOVE MAGNET CLUTCH ASSEMBLY

(a) Clamp the cooler compressor in a vise between aluminum plates.

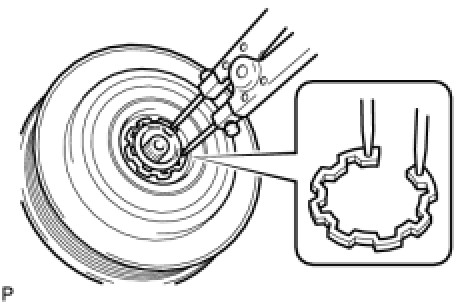

(b) Using SST, hold the magnet clutch hub.

SST : 07112-76060

(c) Remove the bolt, magnet clutch hub and magnet clutch washer(s).

HINT
There is no set number of magnet clutch washers that are used for adjusting clutch clearance.

(d) Using a snap ring expander, remove the snap ring and magnet clutch rotor.





NOTICE:
Do not damage the seal cover of the bearing when removing the snap ring.

(e) Disengage the clamp.

(f) Using a snap ring expander, remove the snap ring and magnet clutch stator.
