2GR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST - (Continued)

12. Air Fuel Ratio Control 2 (Gas AF O2 Sensor)

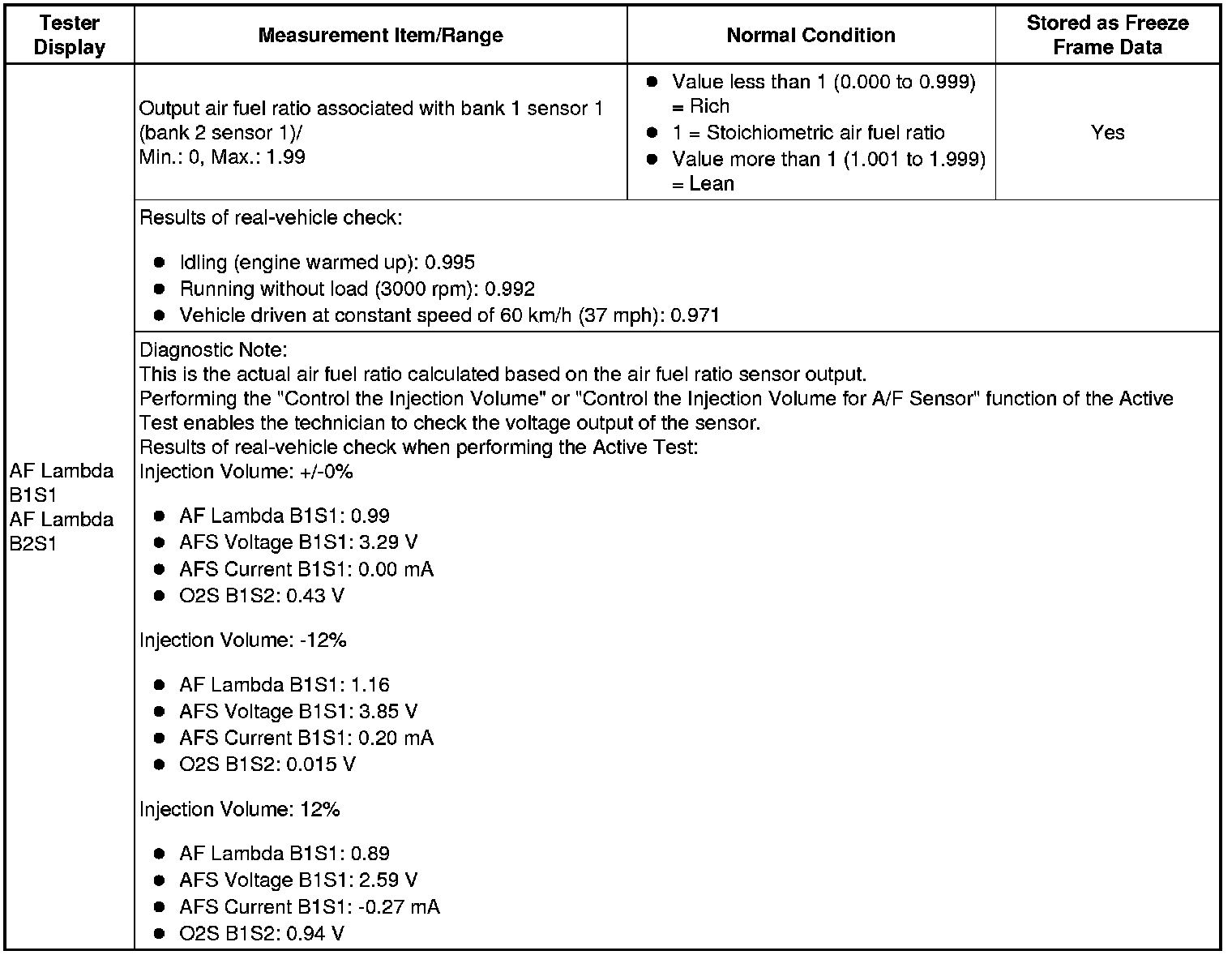

AF Lambda B1S1, B2S1

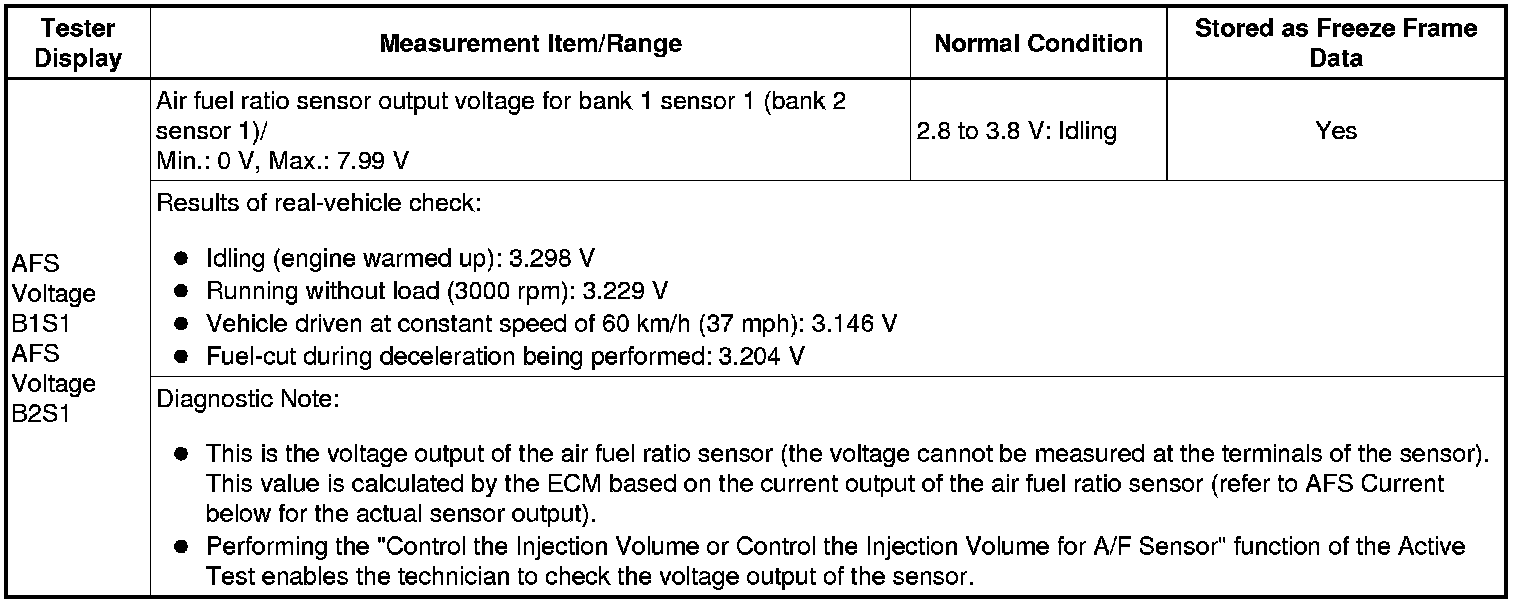

AFS Voltage B1S1, B2S1





AFS Current B1S1, B2S1

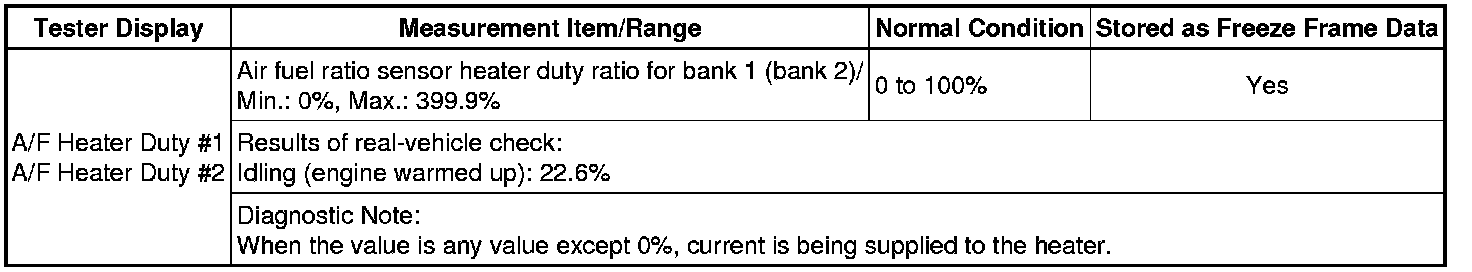

A/F Heater Duty #1, #2

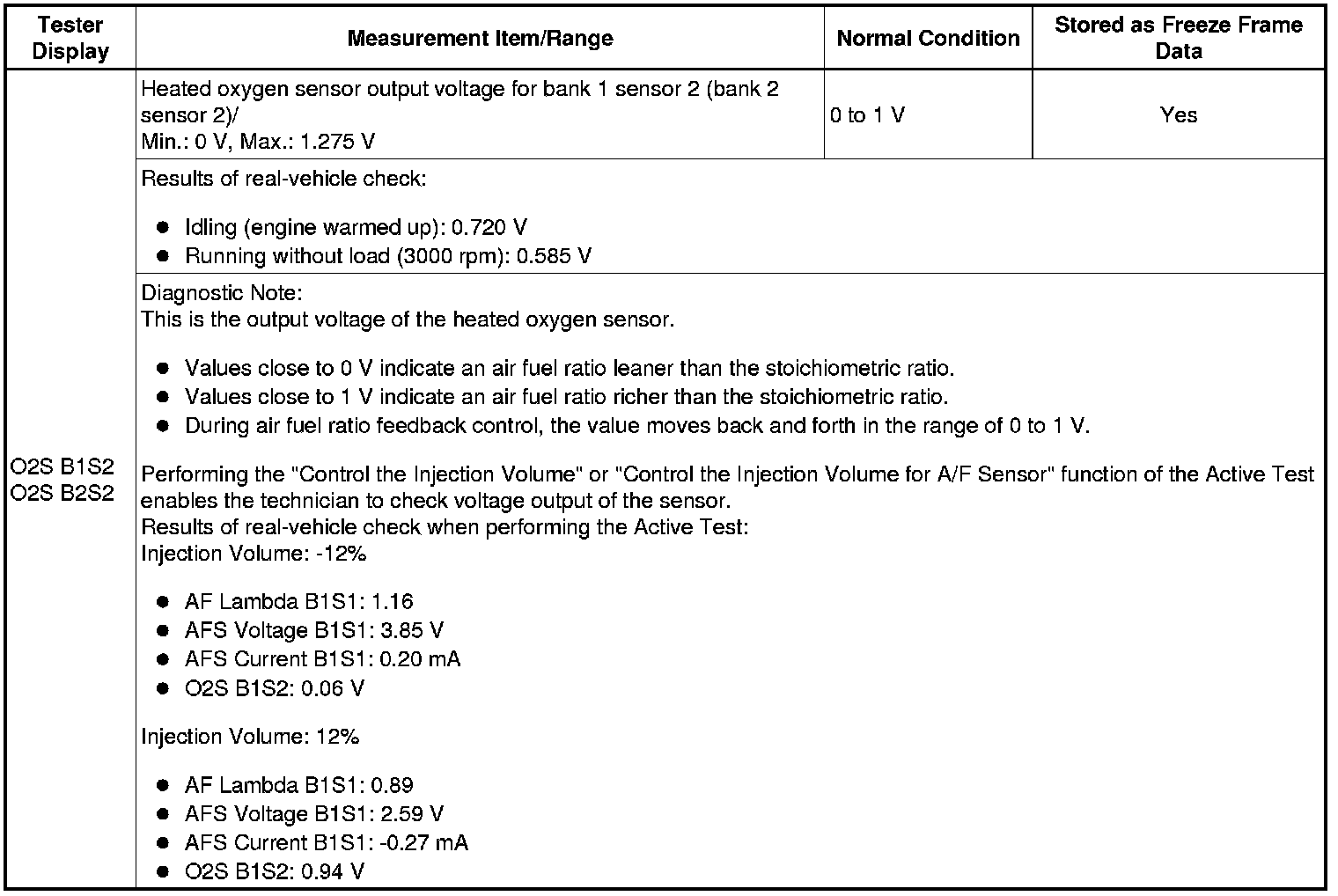

O2S B1S2, B2S2





O2S Impedance B1S2, B2S2





O2 Heater B1S2, B2S2

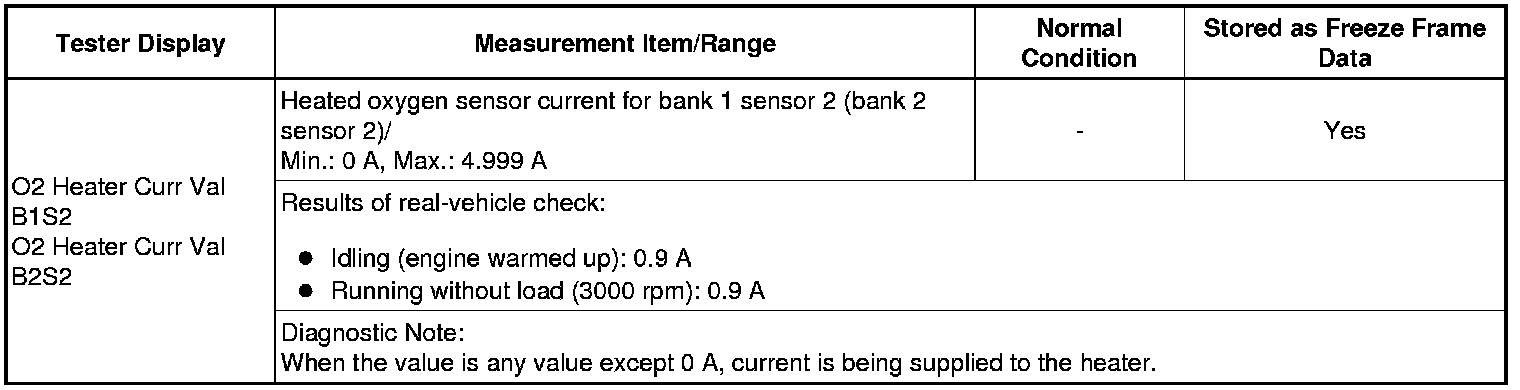

O2 Heater Curr Val B1S2, B2S2

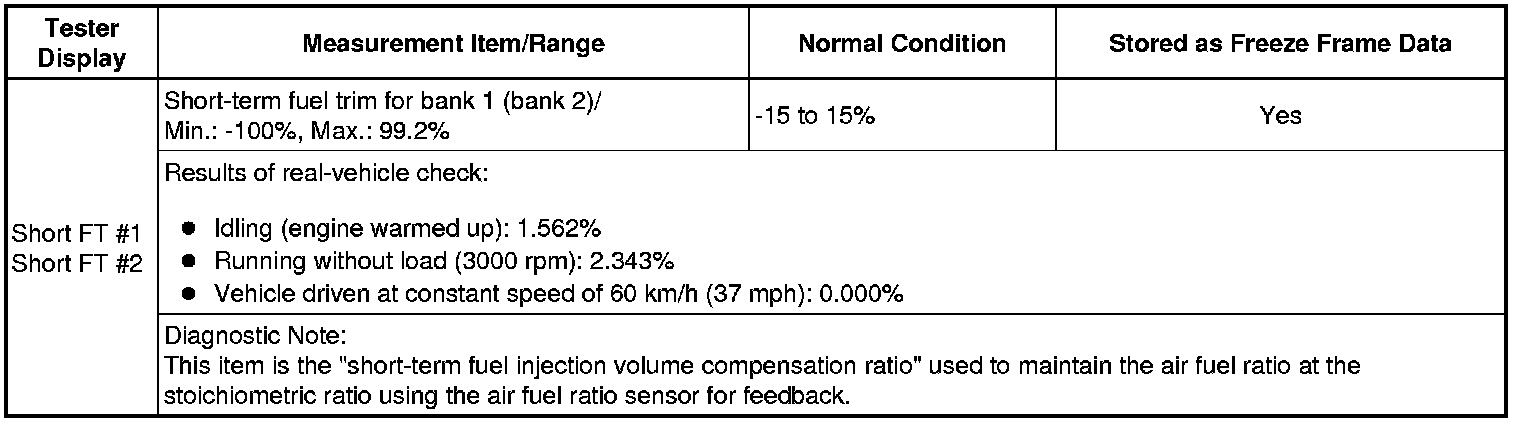

Short FT #1, #2





Long FT #1, #2

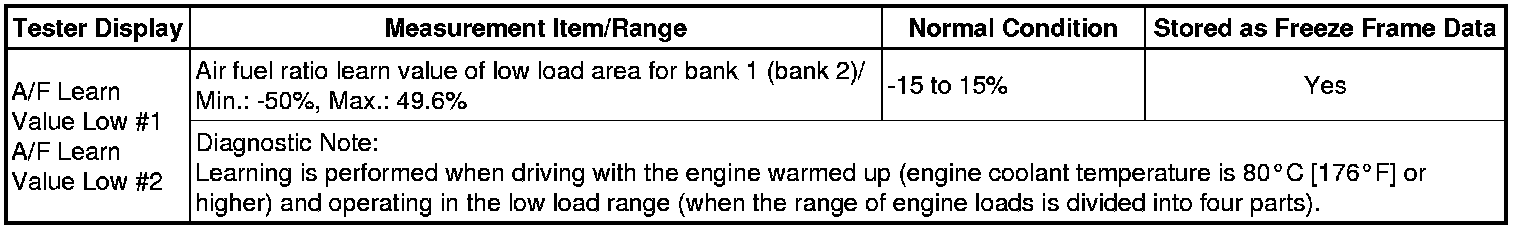

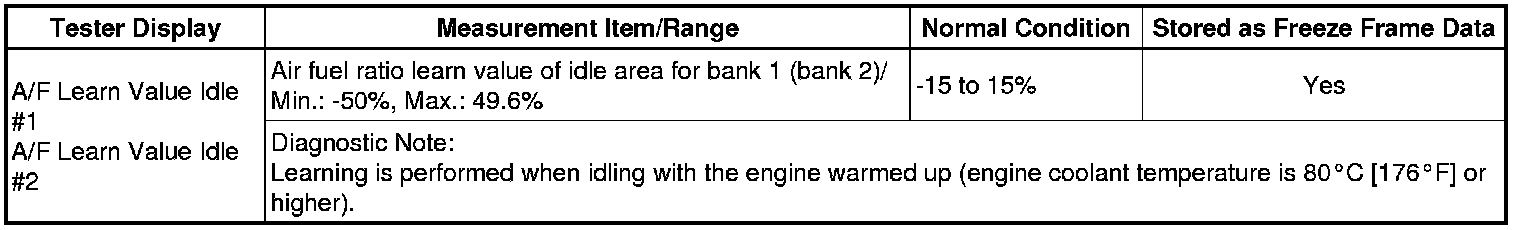

A/F Learn Value Idle #1, #2





A/F Learn Value Low #1, #2

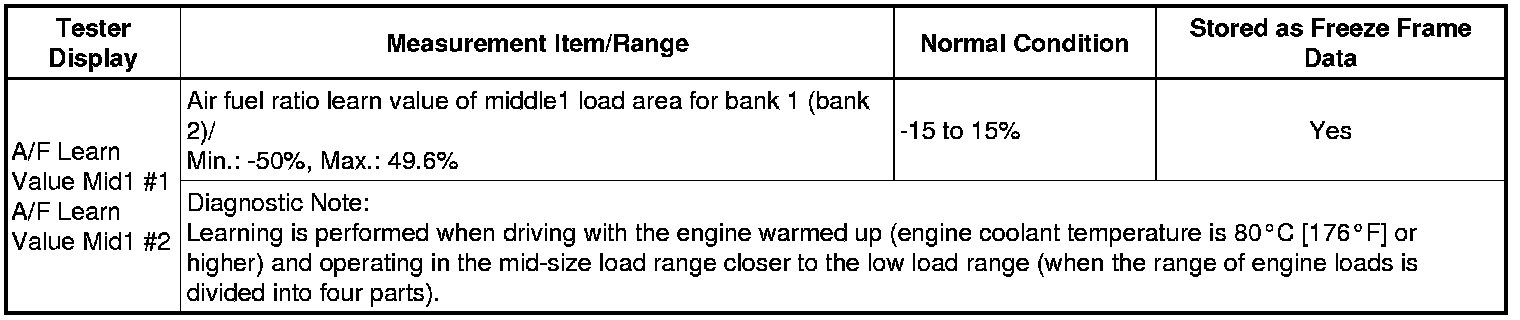

A/F Learn Value Mid1 #1, #2





A/F Learn Value Mid2 #1, #2





A/F Learn Value High #1, #2

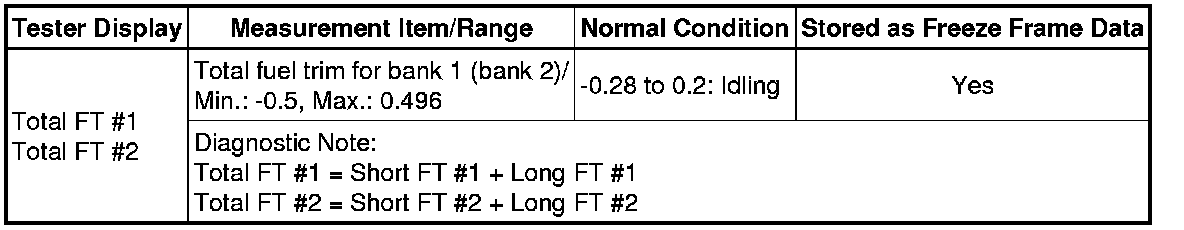

Total FT #1, #2





Fuel System Status #1, #2





13. Ignition System (Ignition)

IGN Advance

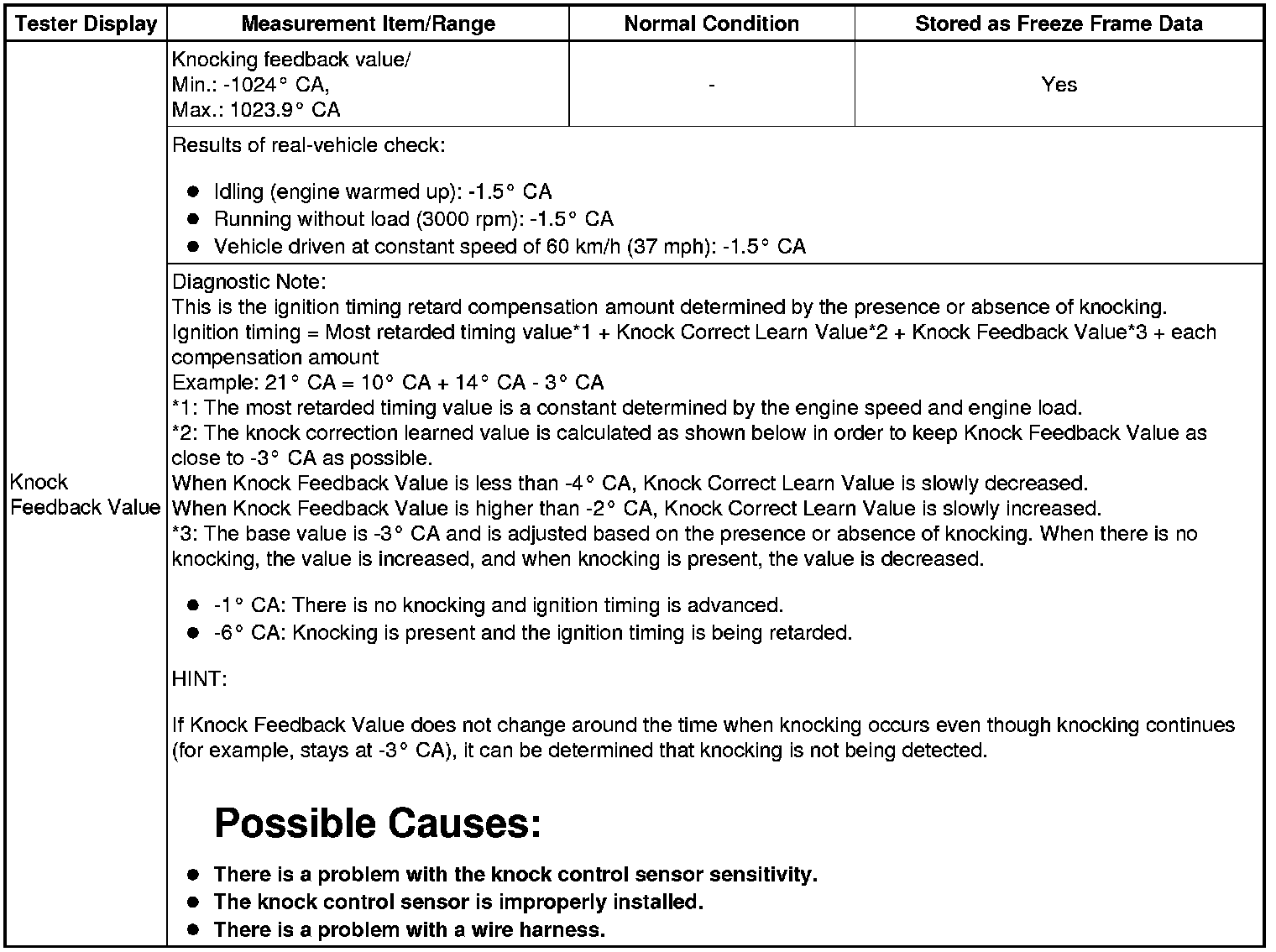

Knock Feedback Value







Knock Correct Learn Value





Idle Spark Advn Ctrl #1 to #6





14. Intake Control (Gas Intake Control)

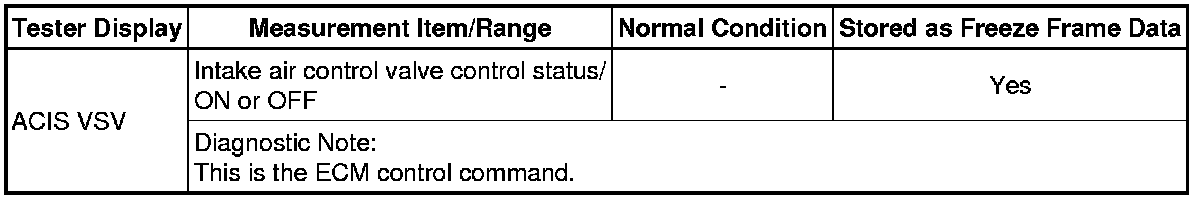

ACIS VSV

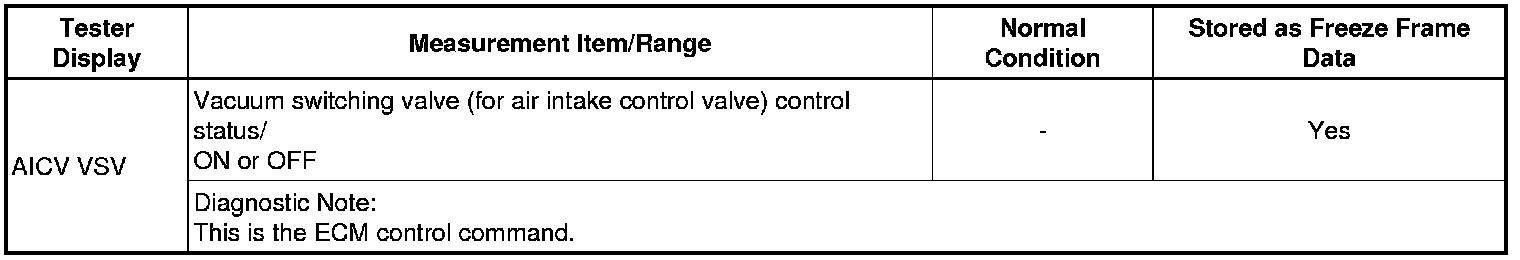

AICV VSV





15. VVT Control 1 (All Data)

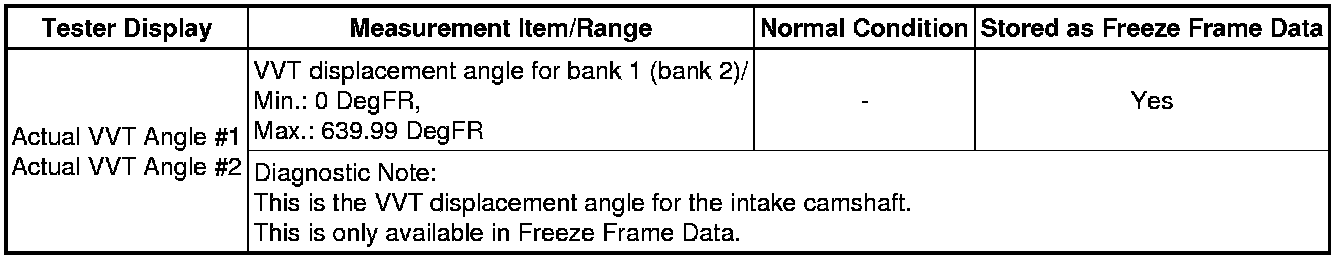

Actual VVT Angle #1, #2





Actual VVT Ex Angle #1, #2





16. VVT Control 2 (Gas Valve Control)

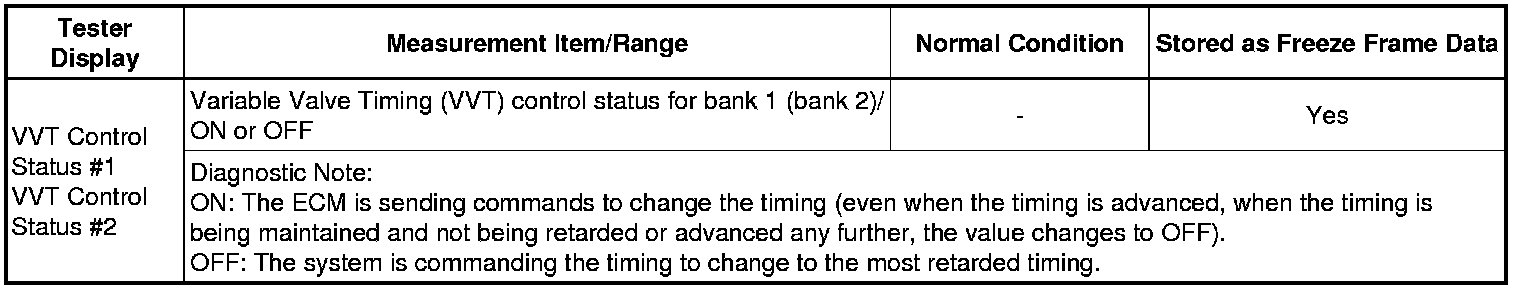

VVT Control Status #1, #2





VVT Advance Fail

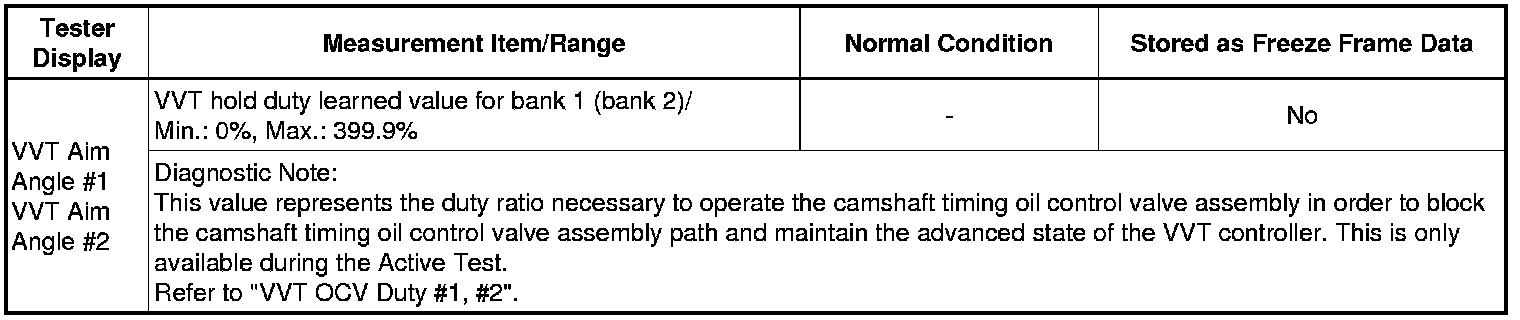

VVT Aim Angle #1, #2





VVT Change Angle #1, #2

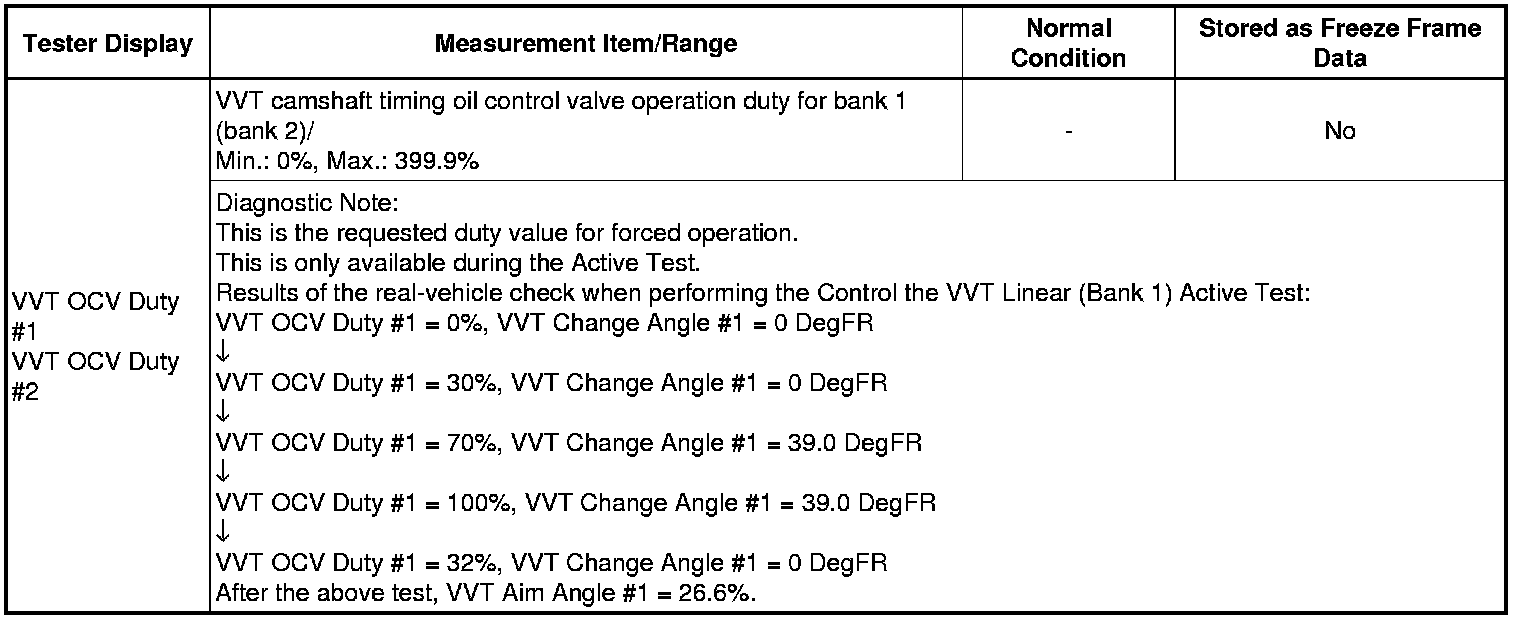

VVT OCV Duty #1, #2

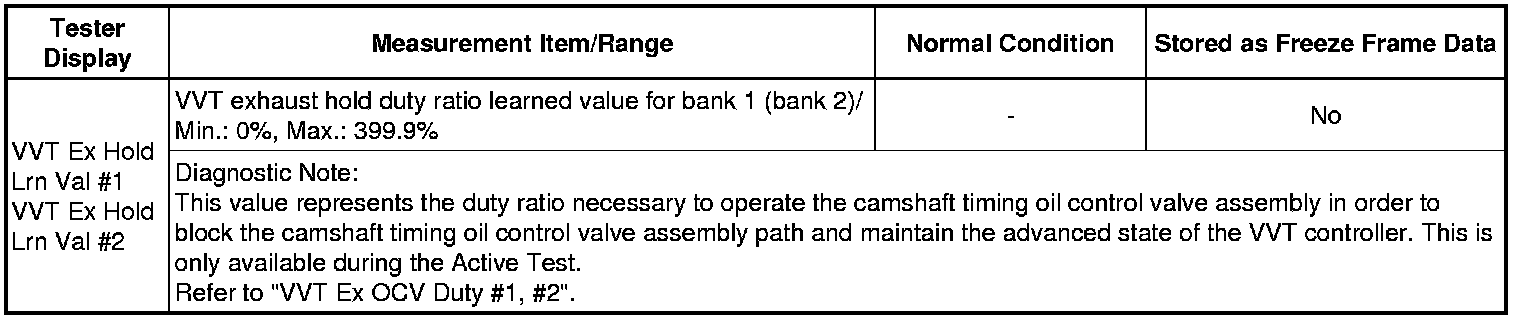

VVT Ex Hold Lrn Val #1, #2

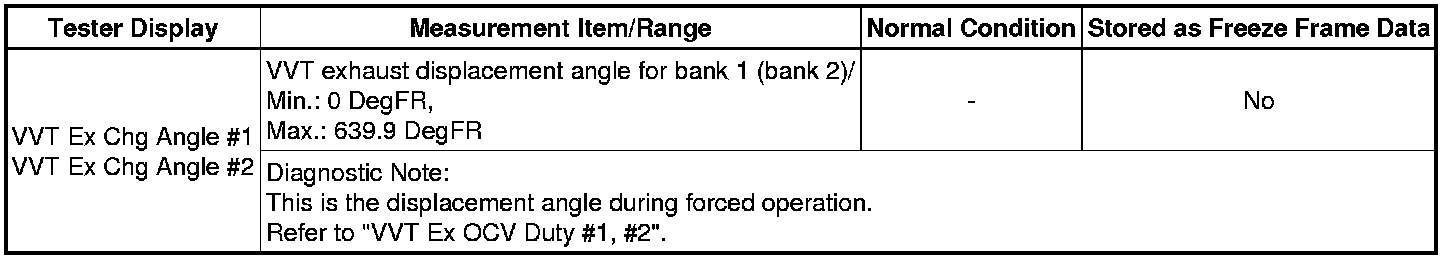

VVT Ex Chg Angle #1, 2

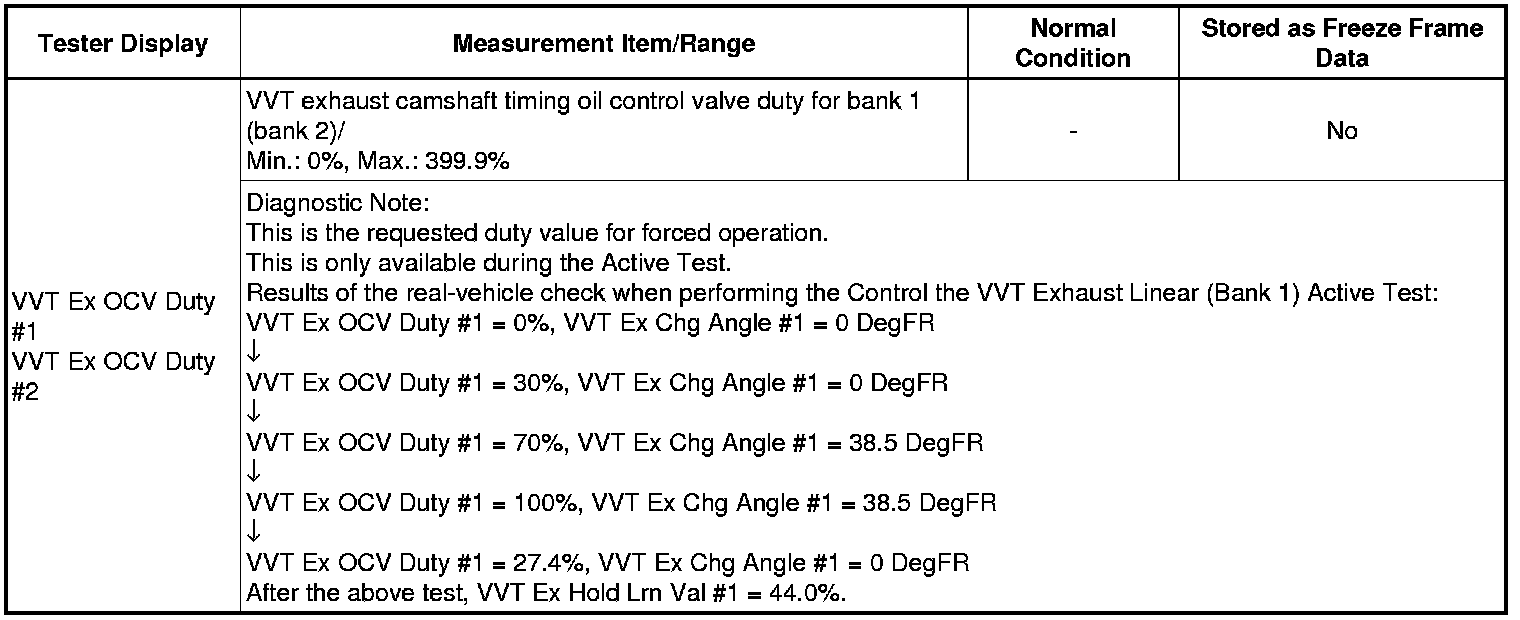

VVT Ex OCV Duty #1, #2





17. Various Vehicle Condition 2 (All Data)

VN Turbo Type





18. Catalyst (Gas CAT Converter)

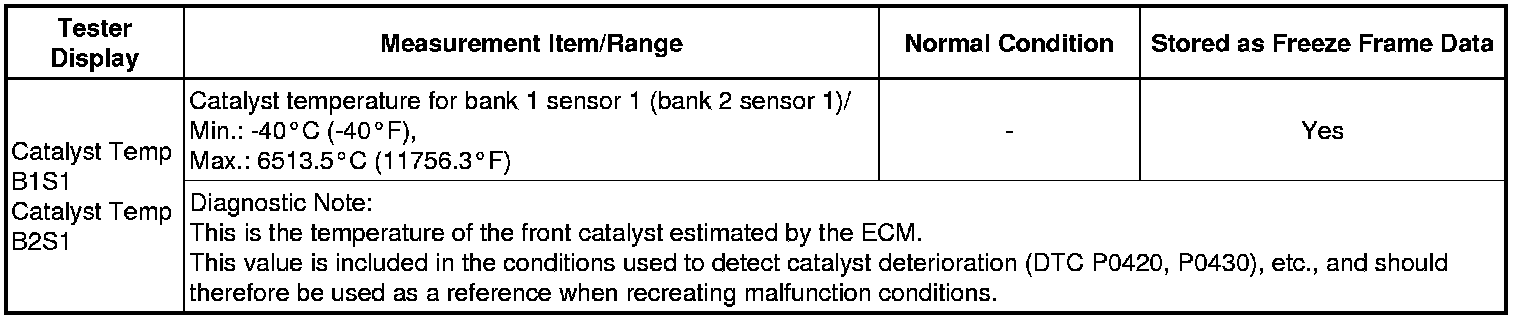

Catalyst Temp B1S1, B2S1

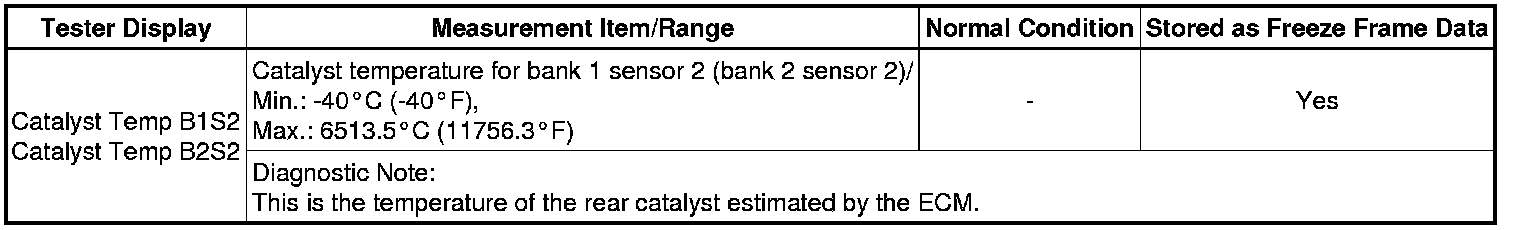

Catalyst Temp B1S2, B2S2





19. Various Vehicle Conditions 3 (All Data)

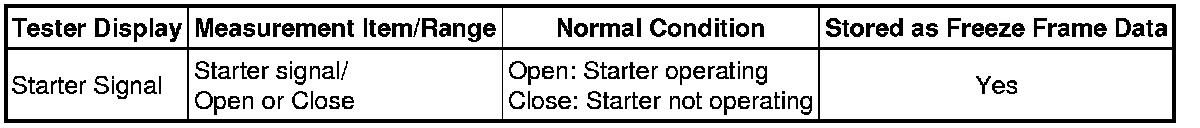

Starter Signal

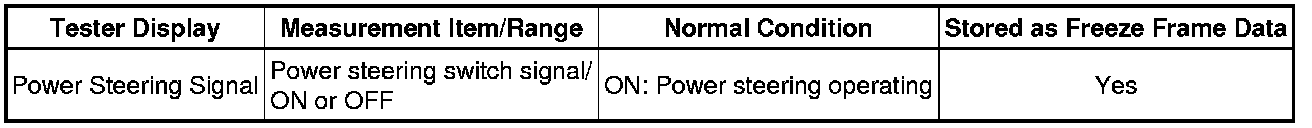

Power Steering Signal

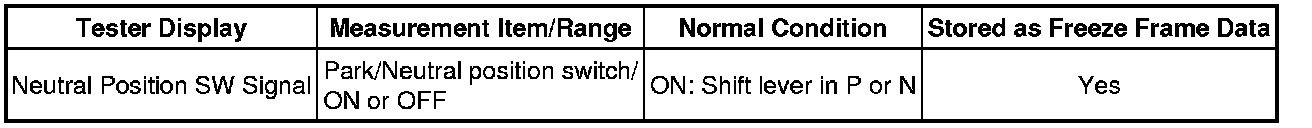

Neutral Position SW Signal





Stop Light Switch

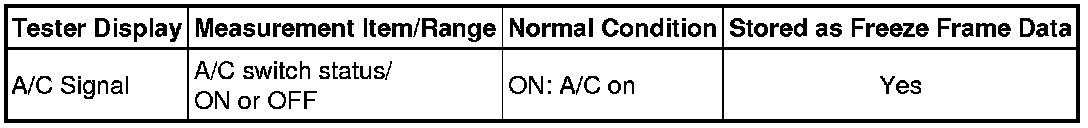

A/C Signal

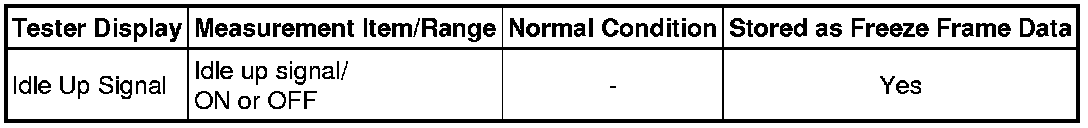

Idle Up Signal

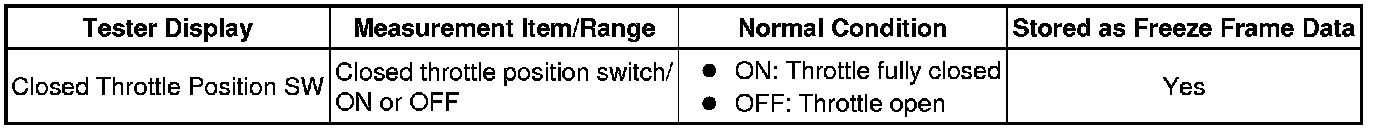

Closed Throttle Position SW





Fuel Cut Condition

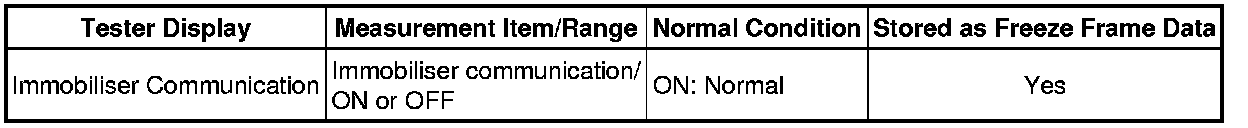

Immobiliser Communication
