Part 3

2GR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST - (Continued)

20. Check Mode (Check Mode)

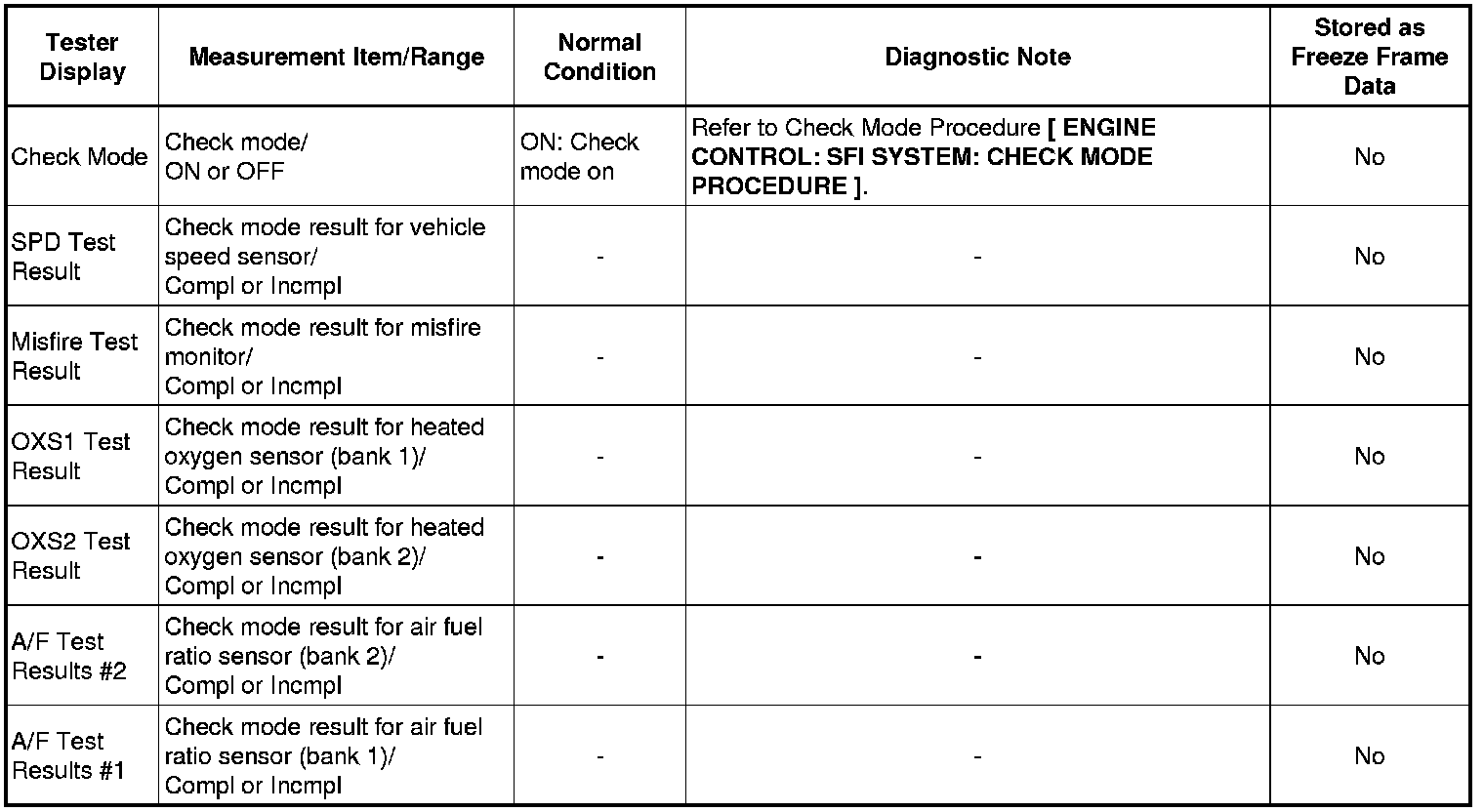

Check Mode





21. Test Result (Monitor Status)

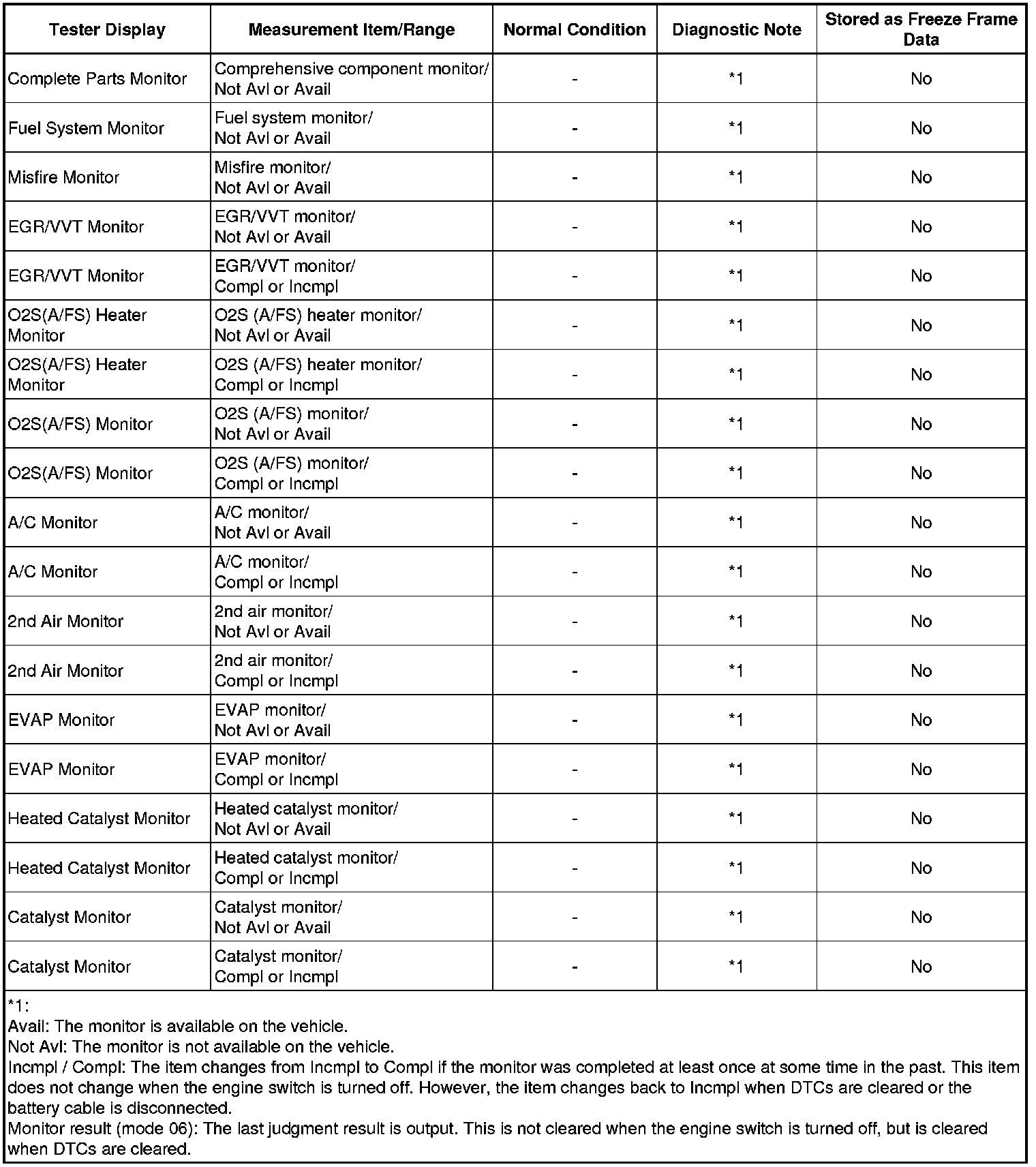

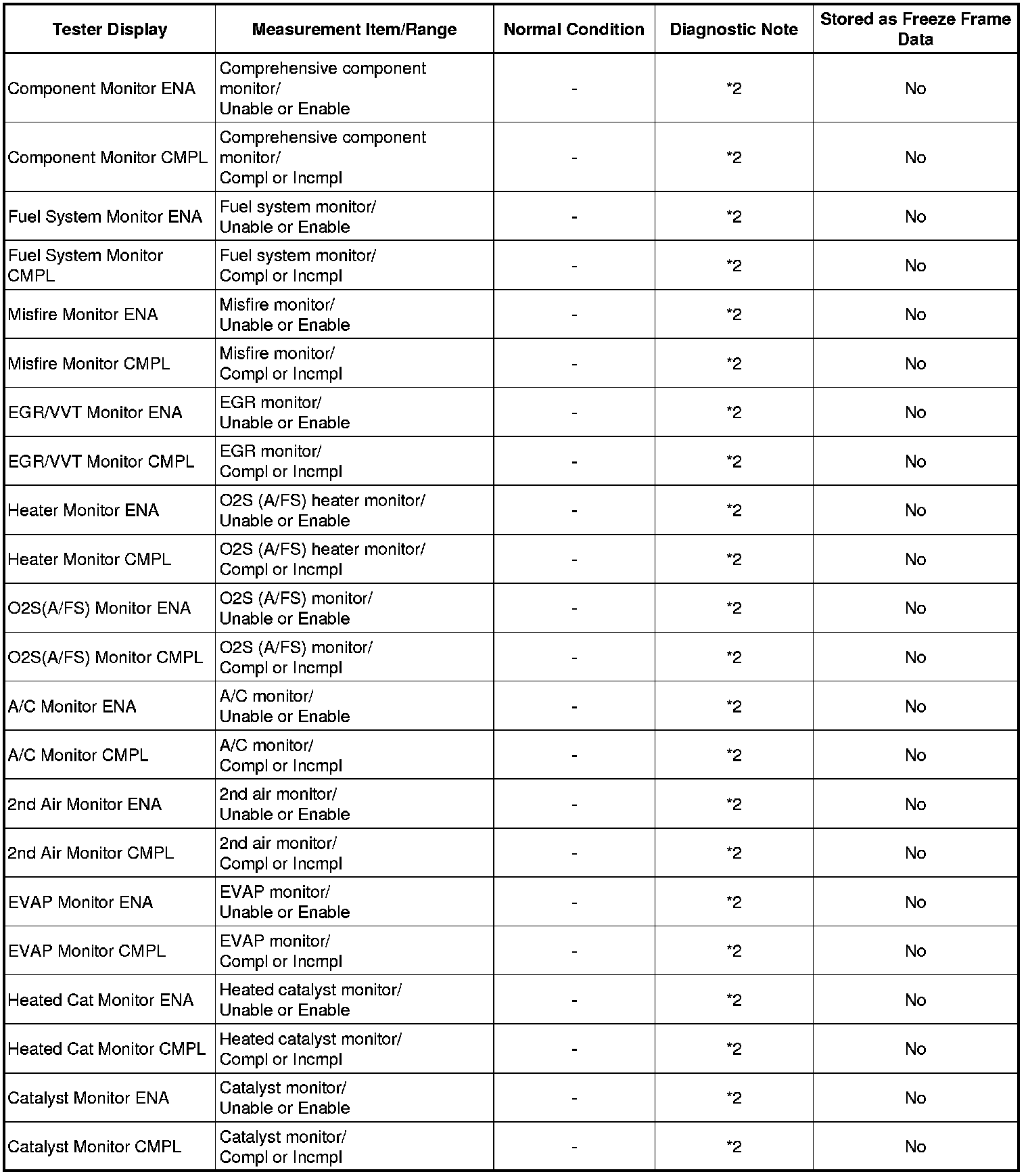

Monitor Information 1

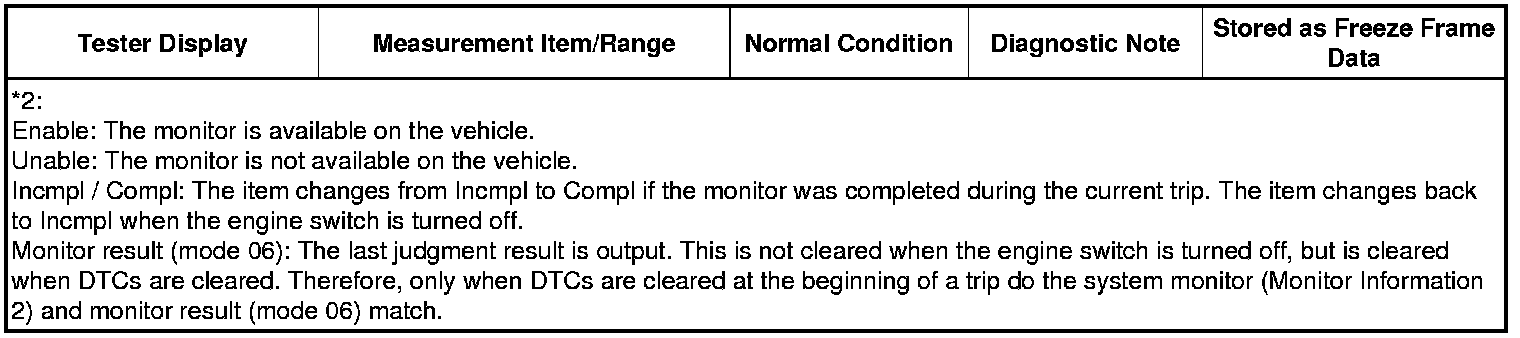

Monitor Information 2









22. Various Vehicle Conditions 4 (All Data)

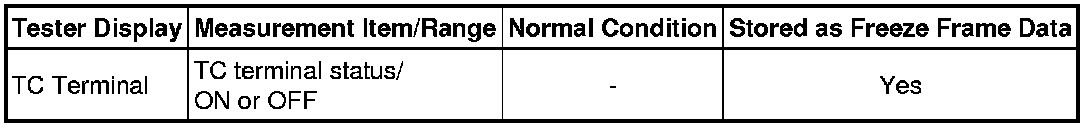

TC Terminal

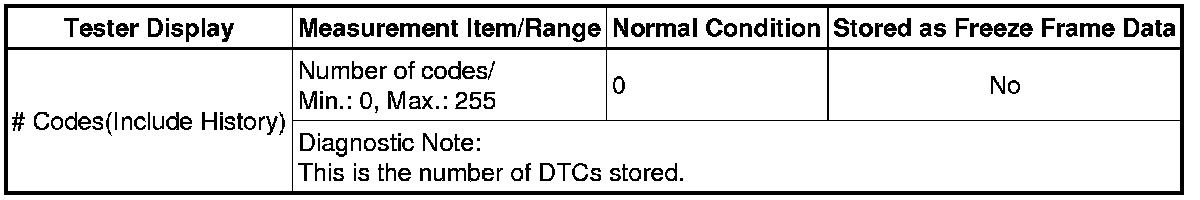

# Codes(Include History)

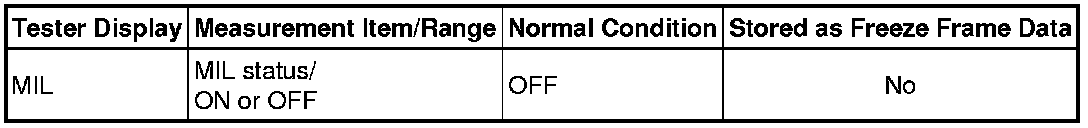

MIL





MIL ON Run Distance

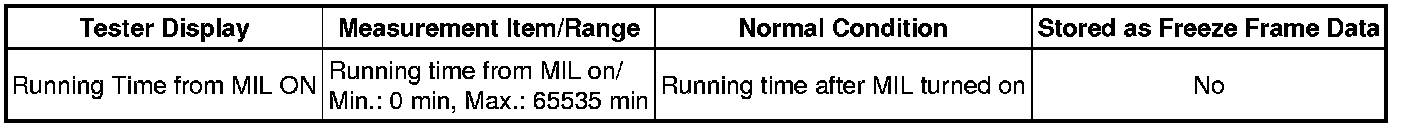

Running Time from MIL ON

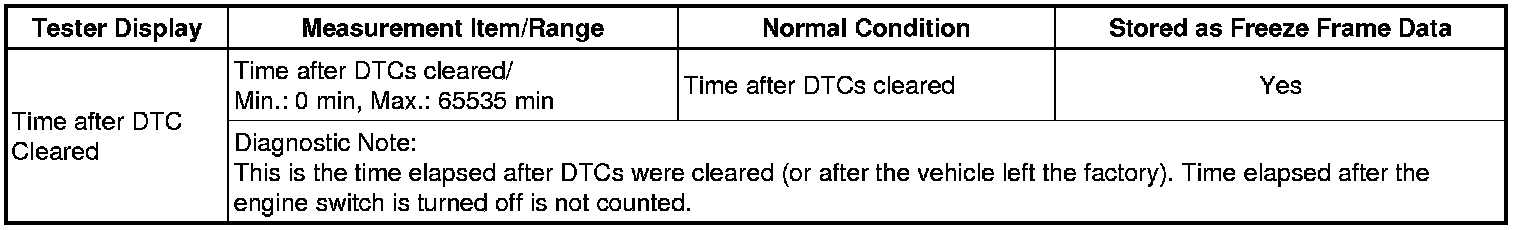

Time after DTC Cleared





Distance from DTC Cleared





Warmup Cycle Cleared DTC





Dist Batt Cable Disconnect





IG OFF Elapsed Time





OBD Requirements

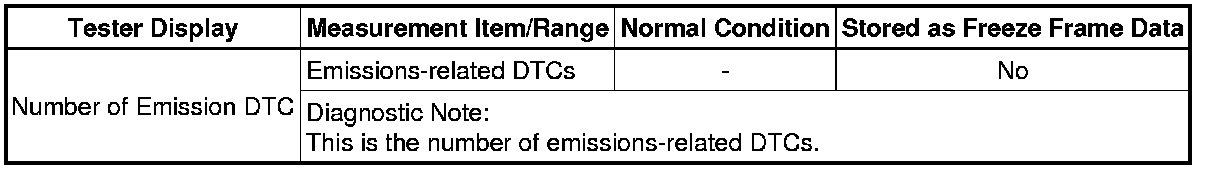

Number of Emission DTC

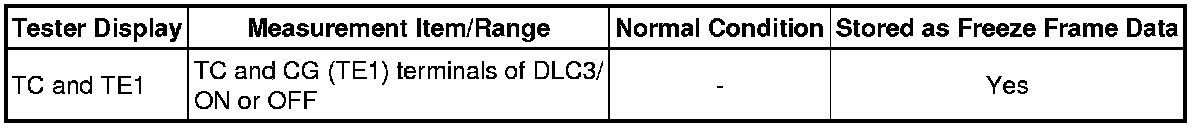

TC and TE1

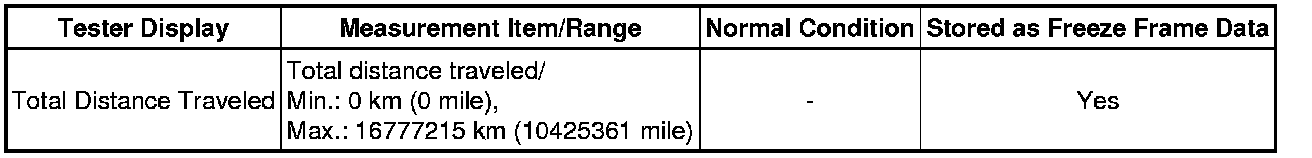

Total Distance Traveled





23. Misfire (Gas Misfire)

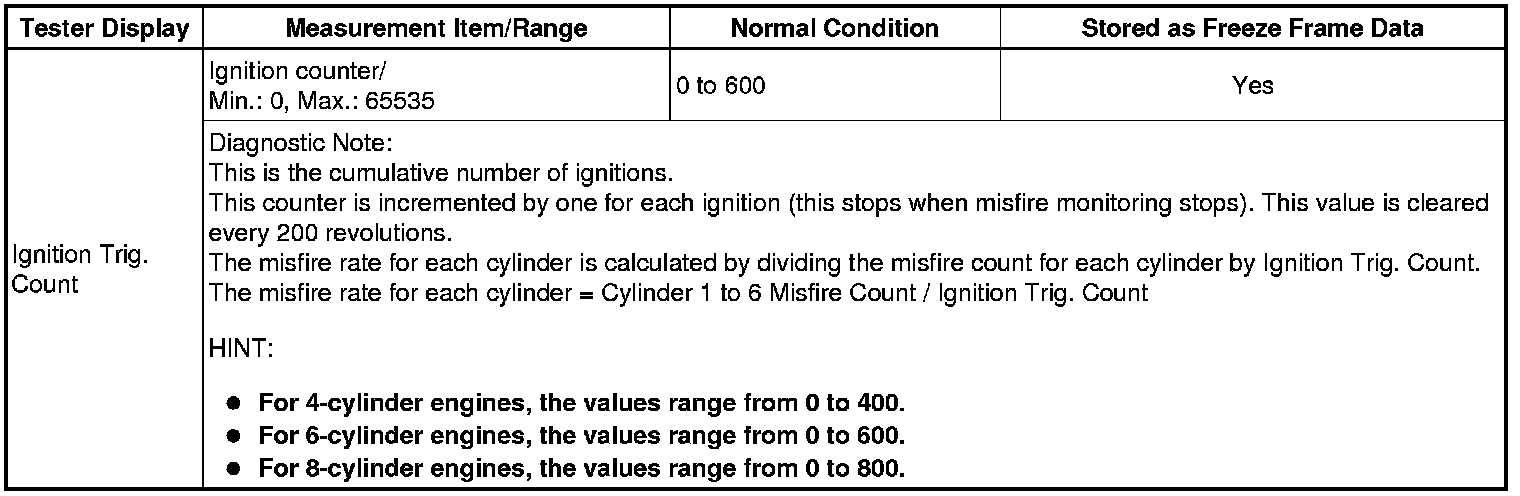

Ignition Trig. Count

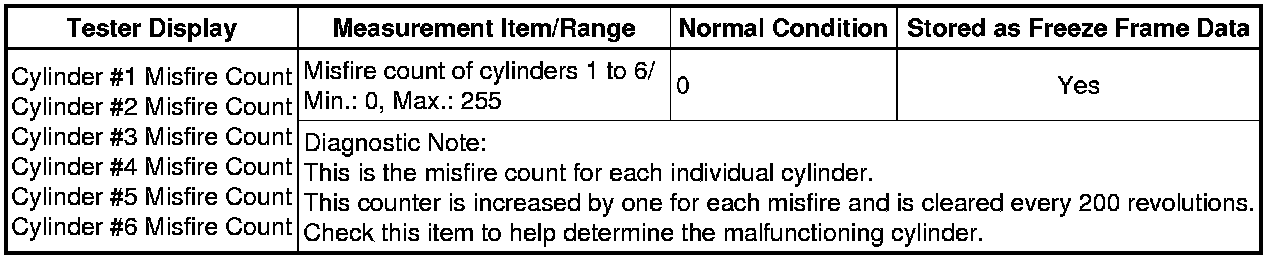

Cylinder #1 Misfire Count to Cylinder #6 Misfire Count





All Cylinders Misfire Count

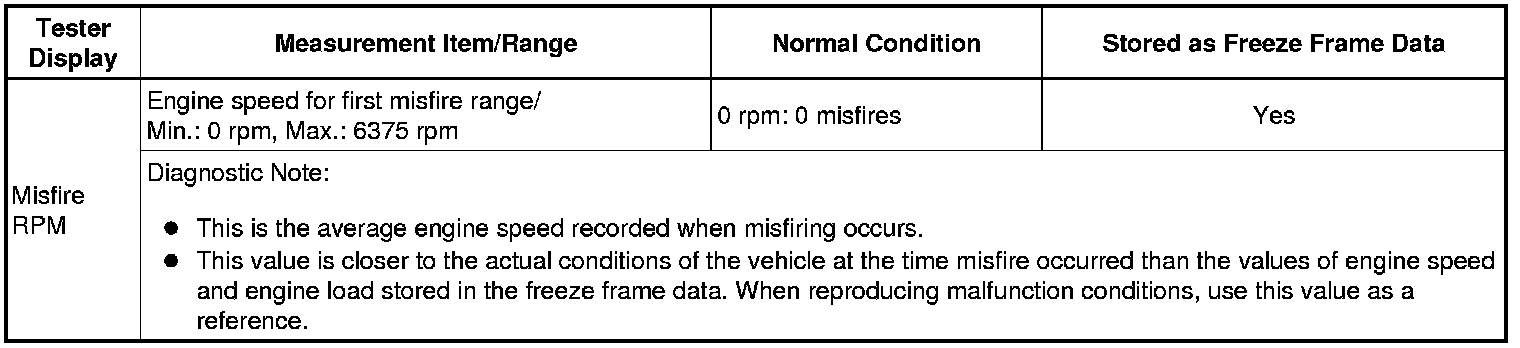

Misfire RPM

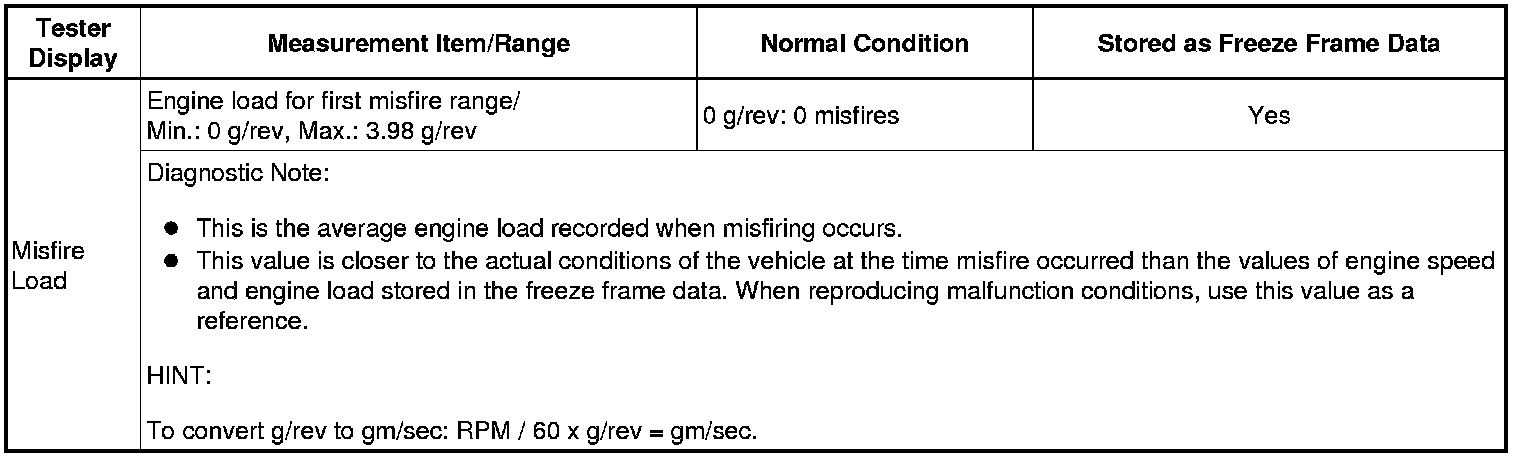

Misfire Load

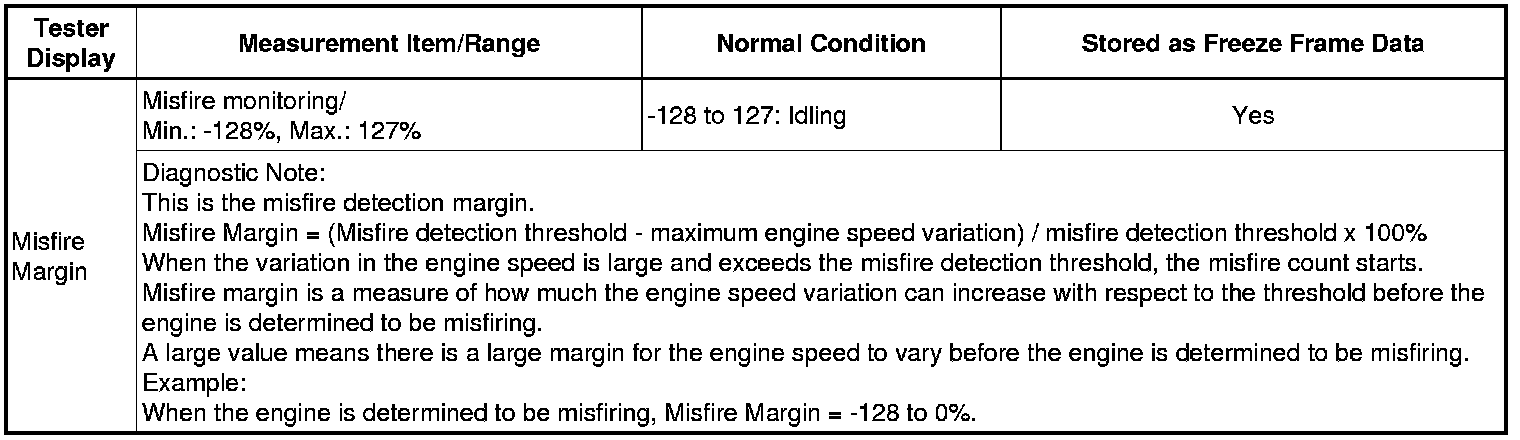

Misfire Margin

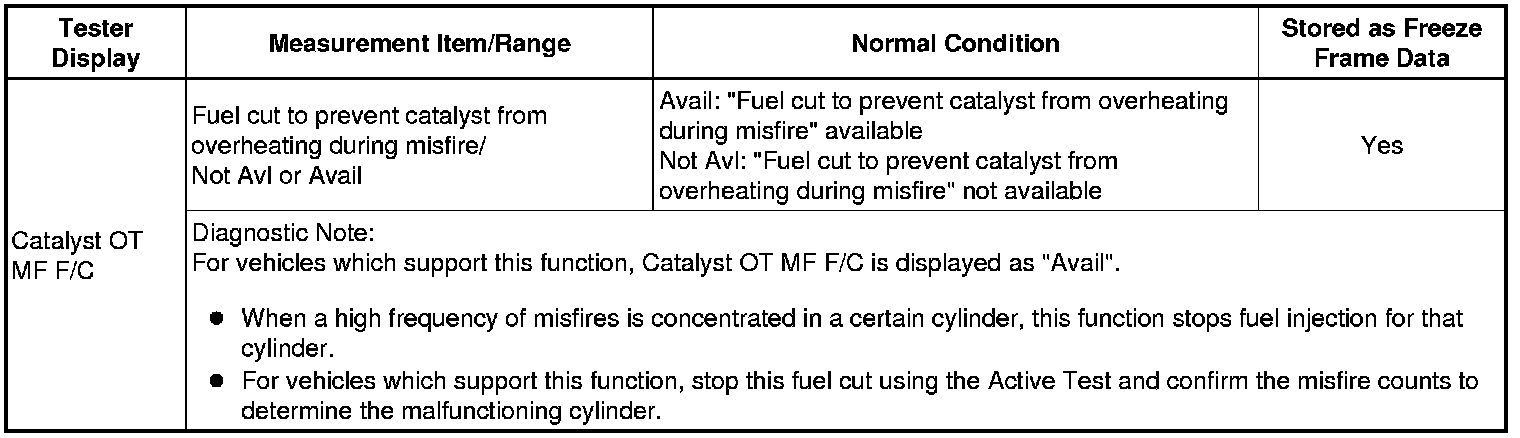

Catalyst OT MF F/C

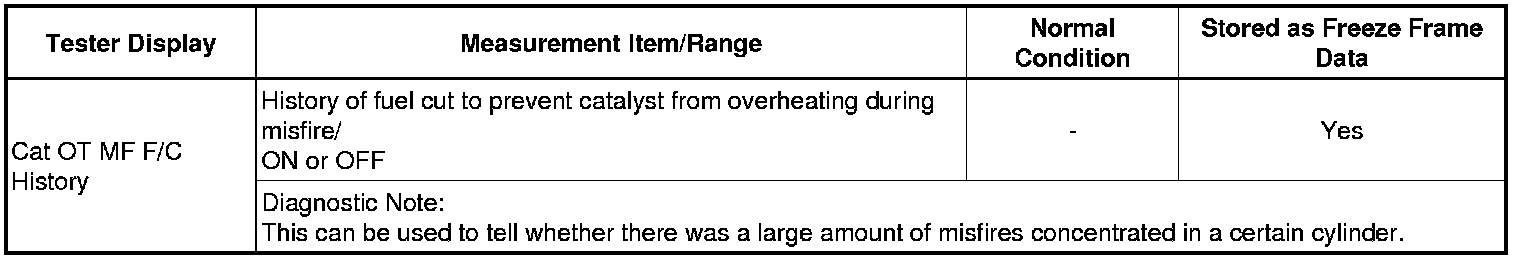

Cat OT MF F/C History





Cat OT MF F/C Cylinder #1 to #6





24. Various Vehicle Conditions 5 (All Data)

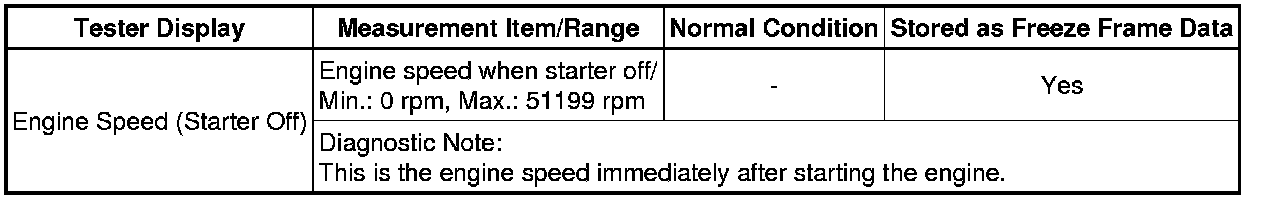

Engine Speed (Starter Off)

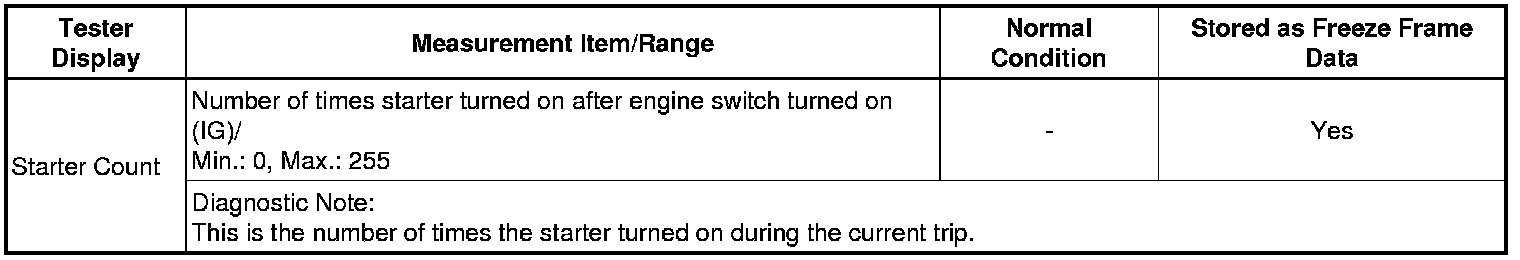

Starter Count

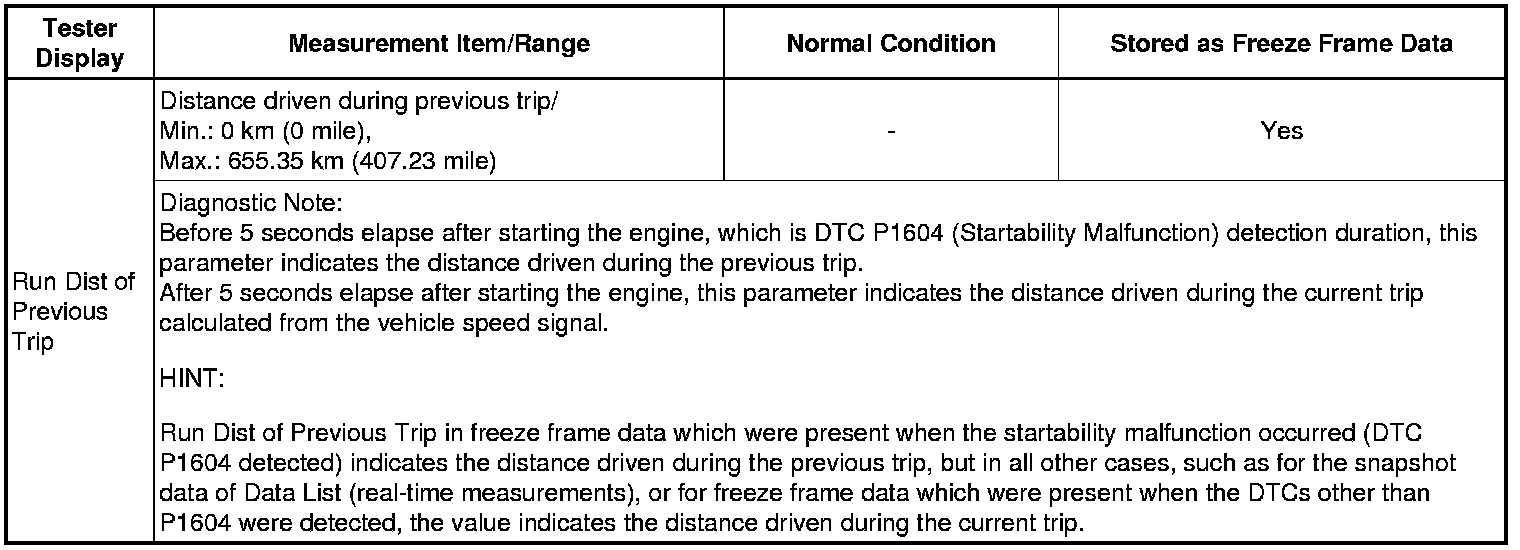

Run Dist of Previous Trip

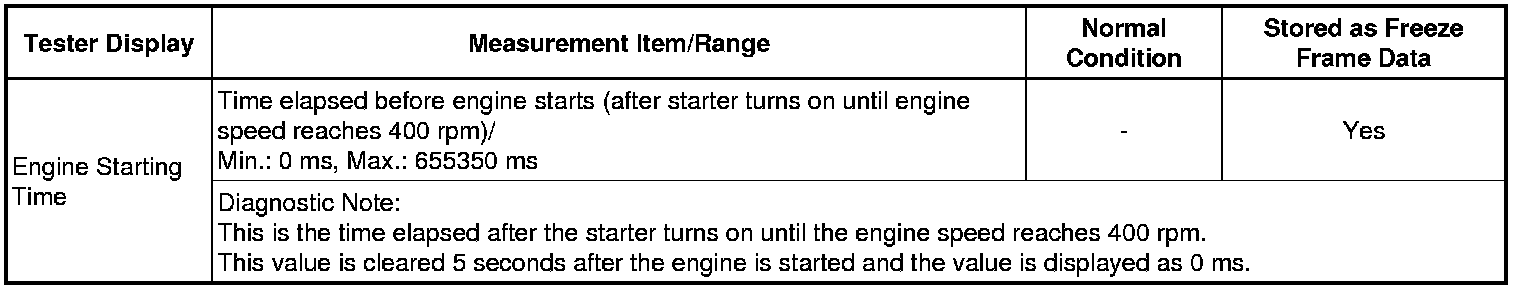

Engine Starting Time





Previous Trip Coolant Temp





Previous Trip Intake Temp

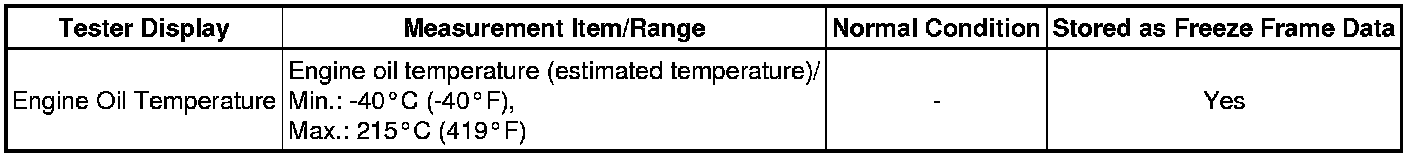

Engine Oil Temperature





Previous Trip Eng Oil Temp

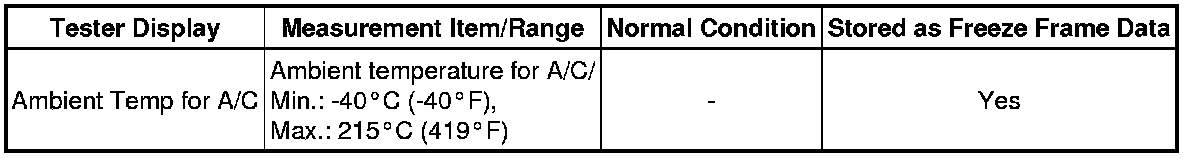

Ambient Temp for A/C

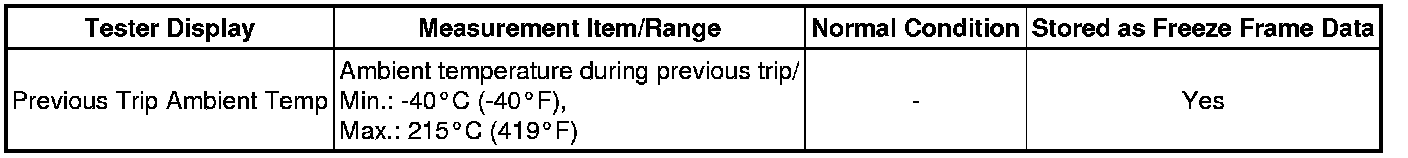

Previous Trip Ambient Temp

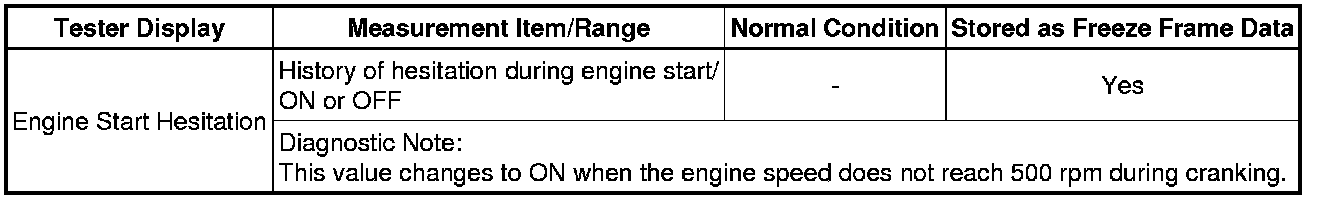

Engine Start Hesitation

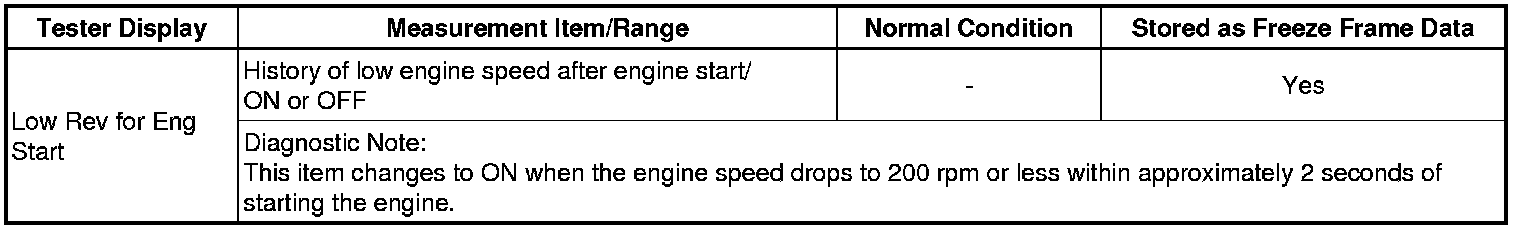

Low Rev for Eng Start

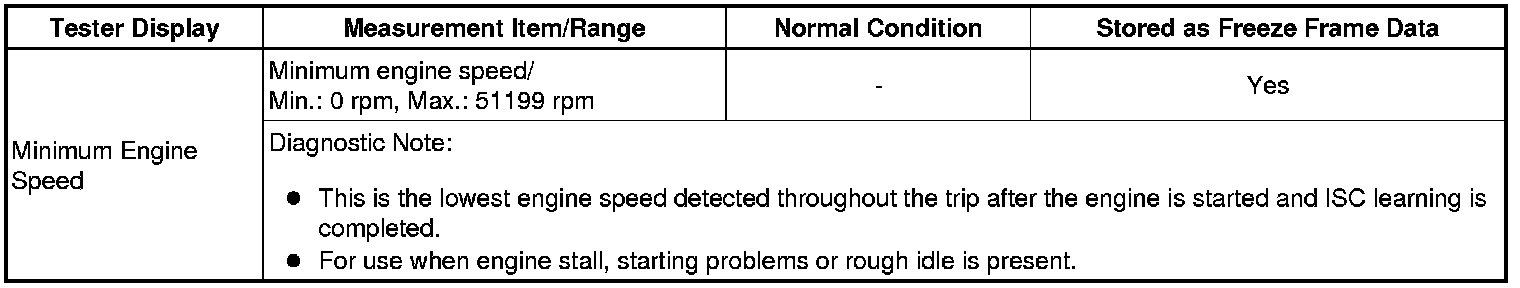

Minimum Engine Speed





ACM

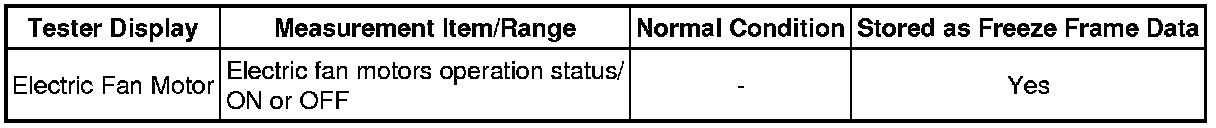

Electric Fan Motor

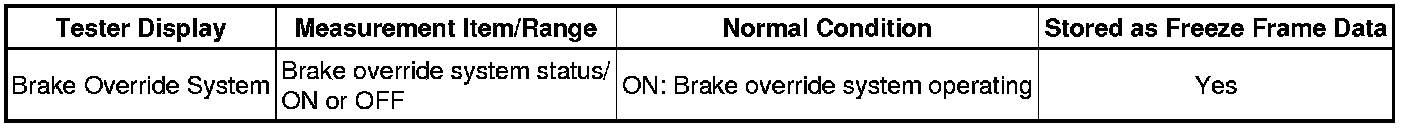

Brake Override System

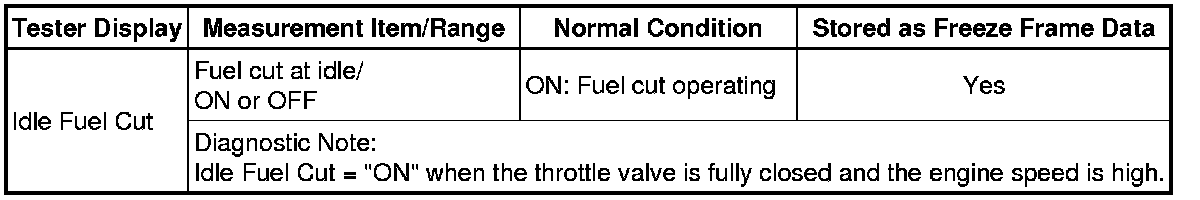

Idle Fuel Cut





FC TAU





Immobiliser Fuel Cut

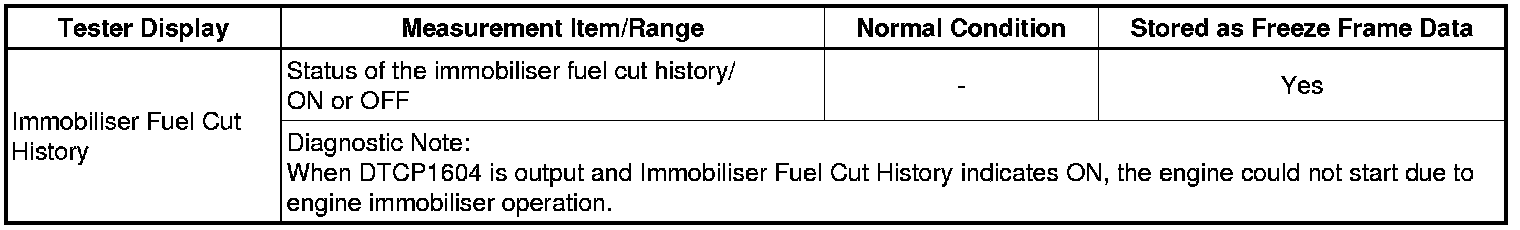

Immobiliser Fuel Cut History

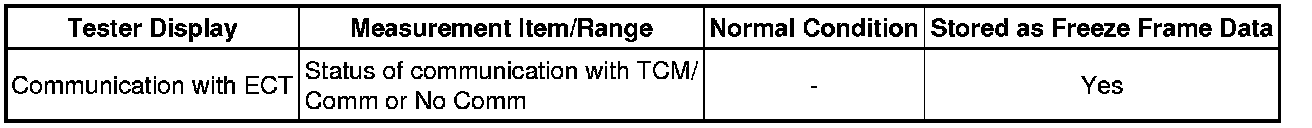

Communication with ECT

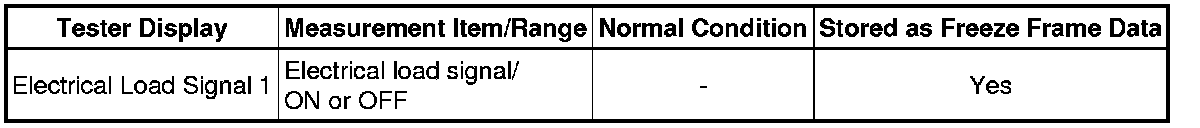

Electrical Load Signal 1





25. Various Vehicle Conditions 6 (Vehicle Information)

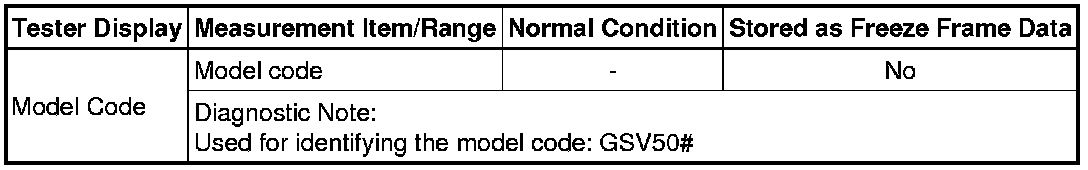

Model Code

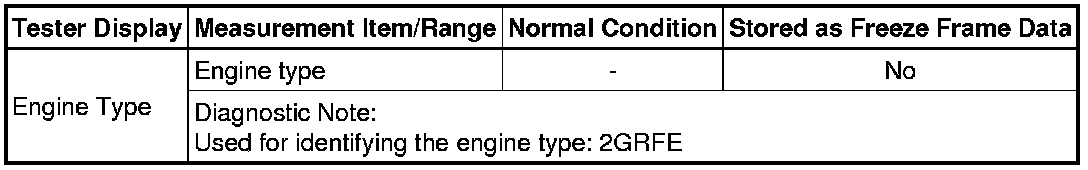

Engine Type





Cylinder Number





Transmission Type





Destination





Model Year





System Identification





26. Compression (Compression)

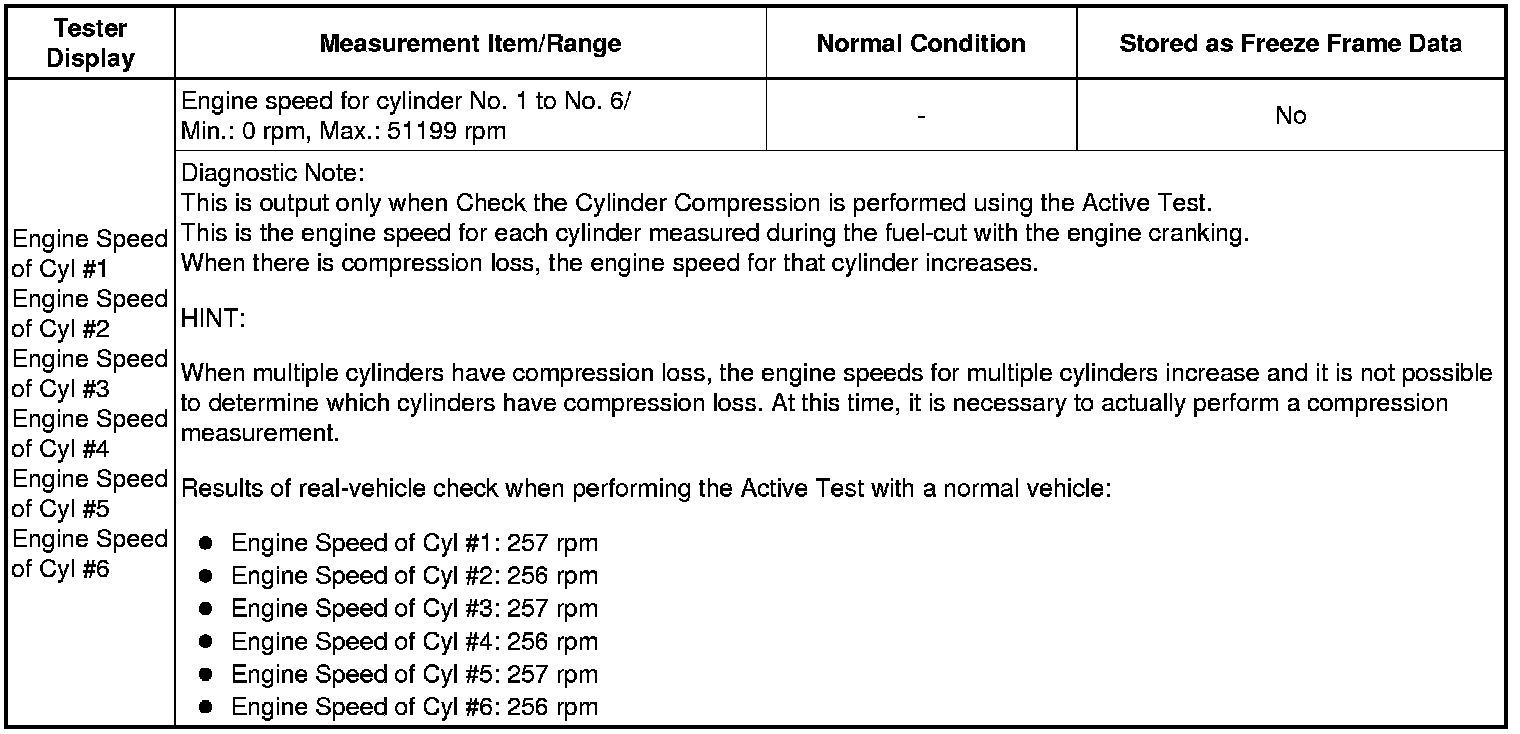

Engine Speed of Cyl #1 to #6

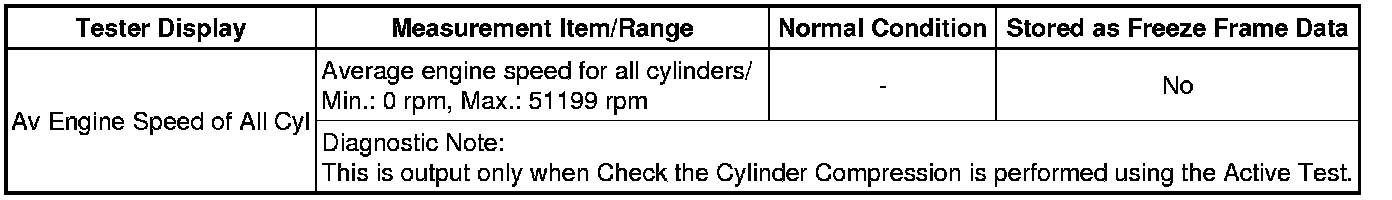

Av Engine Speed of All Cyl





27. Air Fuel Ratio Cylinder Imbalance (Gas AF O2 Sensor)

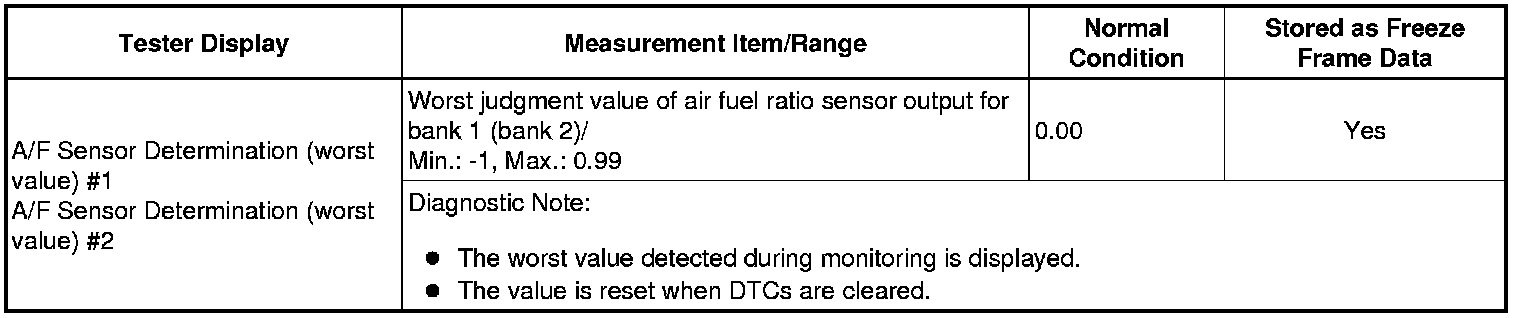

A/F Sensor Determination (worst value) #1, #2

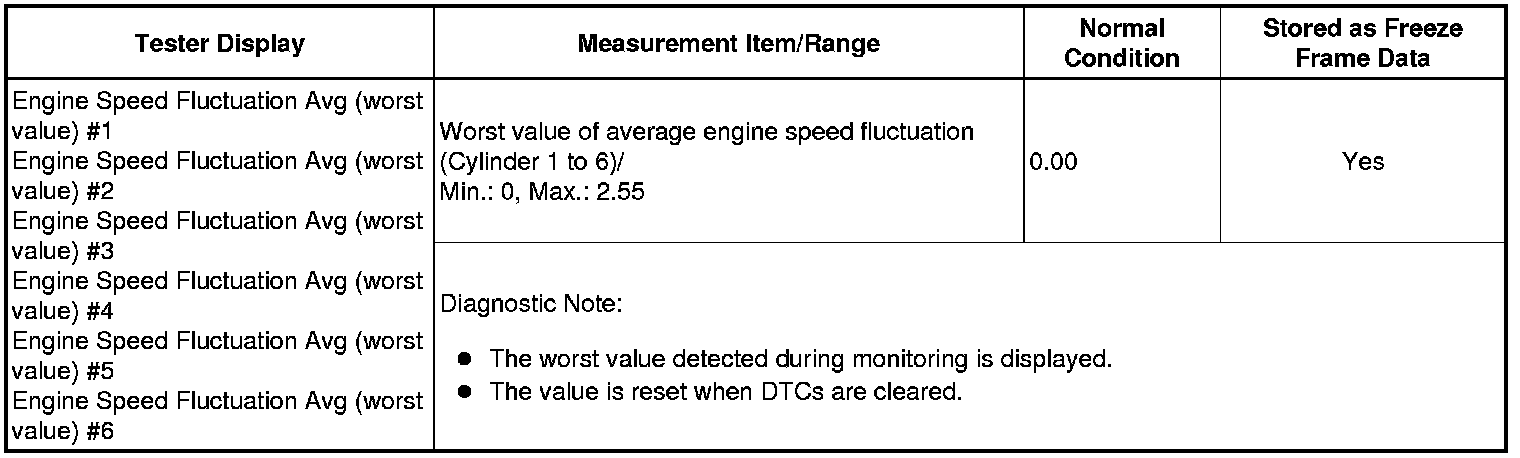

Engine Speed Fluctuation Avg (worst value) #1 to #6





28. Automatic Transaxle 1 (All Data)

Refer to Automatic Transaxle System Data List / Active List.

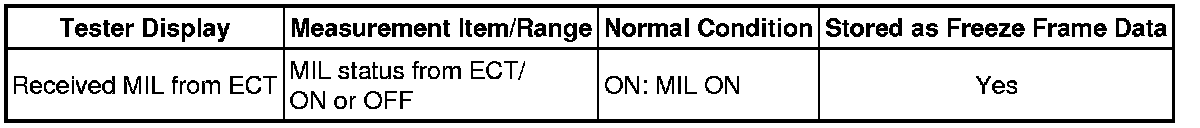

Received MIL from ECT





29. Automatic Transaxle 2 (AT)

Refer to Automatic Transaxle System Data List / Active List.

Shift Position Sig from ECT

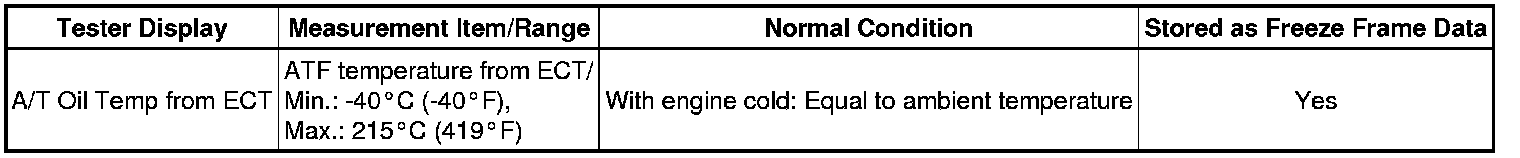

A/T Oil Temp from ECT





30. Automatic Transaxle 3 (All Data)

Refer to Automatic Transaxle System Data List / Active List.

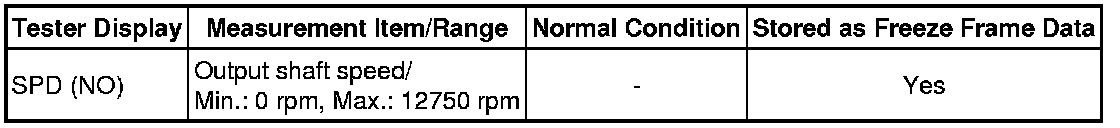

SPD (NO)





SPD (NT)
