Disassembly

2GR-FE BATTERY / CHARGING: GENERATOR: DISASSEMBLY

1. REMOVE GENERATOR REAR END COVER

(a) Remove the 3 nuts and generator rear end cover.

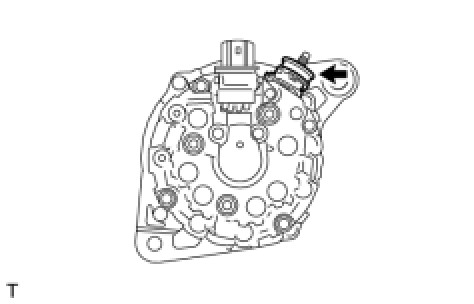

2. REMOVE GENERATOR TERMINAL INSULATOR

(a) Remove the generator terminal insulator from the generator coil.

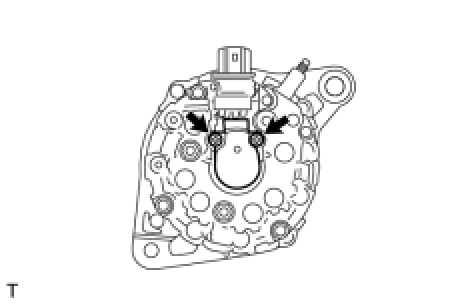

3. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY

(a) Remove the 2 screws and brush holder from the generator coil.





4. REMOVE GENERATOR COIL ASSEMBLY

(a) Remove the 4 bolts.





(b) Using SST, remove the generator coil assembly.





Text in Illustration





SST : 09950-40011

09951-04020

09952-04010

09953-04020

09954-04010

09955-04071

09957-04010

09958-04011

(c) Remove the generator washer.





5. REMOVE GENERATOR PULLEY WITH CLUTCH

(a) Using a screwdriver, remove the generator pulley cap.





NOTICE:
Do not reuse the generator pulley cap.

(b) Mount the generator drive end frame in a vise tightly.

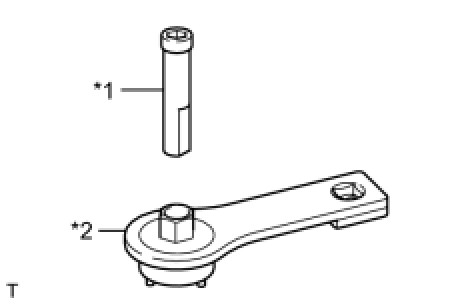

(c) Confirm SST (A) and (B) shown in the illustration.





Text in Illustration





SST : 09820-63021

(d) Place the rotor shaft end into SST (A).

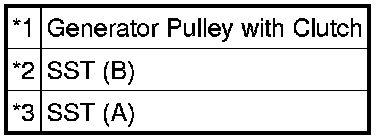

Text in Illustration

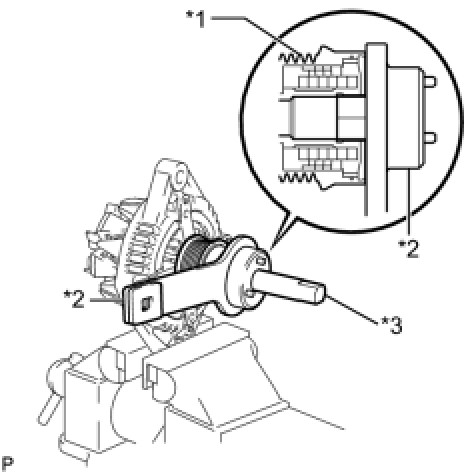

(e) Fit SST (B) to the generator pulley with clutch.





Text in Illustration





(f) Loosen the pulley by turning SST (B) in the direction shown in the illustration.





Text in Illustration





NOTICE:
* Check that the drive end frame is secured in the vise tightly.
* Hold SST (A) tightly during the operation.

(g) Remove SST from the generator assembly.

(h) Remove the generator pulley with clutch from the rotor shaft.

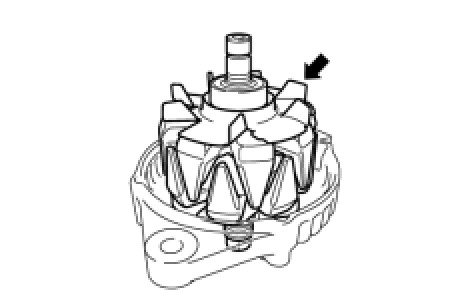

6. REMOVE GENERATOR ROTOR ASSEMBLY

(a) Remove the generator rotor assembly.





7. INSPECT GENERATOR DRIVE END FRAME BEARING Testing and Inspection

8. REMOVE GENERATOR DRIVE END FRAME BEARING

(a) Remove the 4 screws and bearing retainer from the drive end frame.

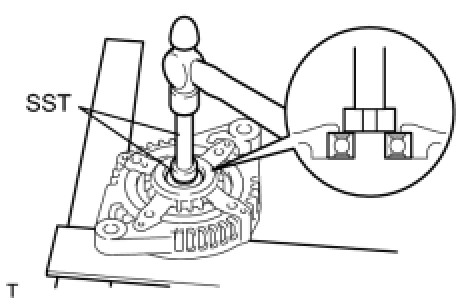

(b) Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.





SST : 09950-60010

09951-00250

SST : 09950-70010

09951-07100
