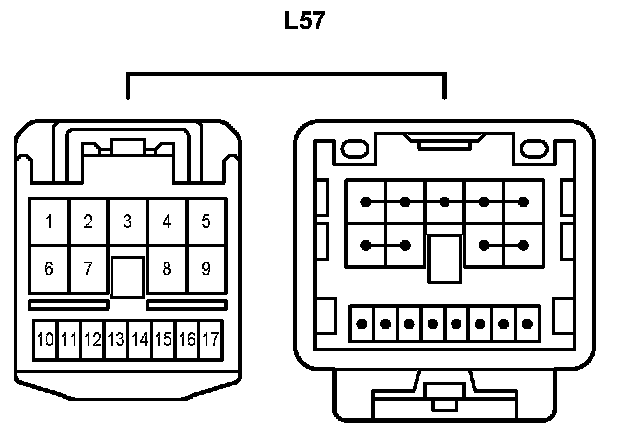

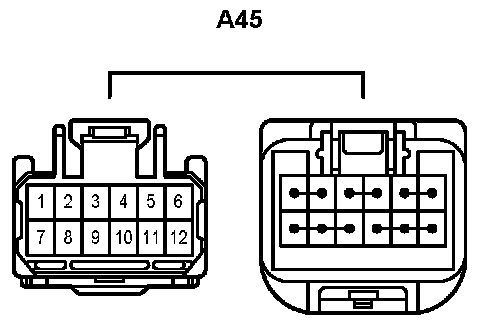

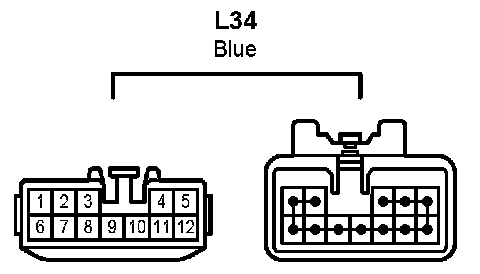

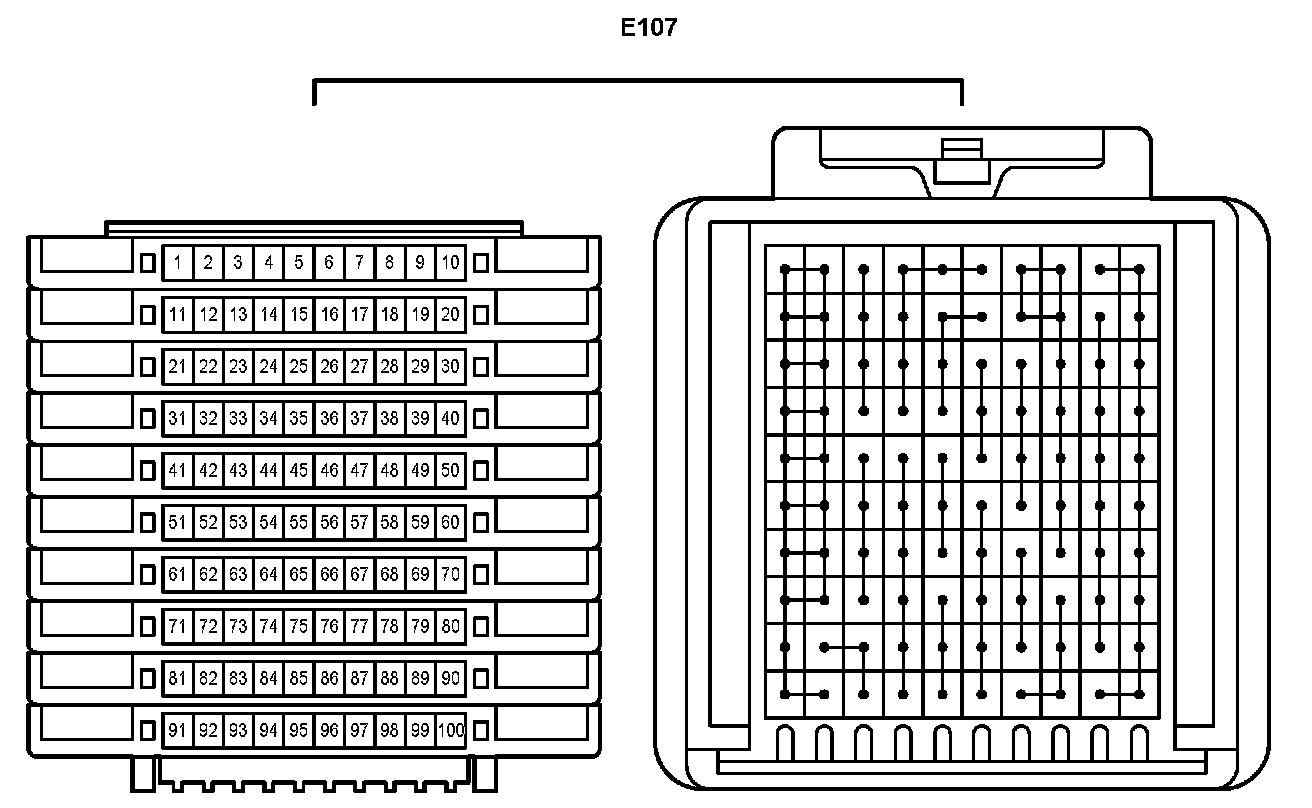

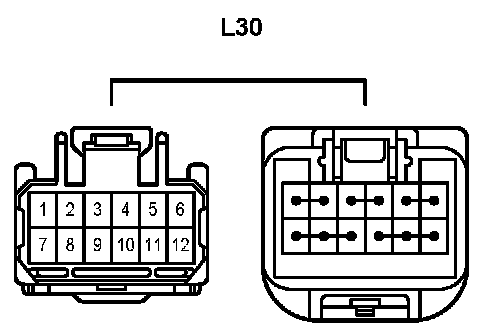

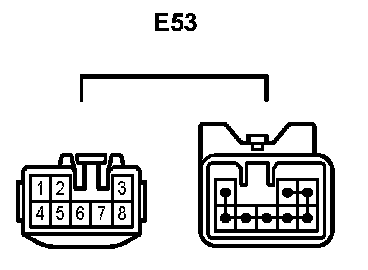

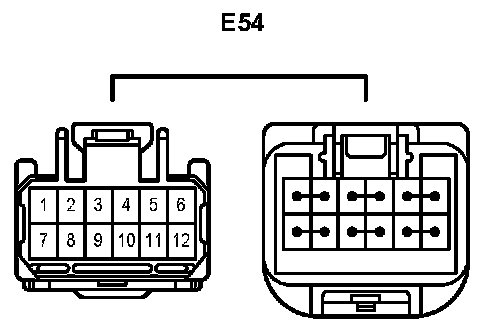

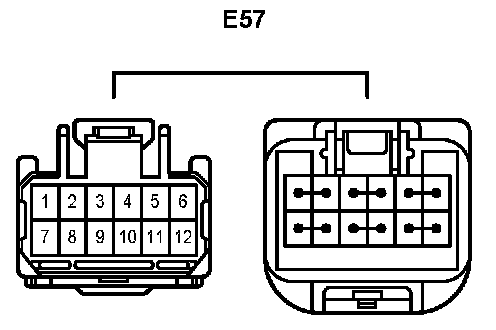

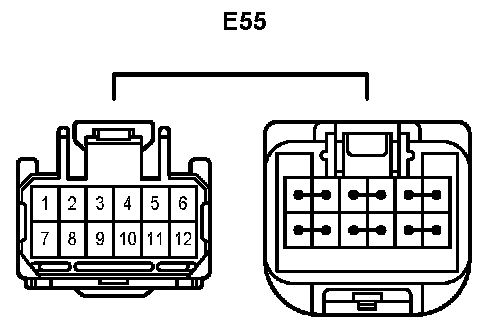

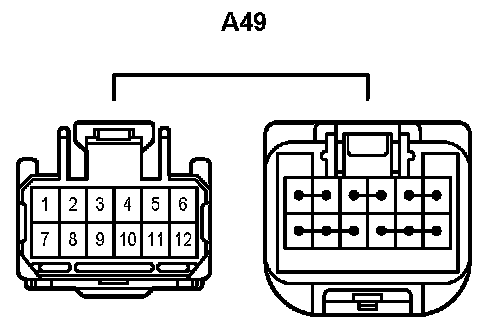

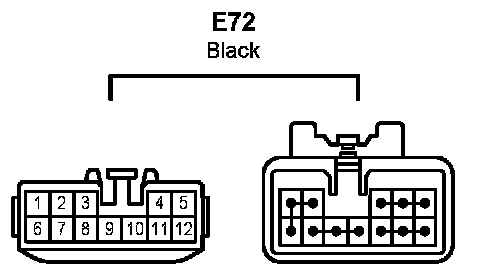

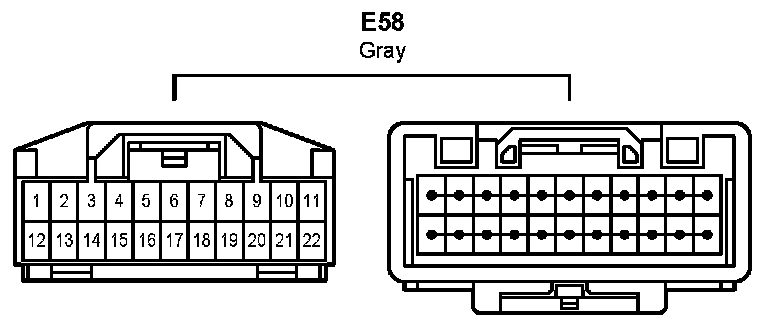

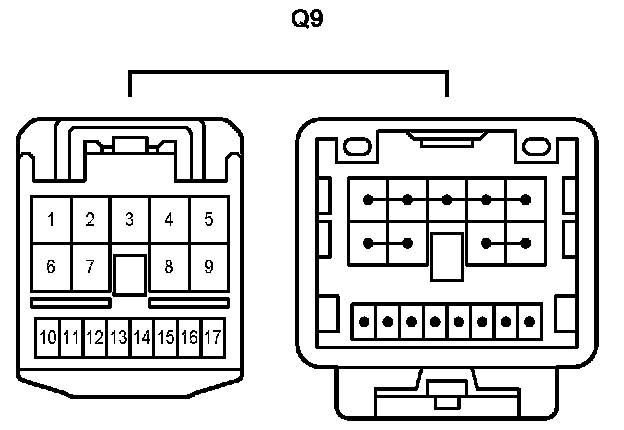

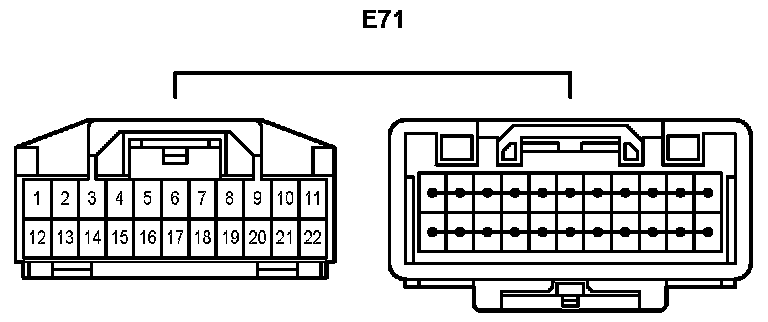

Junction Connectors (Short Terminal)

On Left: Female Connector Shapes
On Right: Male Connector Shapes

Connector Colors:

Black






Blue






Gray






Connectors with no indicated colors are white in colour
