System Diagram

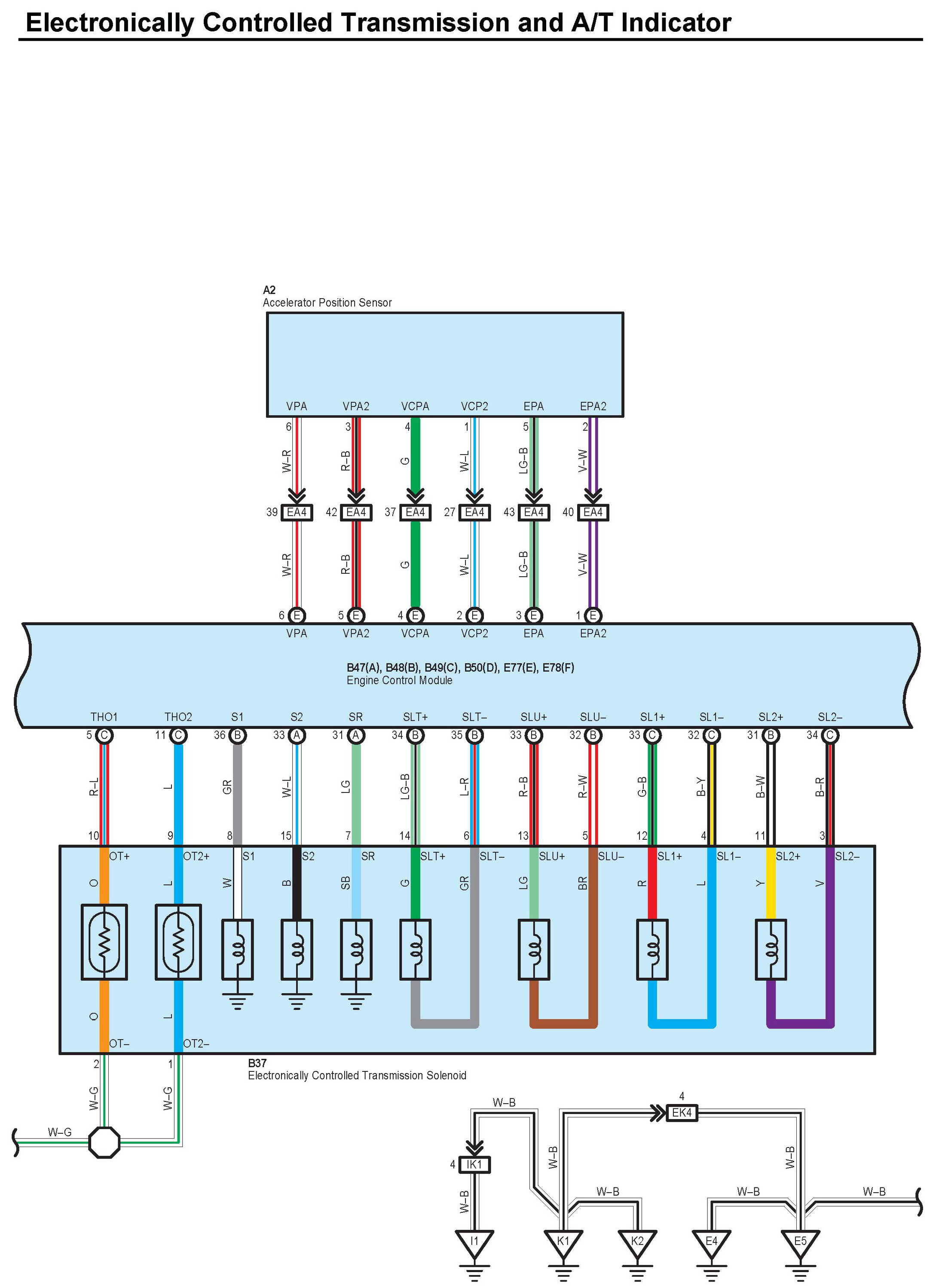

Electronically Controlled Transmission and A/T Indicator Part 1:

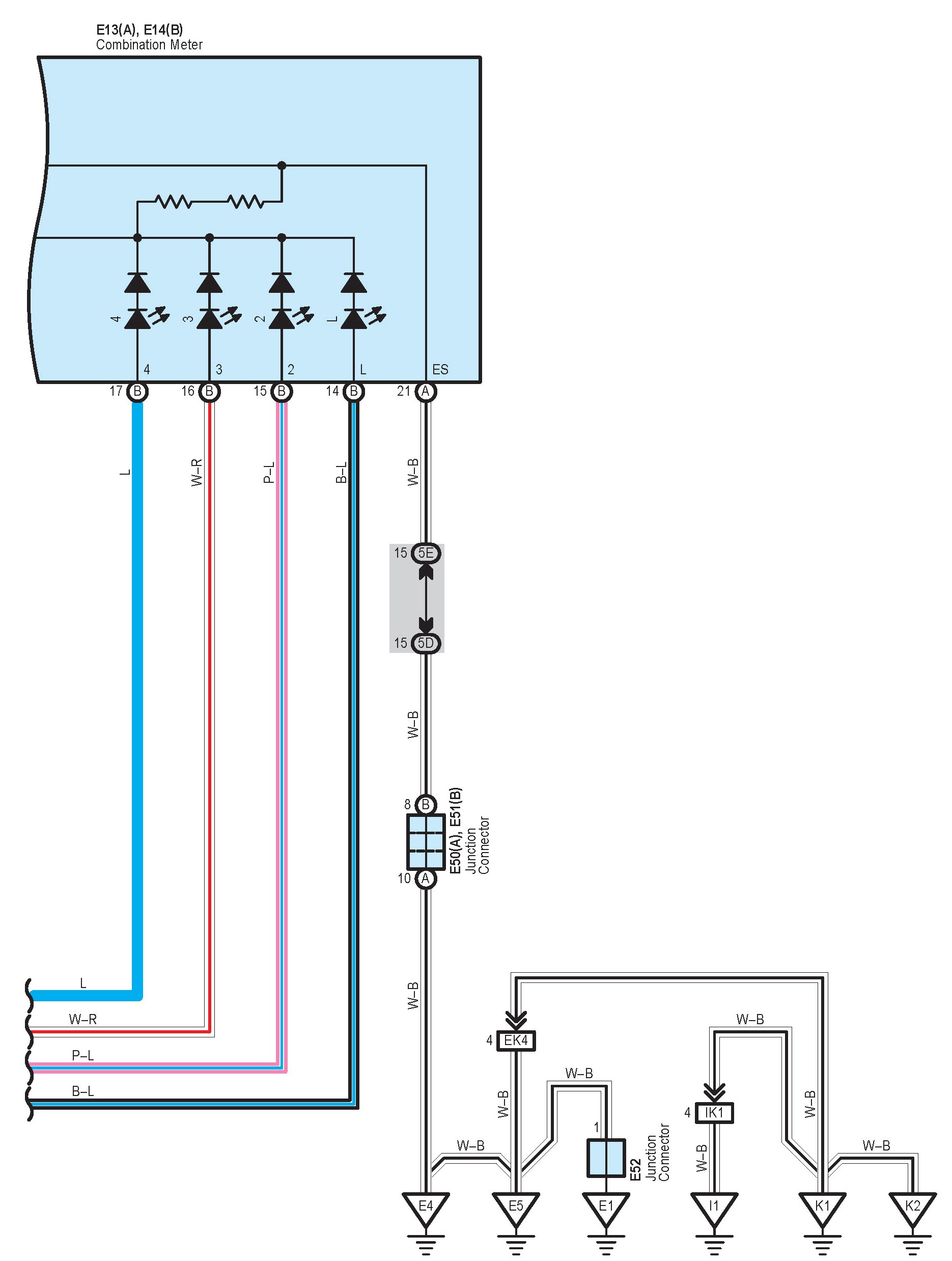

Electronically Controlled Transmission and A/T Indicator Part 2:

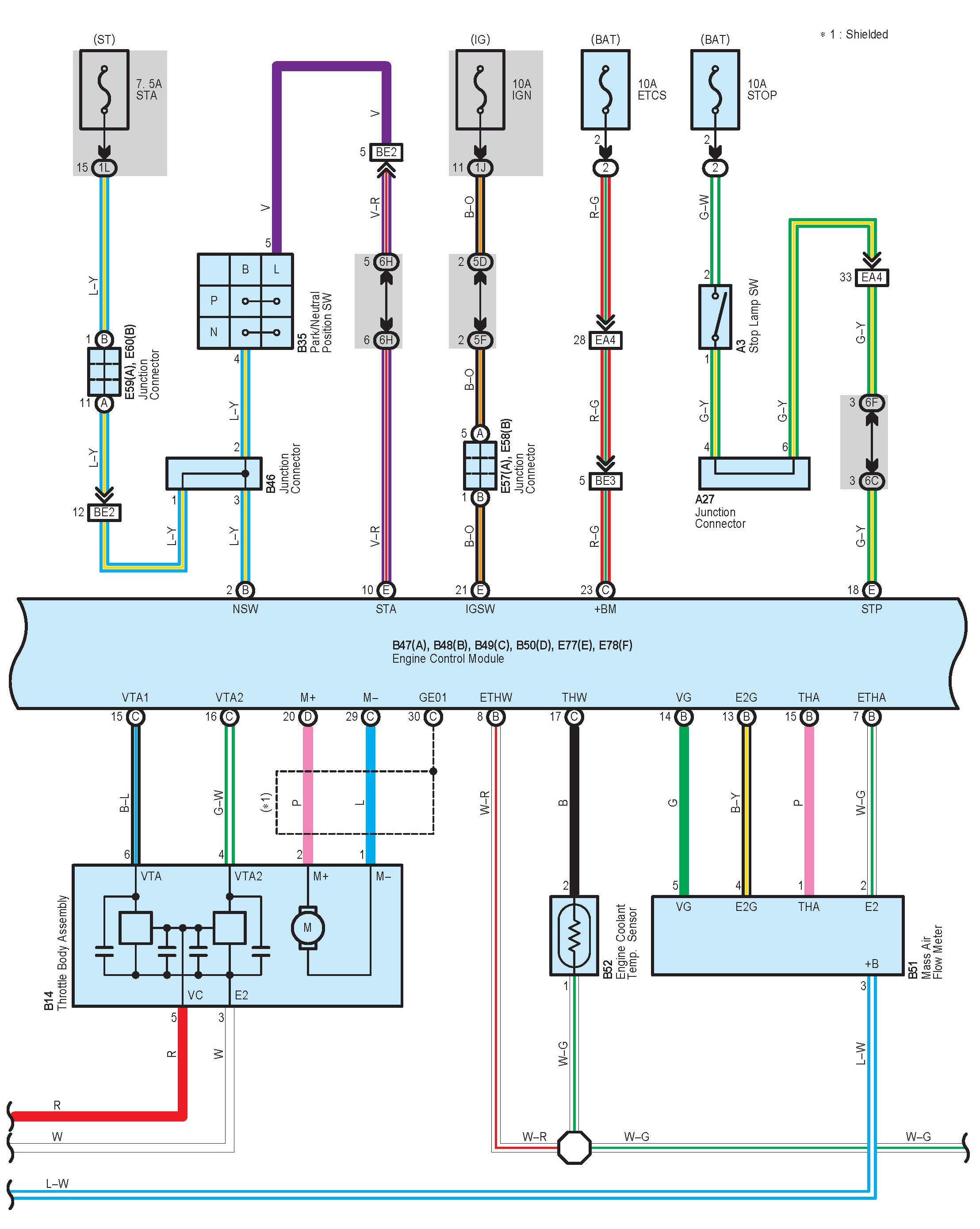

Electronically Controlled Transmission and A/T Indicator Part 3:

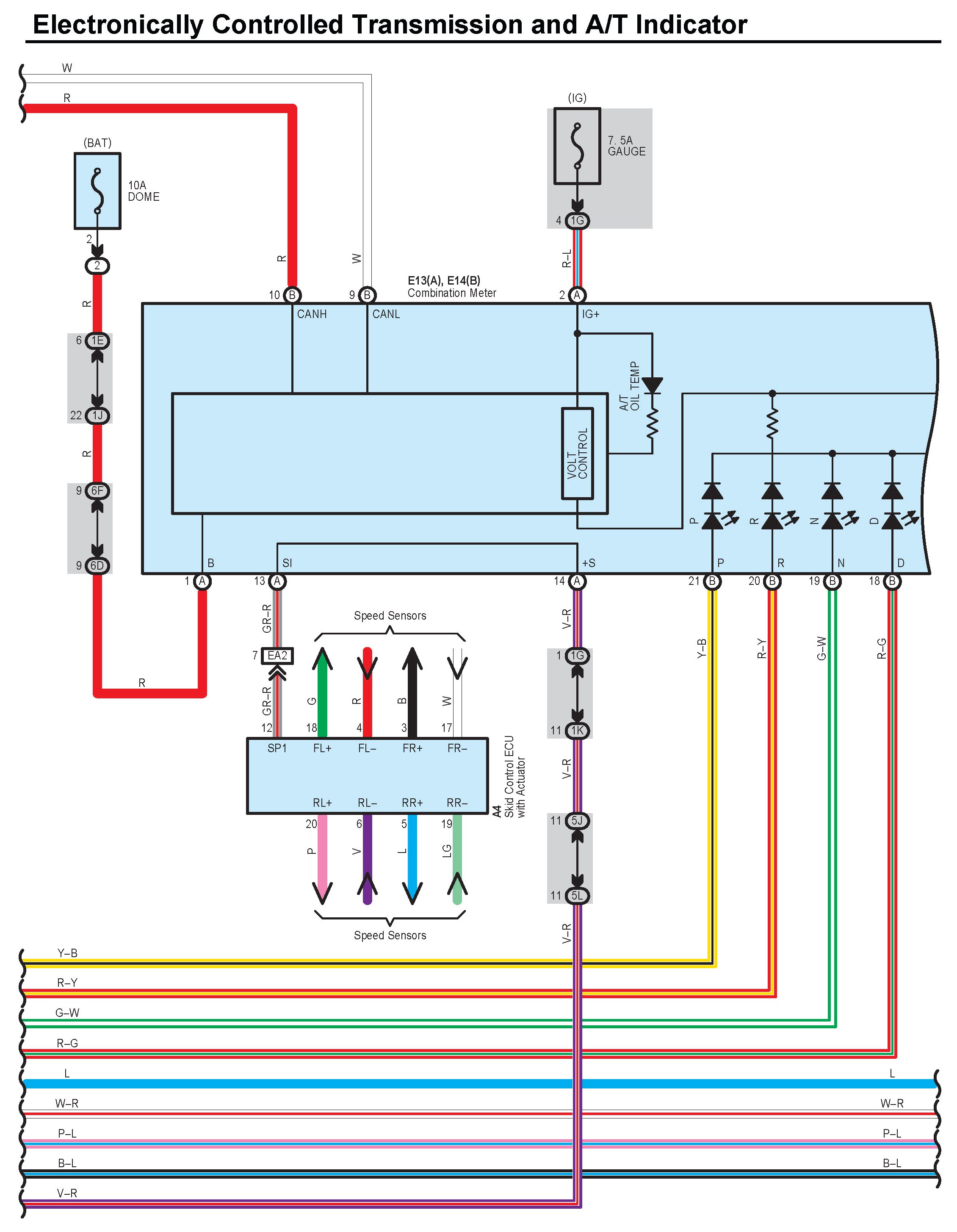

Electronically Controlled Transmission and A/T Indicator Part 4:

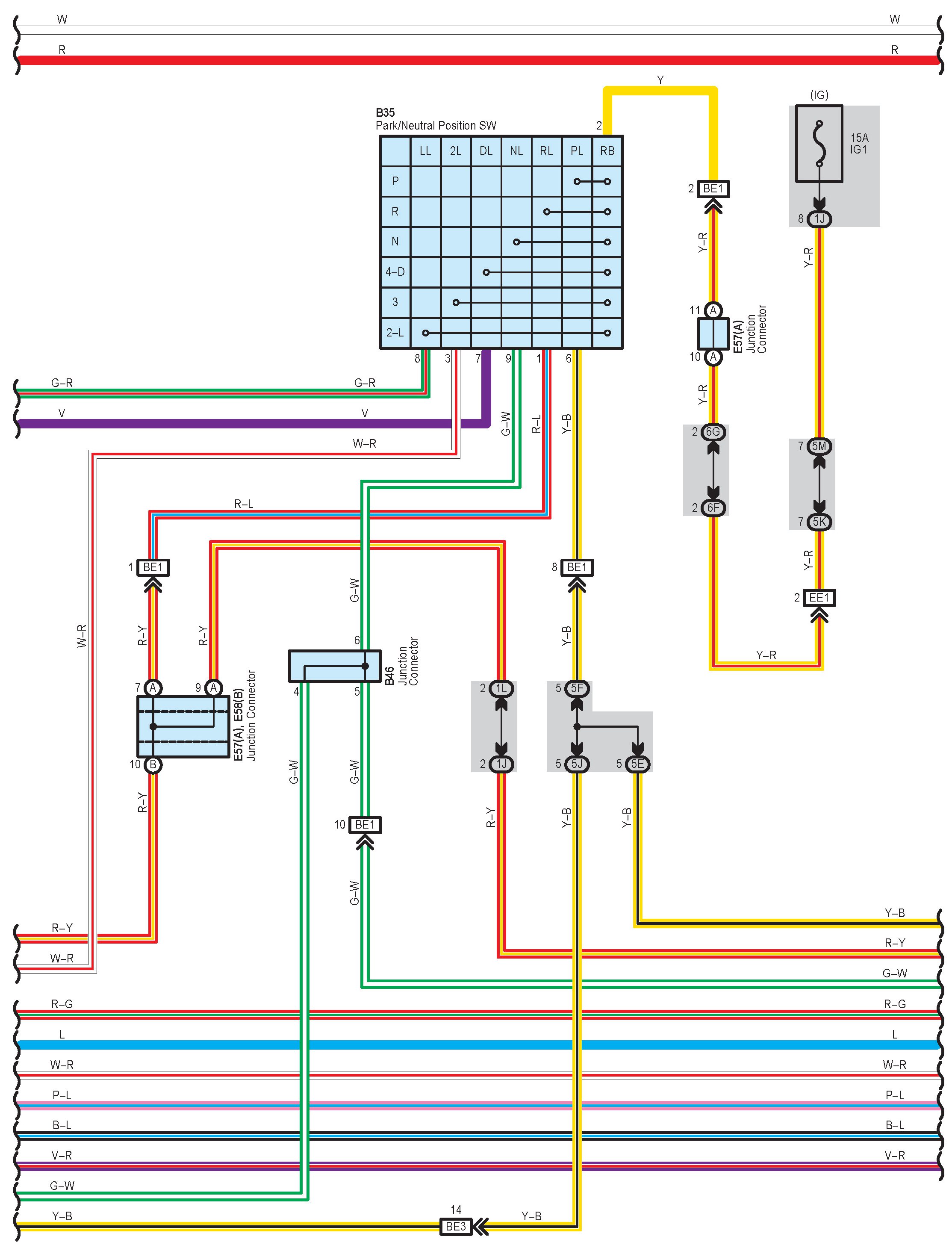

Electronically Controlled Transmission and A/T Indicator Part 5:

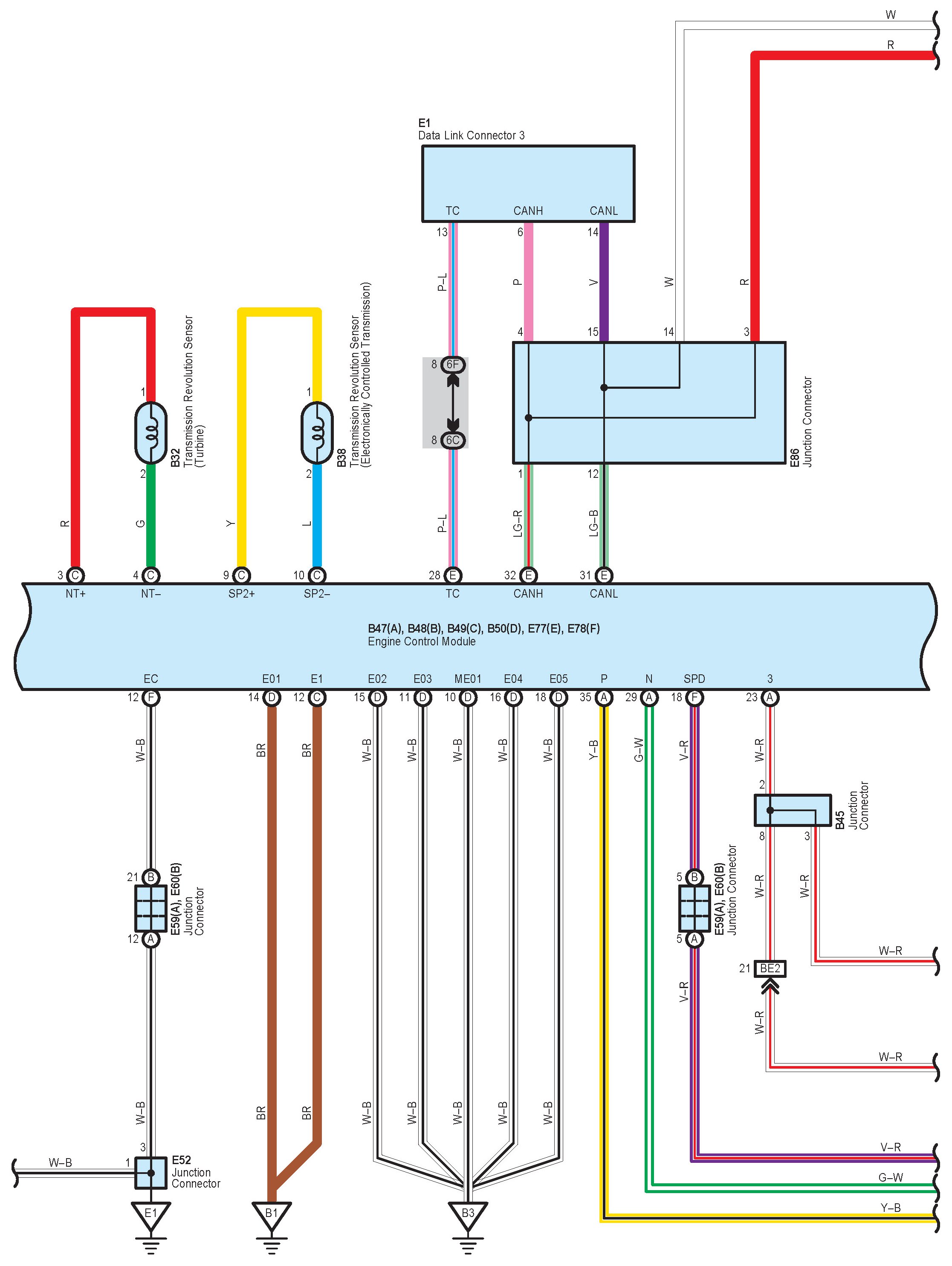

Electronically Controlled Transmission and A/T Indicator Part 6:

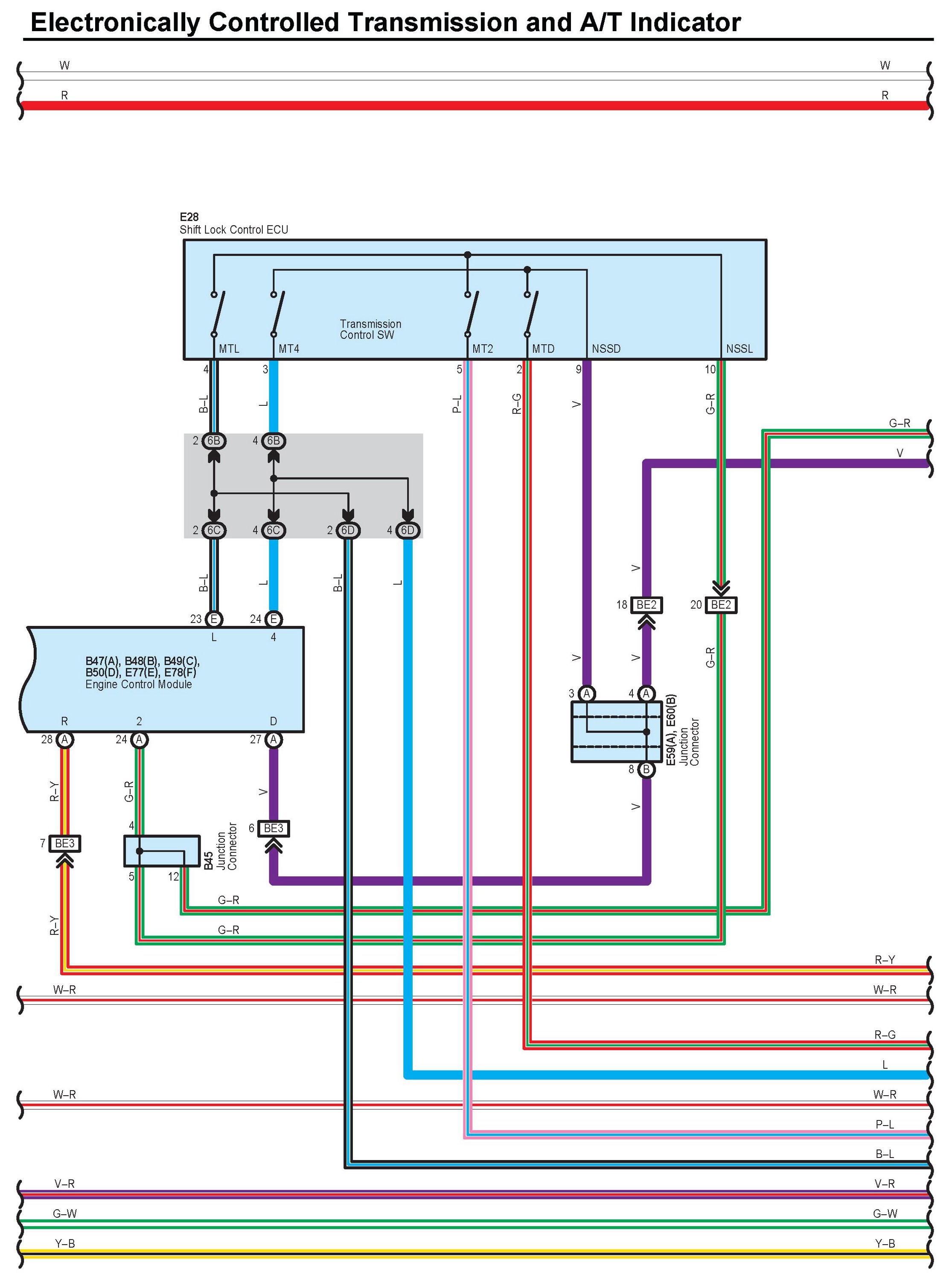

Electronically Controlled Transmission and A/T Indicator Part 7:

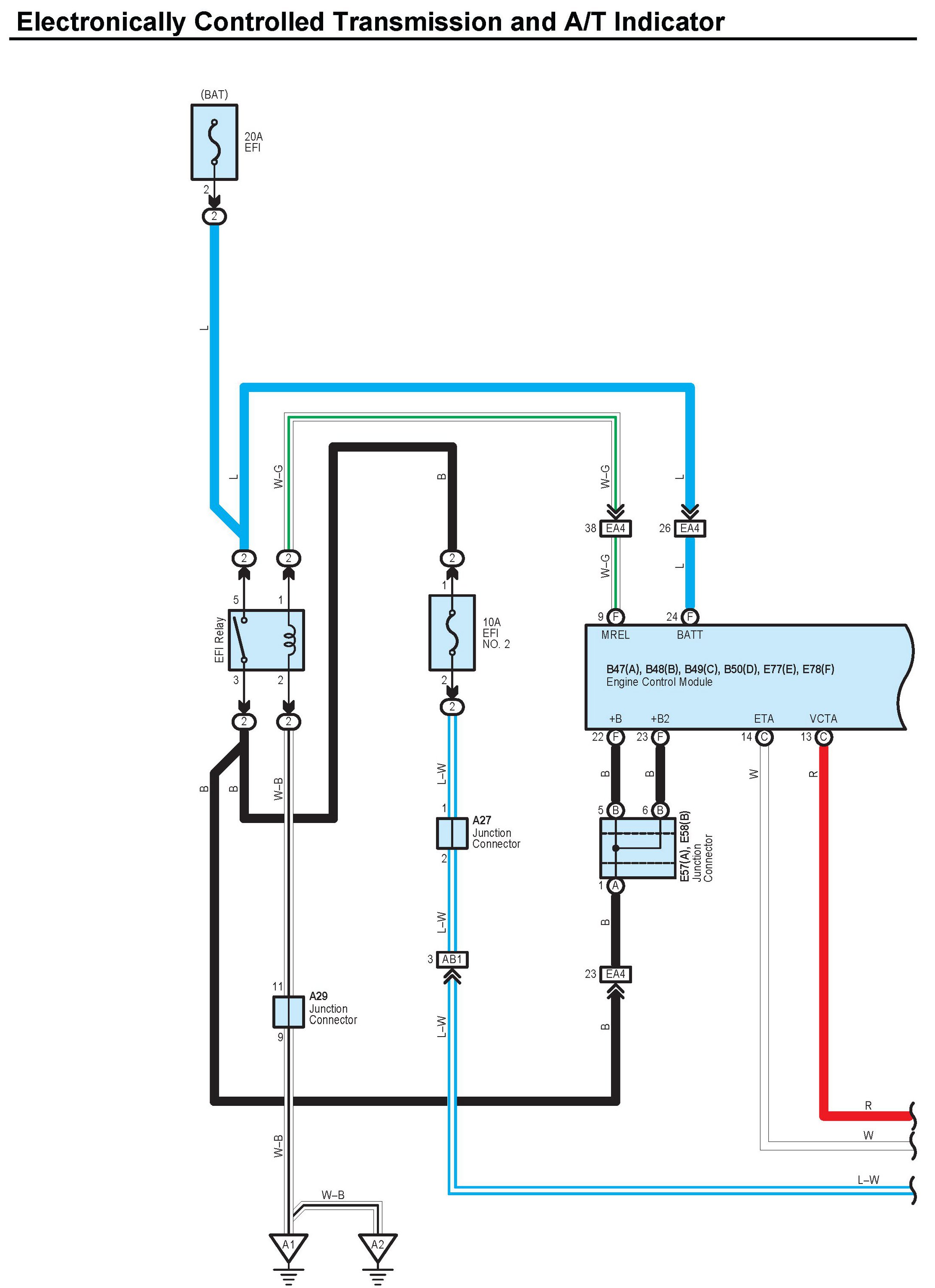

Electronically Controlled Transmission and A/T Indicator Part 8:

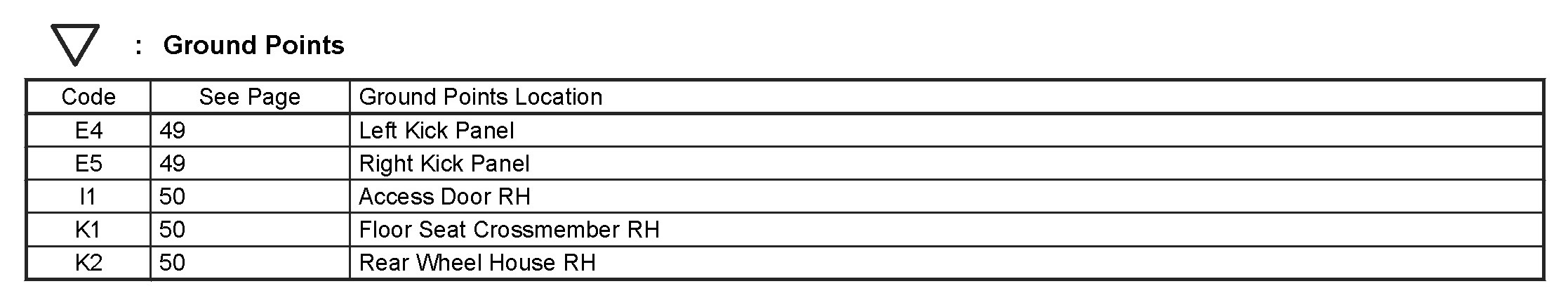

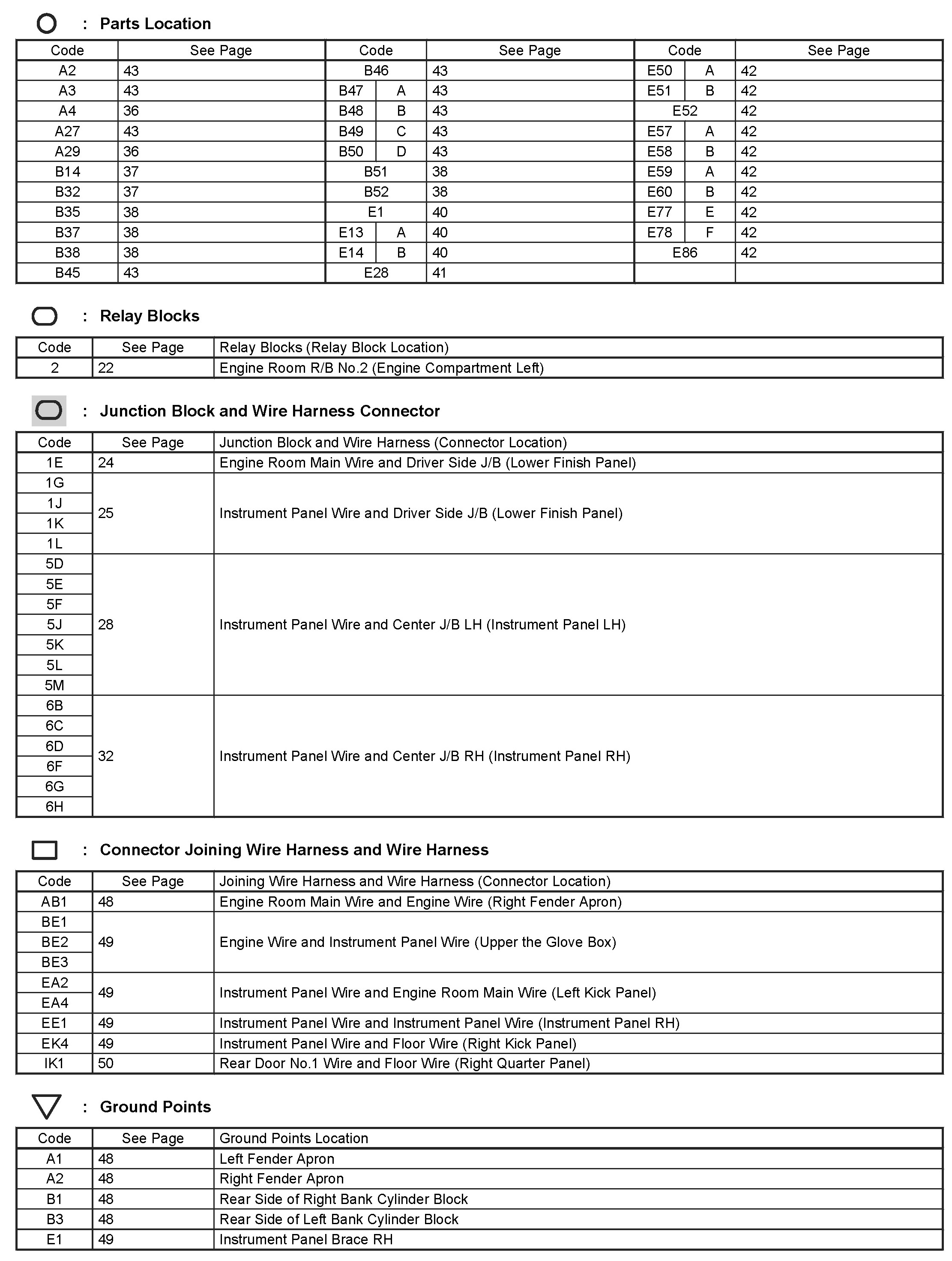

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
