Service Data





SERVICE SPECIFICATIONS: A750E AUTOMATIC TRANSMISSION: SERVICE DATA

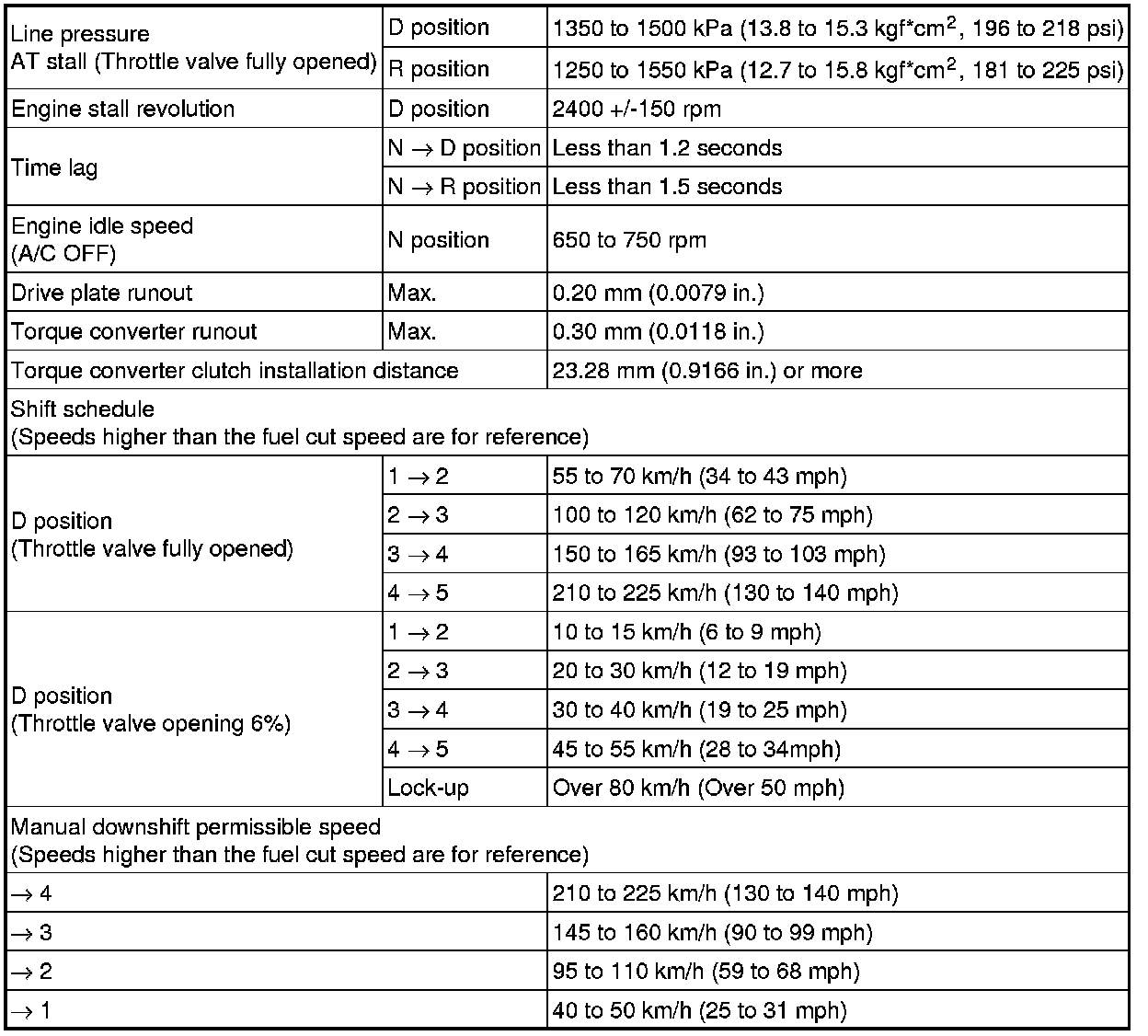

Automatic Transmission System

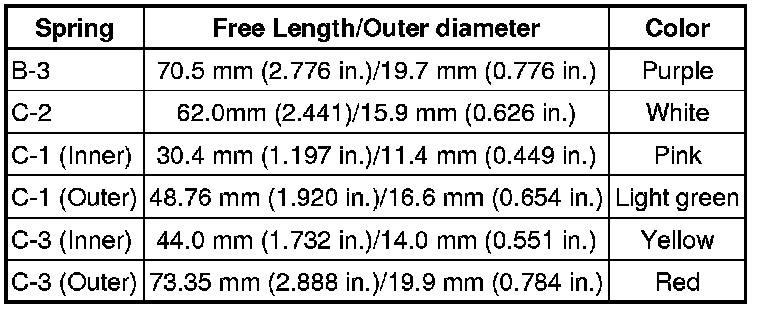

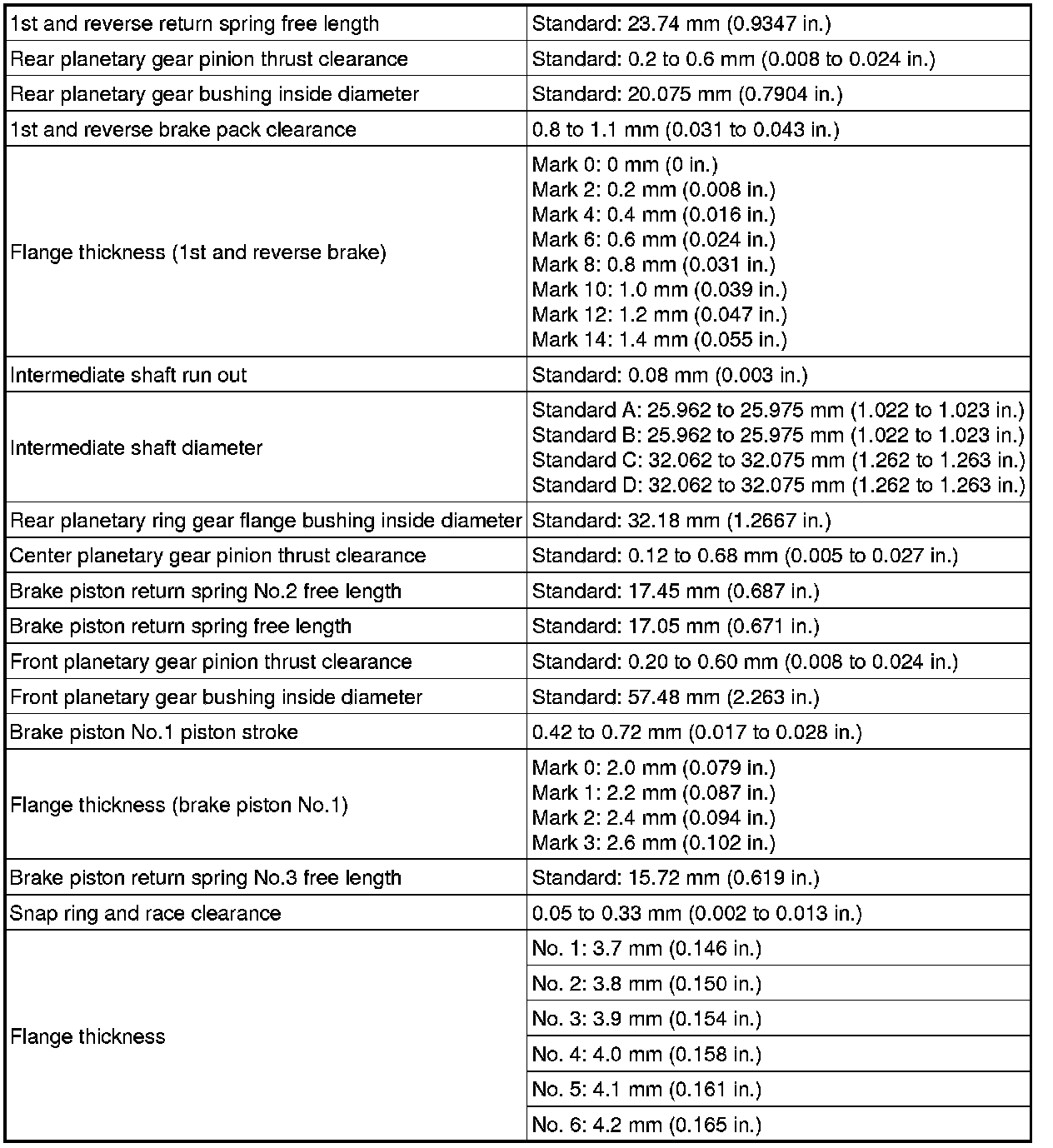

Automatic Transmission Unit

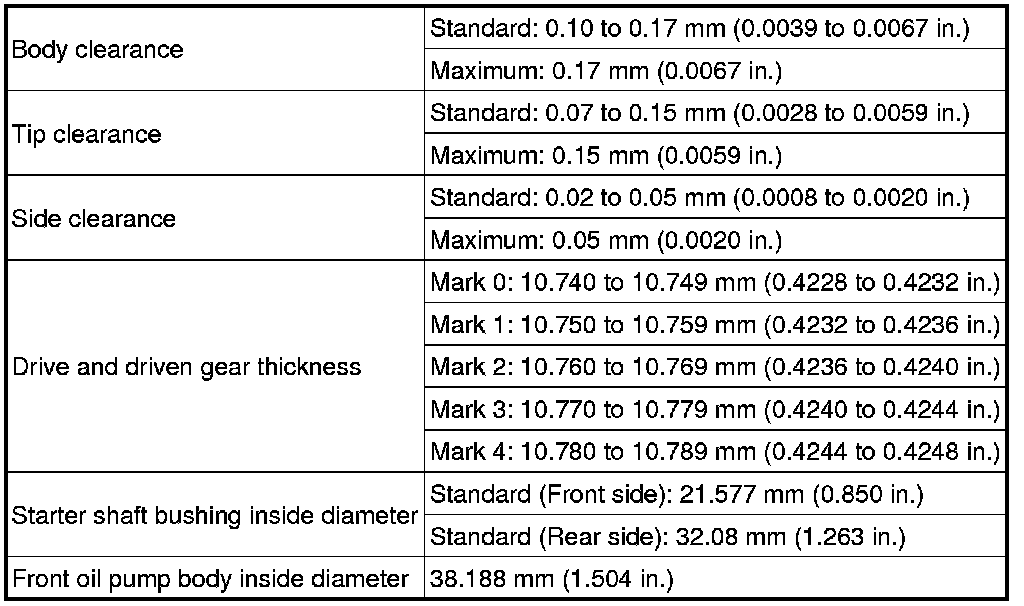

Oil Pump

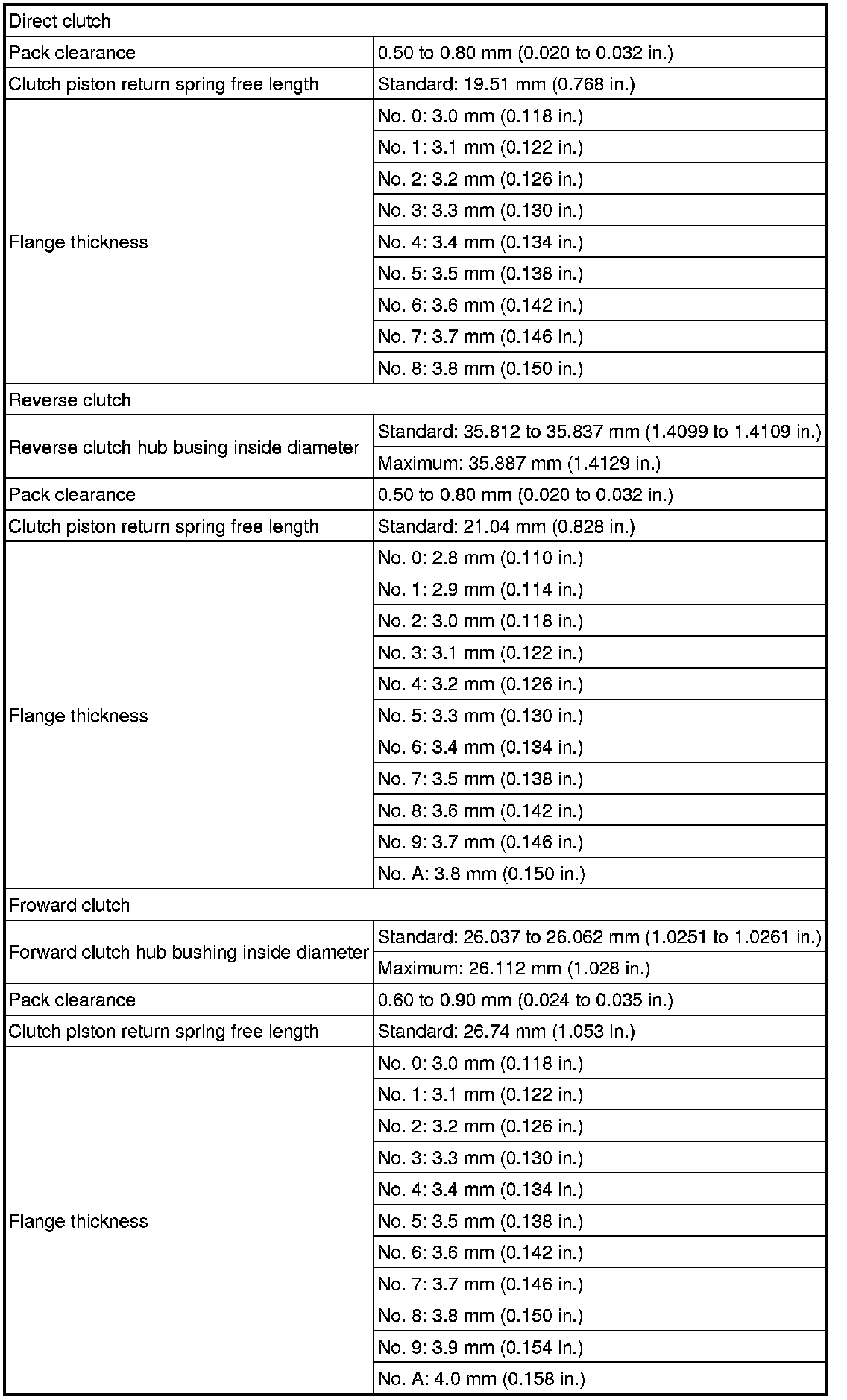

Clutch Drum and Input Shaft





Accumulator
