Inspection

WINDSHIELD / WINDOW GLASS: POWER WINDOW REGULATOR MOTOR: INSPECTION

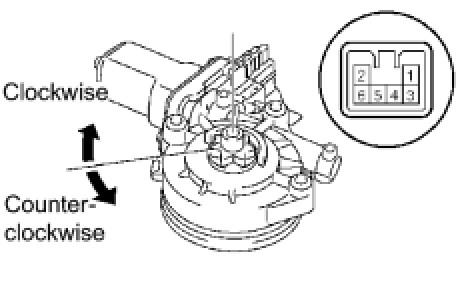

1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

(a) Check the operation of the regulator motor.





(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.

Standard:





If the result is not as specified, replace the power window regulator motor.

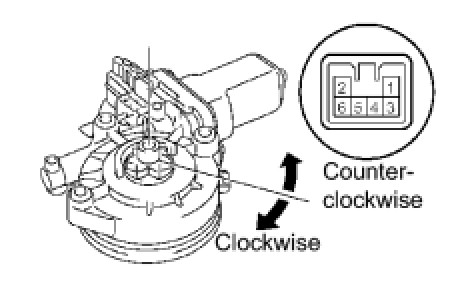

2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(a) Check the operation of the regulator motor.





(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.

Standard:





If the result is not as specified, replace the power window regulator motor.
