Symptom Related Diagnostic Procedures
A750F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
* If no DTCs are displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts on the following pages and proceed to the page given for troubleshooting.
* The Matrix Chart is divided into 2 chapters.
* *1: Denotes that when there are malfunctions in the circuit, DTCs may be set.

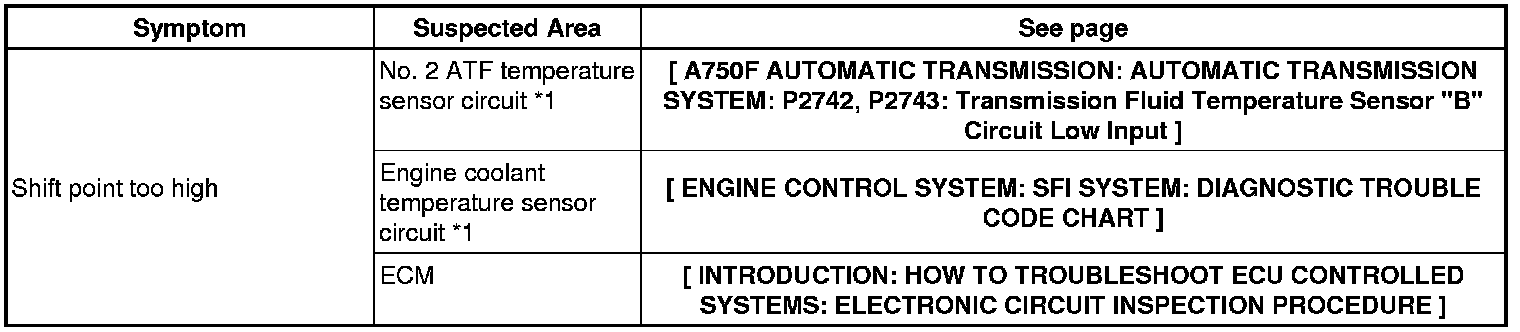

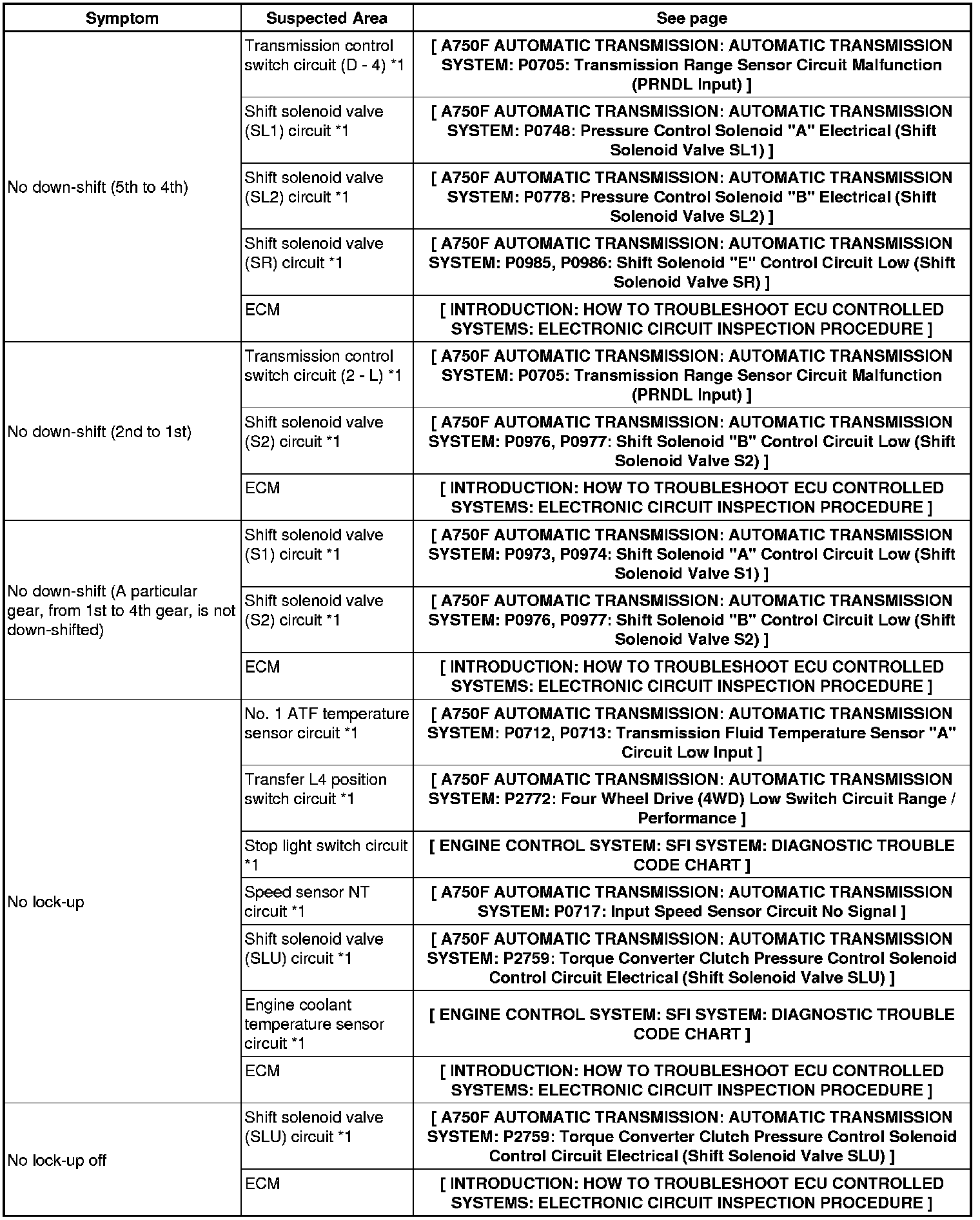

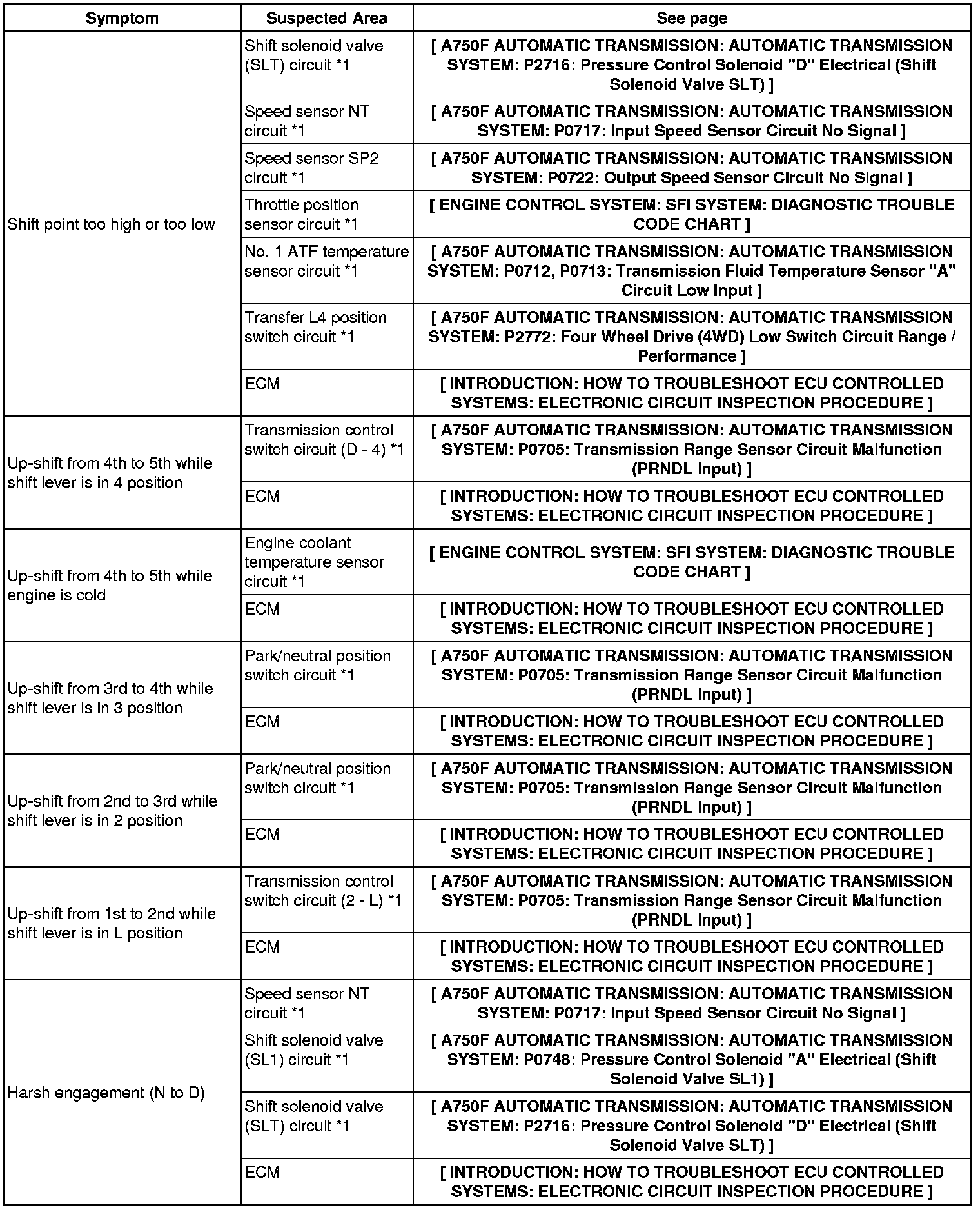

Chapter 1: Electronic Circuit Matrix Chart
Refer to the table below when the cause of the trouble is considered to be electrical.
If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.

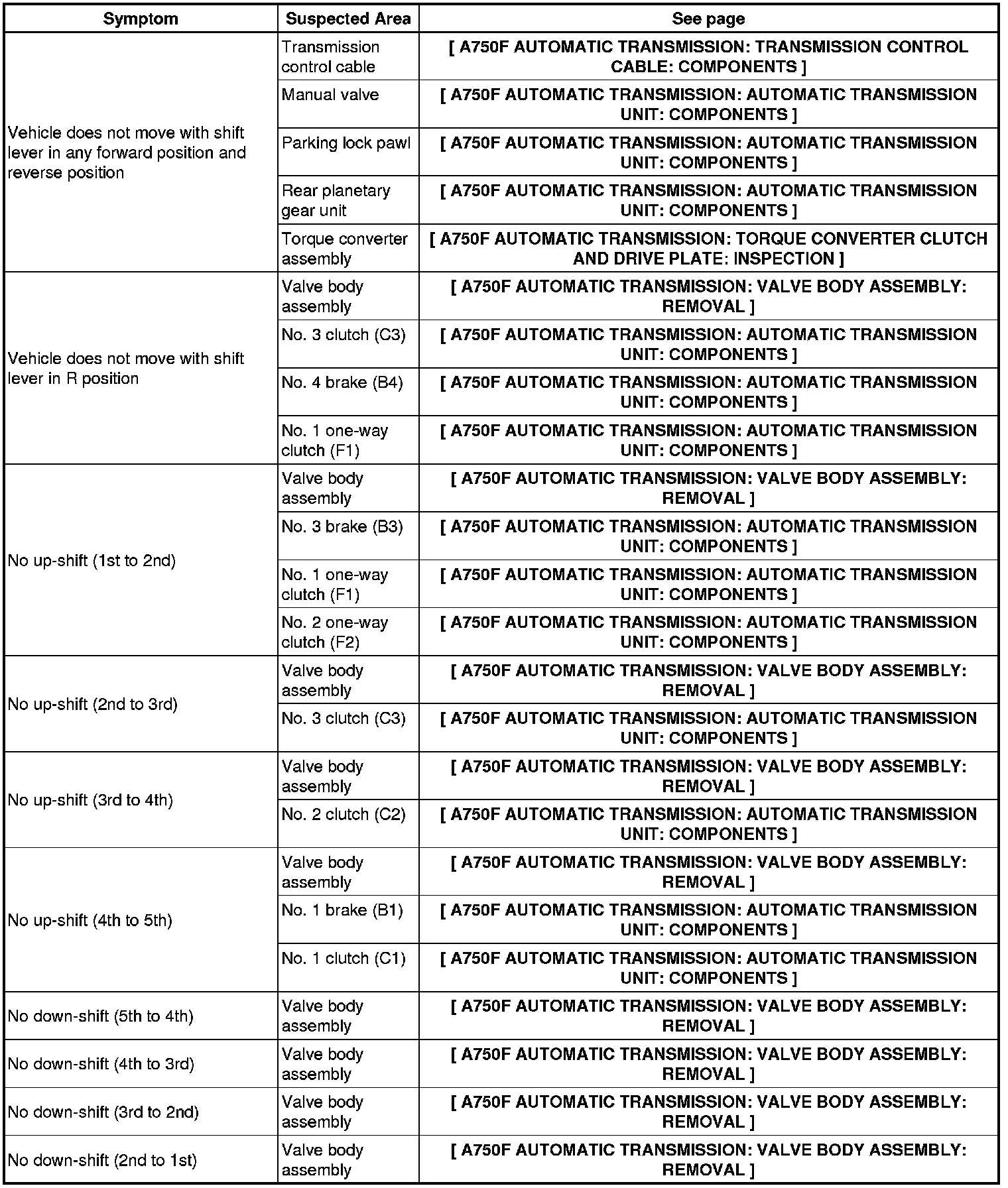

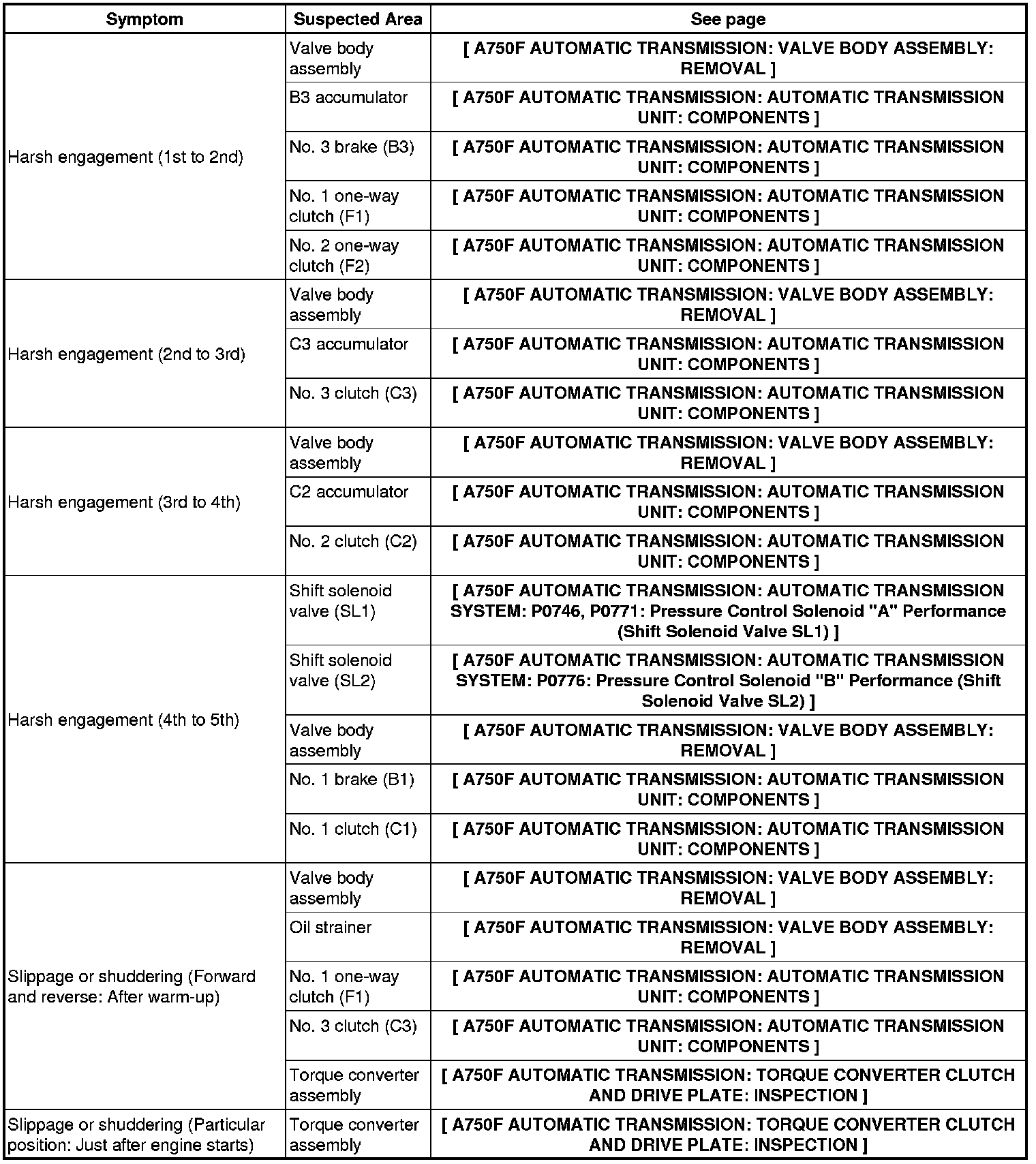

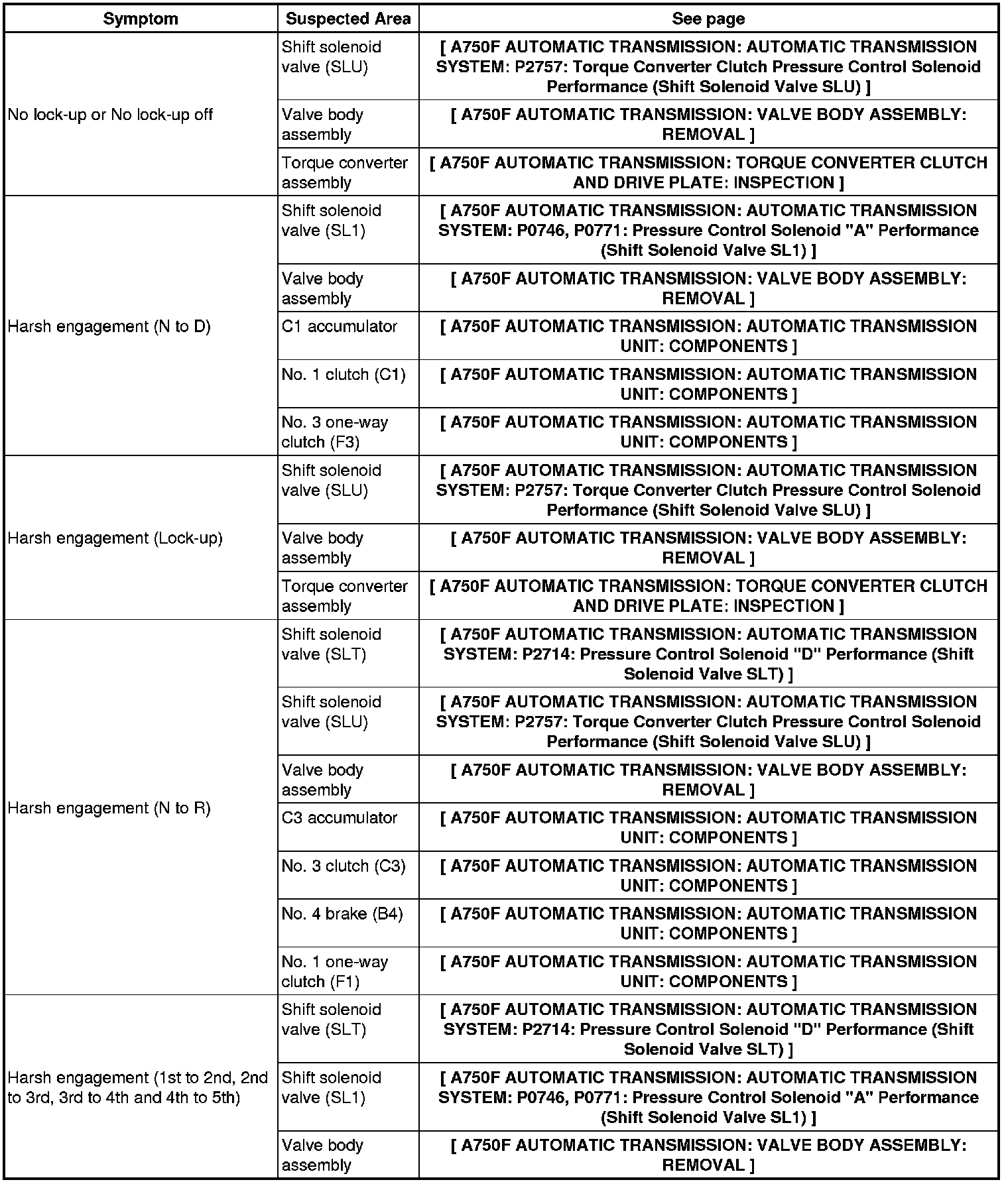

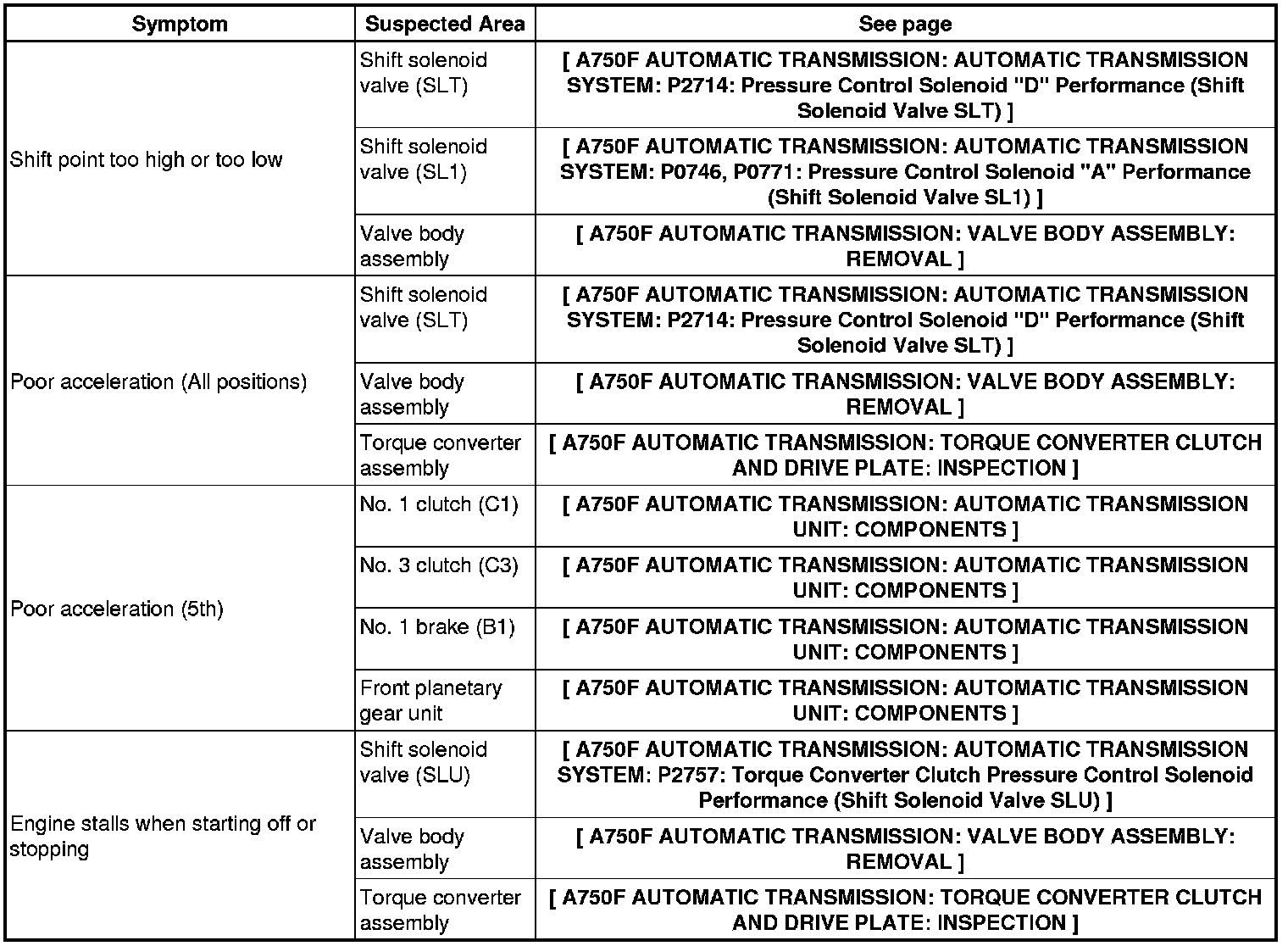

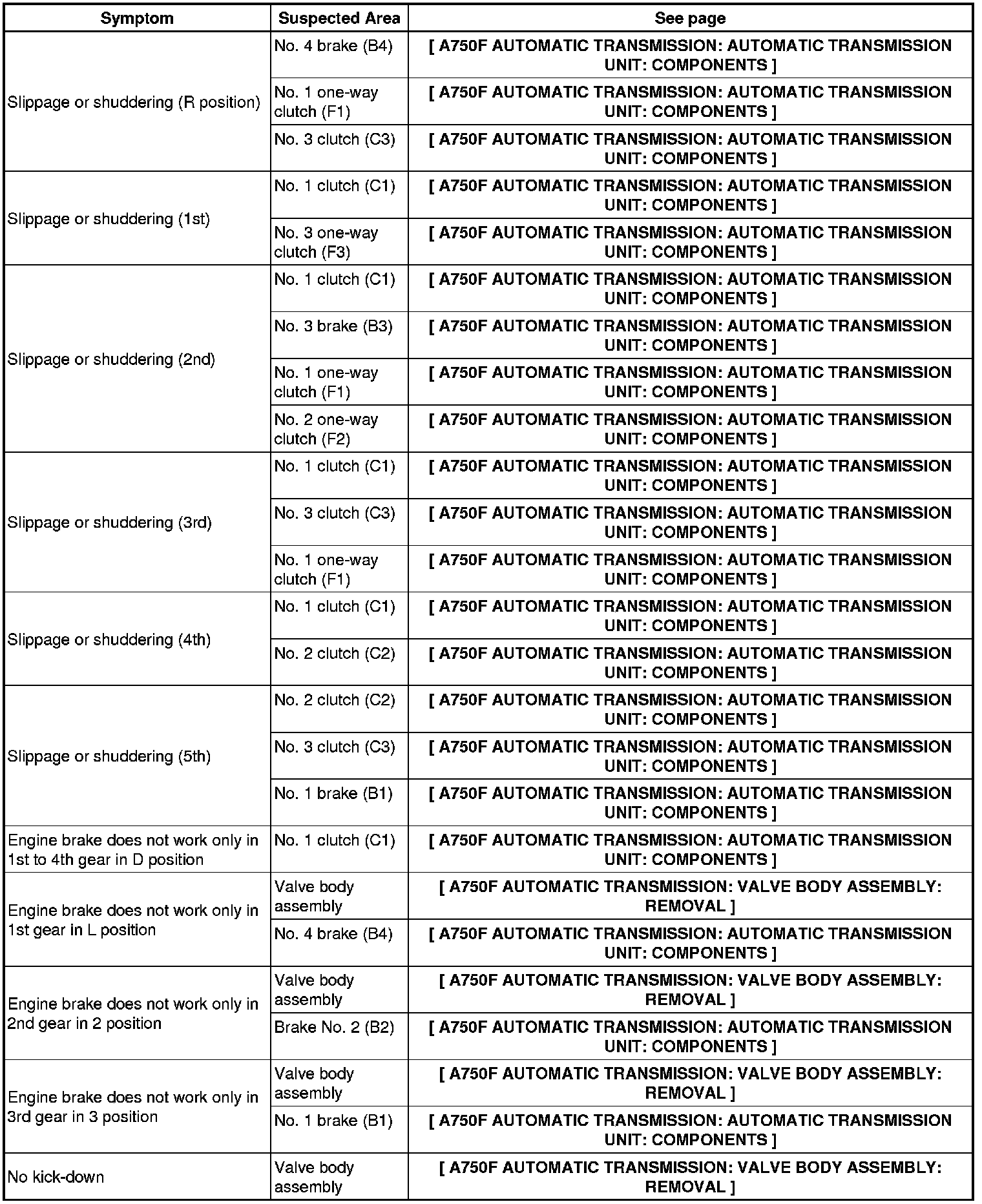

Chapter 2: On-Vehicle Repair and Off-Vehicle Repair
