Service Data





SERVICE SPECIFICATIONS: VF4B TRANSFER: SERVICE DATA

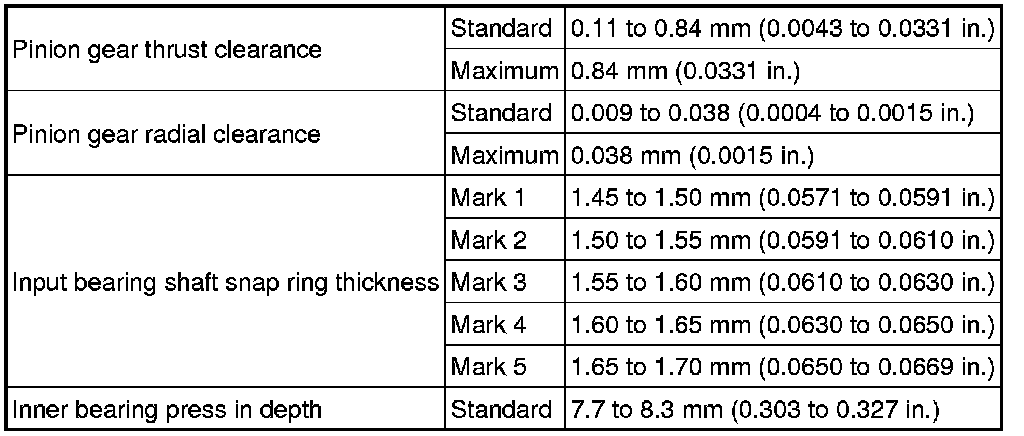

Rear output shaft

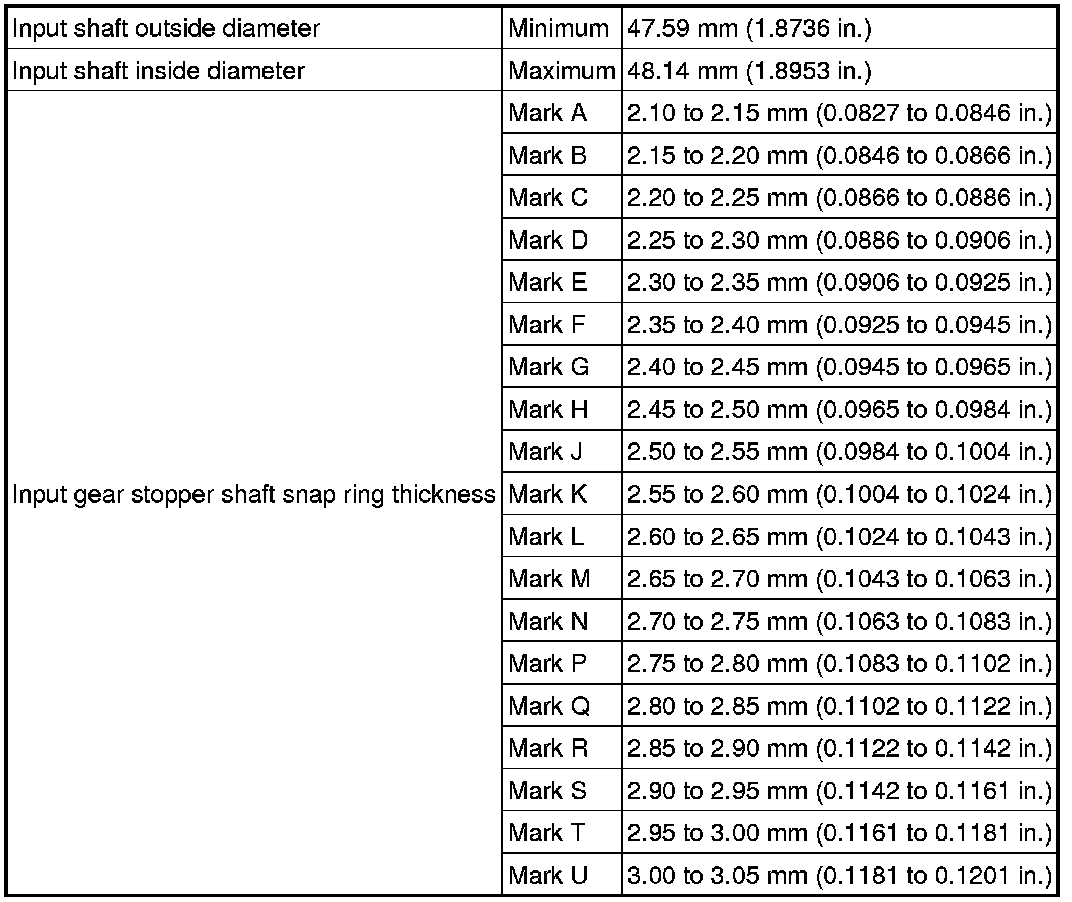

Input shaft





Planetary gear





Oil seal
