Torque Specifications

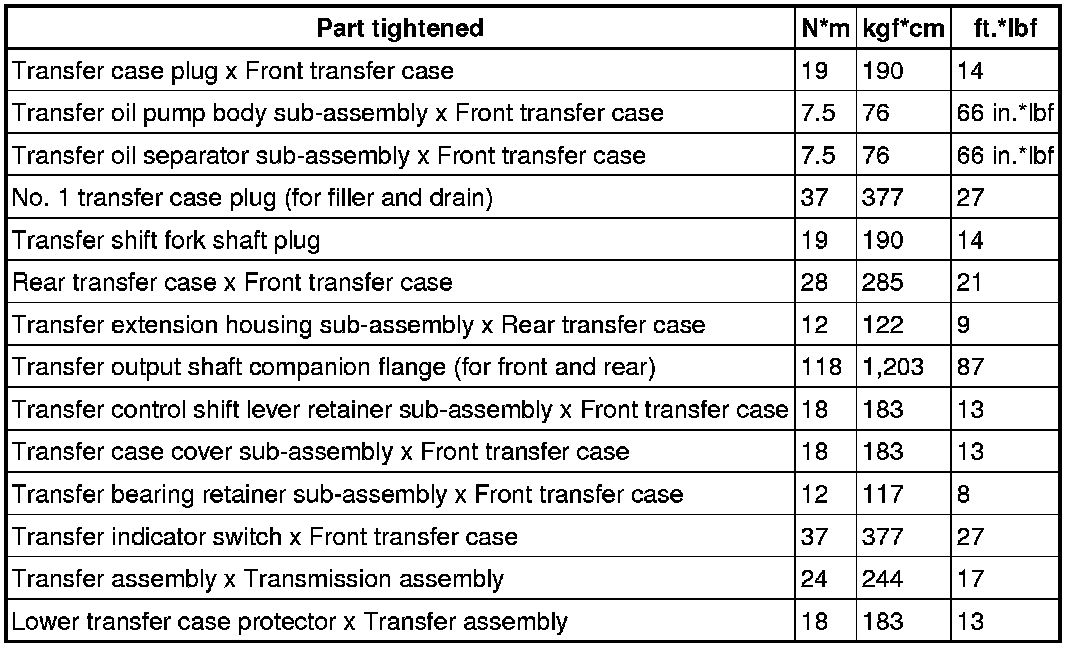

SERVICE SPECIFICATIONS: VF4B TRANSFER: TORQUE SPECIFICATIONS

Transfer oil





Transfer case oil seal





Extension housing oil seal





Transfer assembly





Speedometer driven gear
