1GR-FE STARTING: IGNITION SWITCH: INSTALLATION

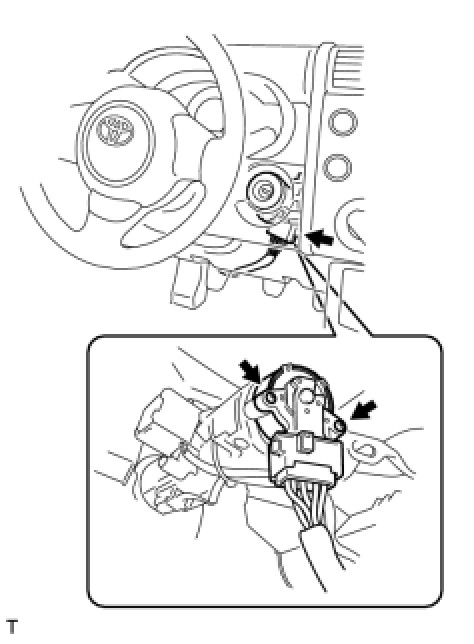

1. INSTALL IGNITION SWITCH ASSEMBLY





(a) Connect the connector.

(b) Install the ignition switch with the 2 screws.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 3.9 Nm (40 kgf-cm, 35 in-lbf)
