Front Passenger Side Power Window Switch

WINDSHIELD / WINDOW GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Check the resistance.





Text in Illustration

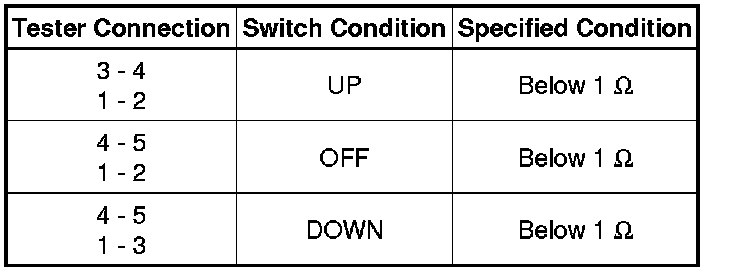

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the power window regulator switch assembly.
