Power Window Master Switch

WINDSHIELD / WINDOW GLASS: POWER WINDOW MASTER SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Check the resistance.





Text in Illustration





(1) Measure the resistance according to the value(s) in the table below.

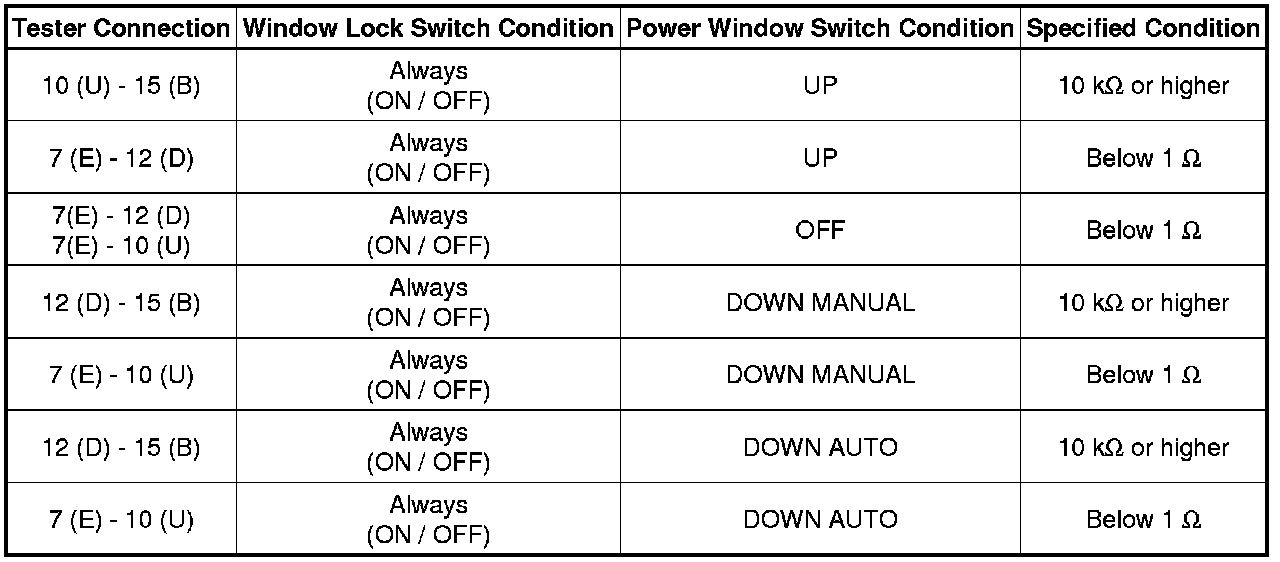

Standard Resistance:

Driver switch






If the result is not as specified, replace the power window regulator master switch assembly.

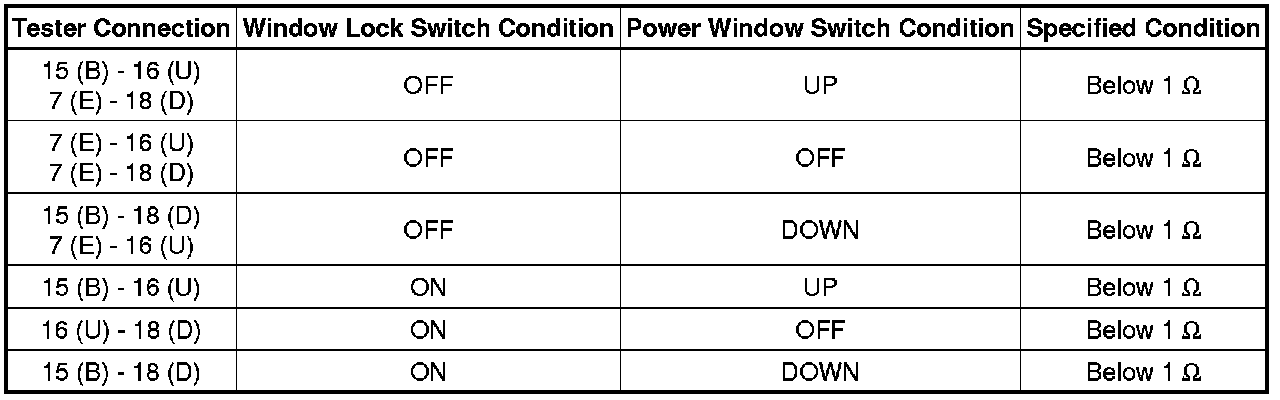

Standard Resistance:

Front passenger switch






If the result is not as specified, replace the power window regulator master switch assembly.

(b) Check the illumination operation.

(1) Apply battery voltage to the power window regulator master switch and check that the illumination comes on.

Standard:





If the result is not as specified, replace the power window regulator master switch assembly.
