Disassembly

1AR-FE STARTING: STARTER: DISASSEMBLY

1. REMOVE MAGNET STARTER SWITCH ASSEMBLY

(a) Remove the nut and disconnect the lead wire from the magnet starter switch.





(b) Holding the magnet starter switch assembly on the repair service starter kit, remove the 2 nuts





(c) Remove the magnet starter switch assembly.

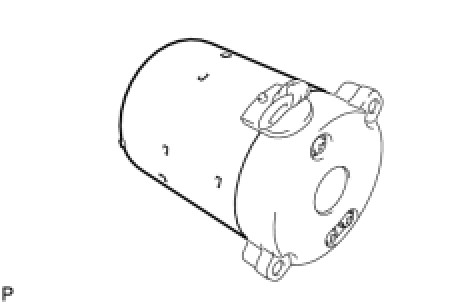

2. REMOVE STARTER YOKE ASSEMBLY

(a) Remove the 2 through-bolts, and pull out the starter yoke assembly together with the starter commutator end frame assembly.





(b) Remove the starter yoke assembly from the starter commutator end frame assembly.





3. REMOVE STARTER ARMATURE PLATE

(a) Remove the starter armature plate from the starter yoke assembly.





4. REMOVE STARTER COMMUTATOR END FRAME COVER

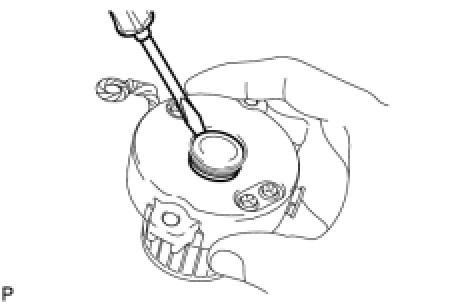

(a) Using a screwdriver, pry out the starter commutator end frame cover to remove it.





5. REMOVE STARTER ARMATURE ASSEMBLY

(a) Using snap ring pliers, remove the snap ring and washer.





(b) Remove the starter armature assembly from the starter commutator end frame assembly.

NOTICE:
Do not drop the starter armature assembly.

6. REMOVE RUBBER SEAL

(a) Remove the rubber seal from the repair service starter kit.





7. REMOVE PLANETARY GEAR

(a) Remove the 3 planetary gears from the repair service starter kit.
