Service Data

Wheel Alignment Specifications (Unloaded Vehicle)

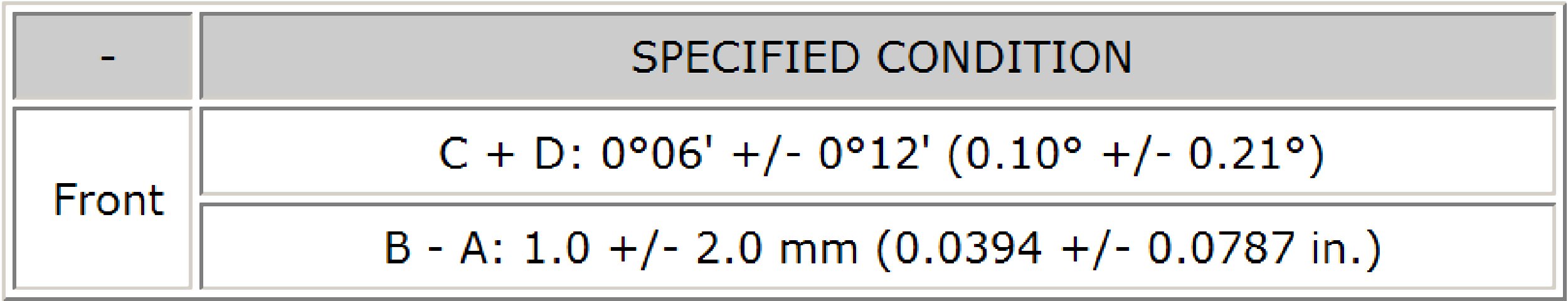

Vehicle Height:

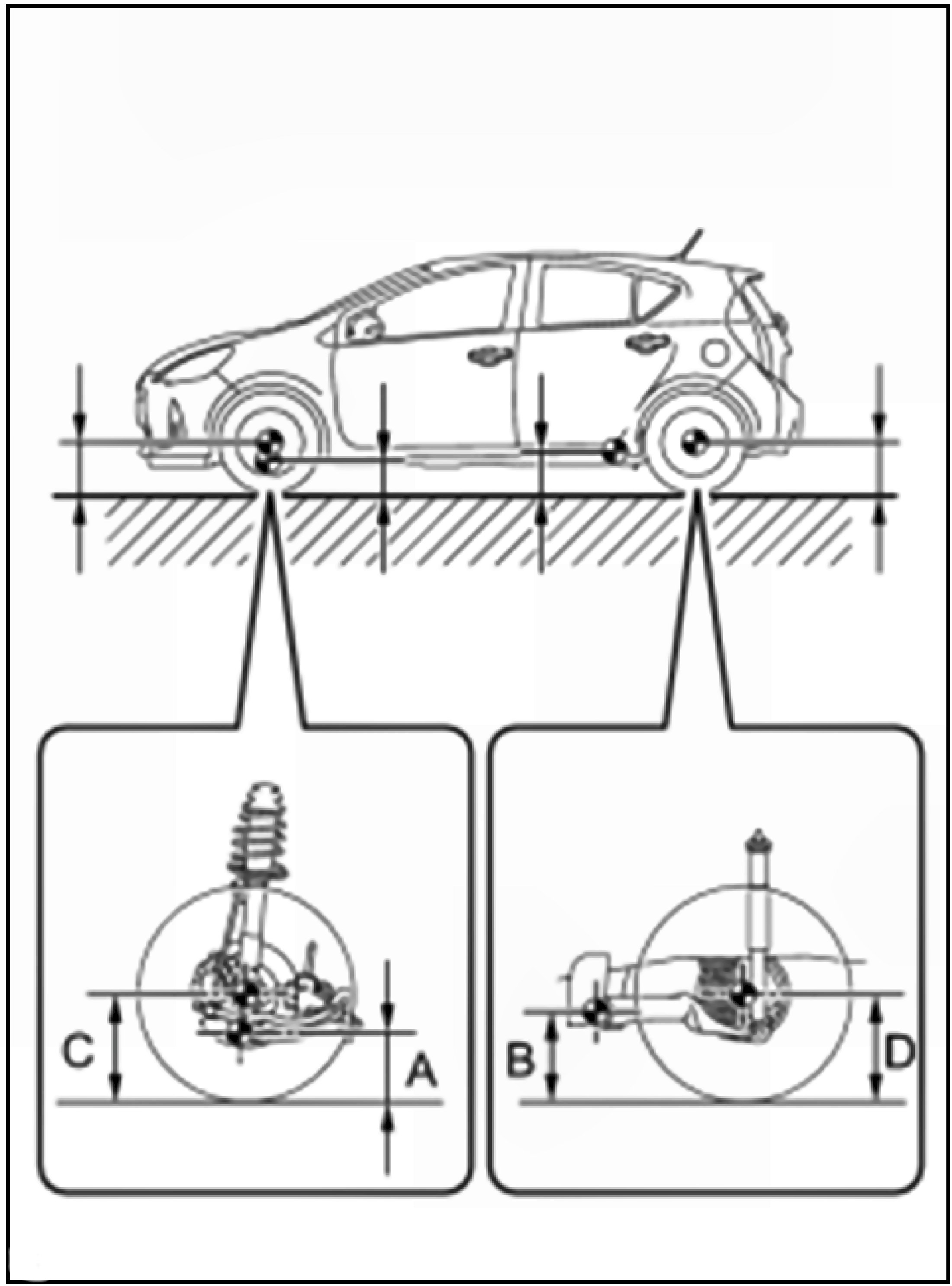

Measurement points:
A: Ground clearance of front lower No. 1 suspension arm bushing set bolt center
B: Ground clearance of rear axle beam bushing set bolt center
C: Ground clearance of front wheel center
D: Ground clearance of rear wheel center

Camber:

Caster:

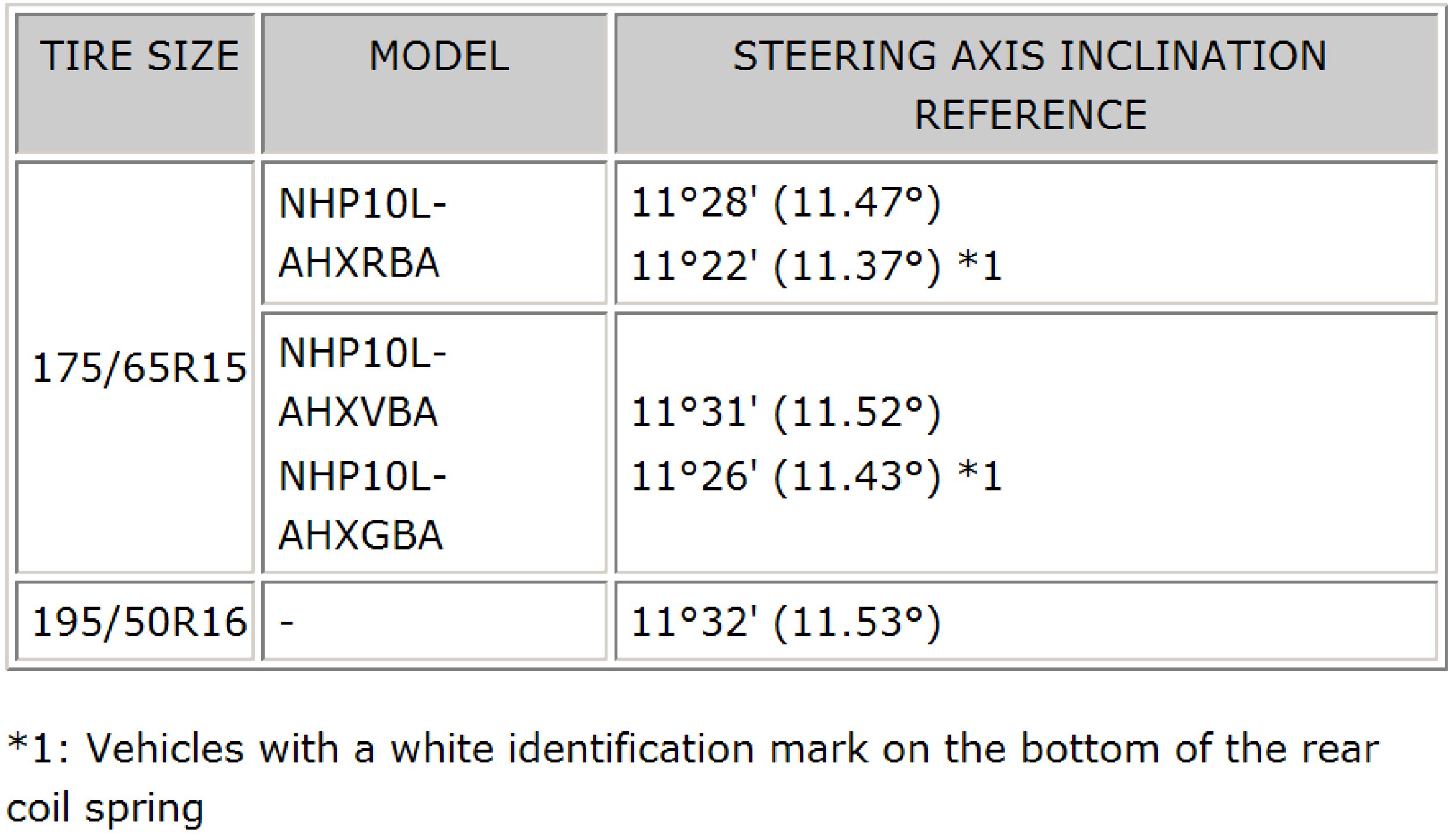

Steering Axis:

Toe-in Front:

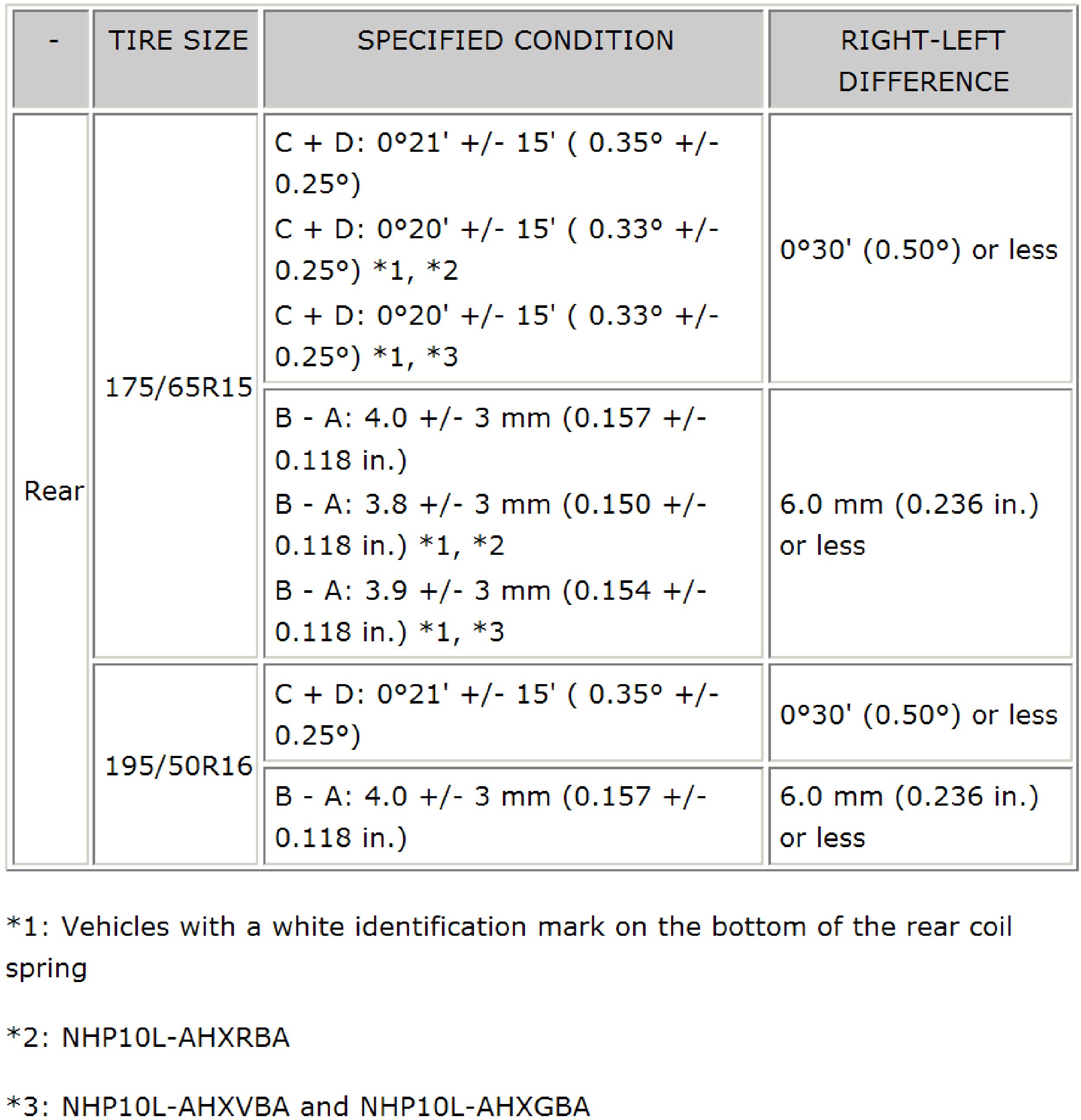

Toe-in Rear:

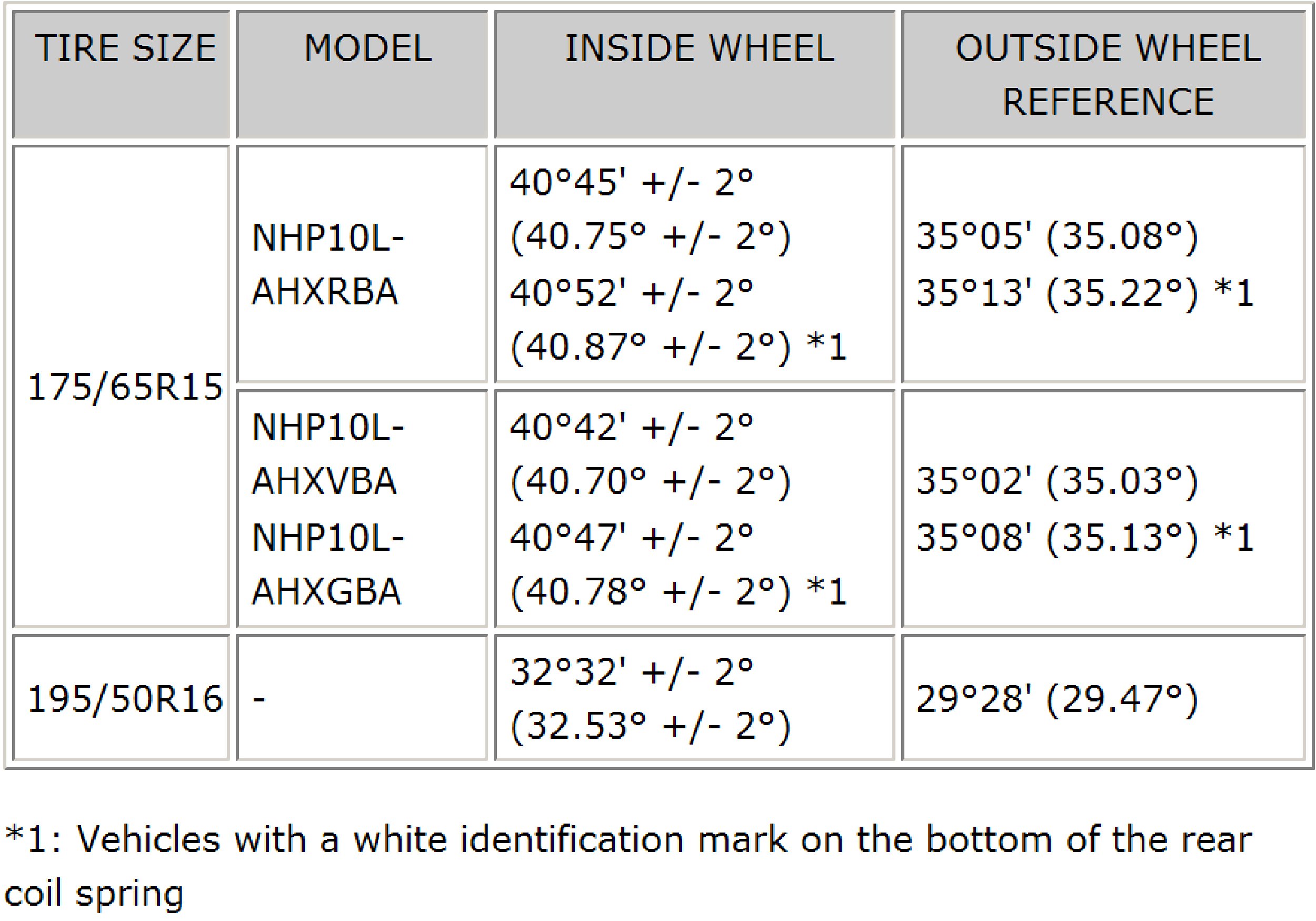

Wheel Angle:
