Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

MEASURE VEHICLE HEIGHT

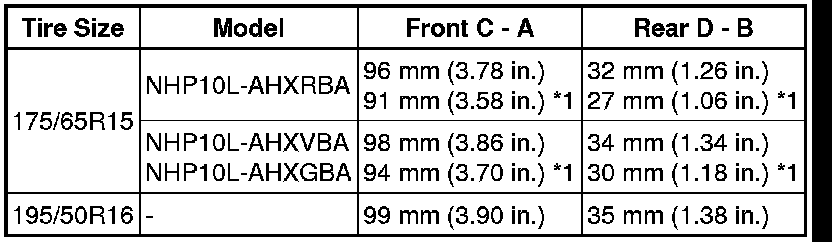

Vehicle Height (Unloaded Vehicle):






*1: Vehicles with a white identification mark on the bottom of the rear coil spring

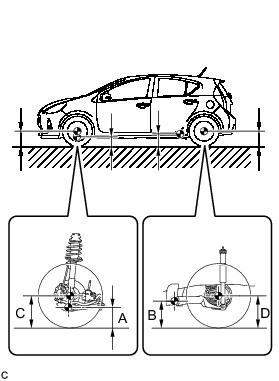

Measurement points:

* A: Ground clearance of front lower No. 1 suspension arm bushing set bolt center

* B: Ground clearance of rear axle beam bushing set bolt center

* C: Ground clearance of front wheel center

* D: Ground clearance of rear wheel center

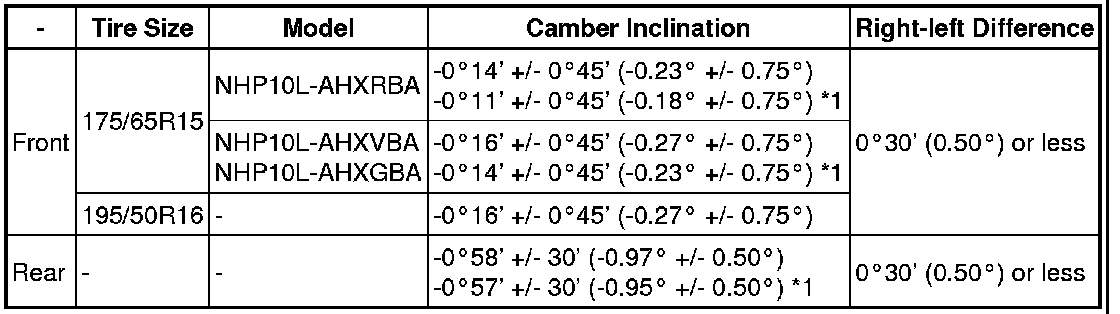

Camber (Unloaded Vehicle):





*1: Vehicles with a white identification mark on the bottom of the rear coil spring

Caster (Unloaded Vehicle):





*1: Vehicles with a white identification mark on the bottom of the rear coil spring

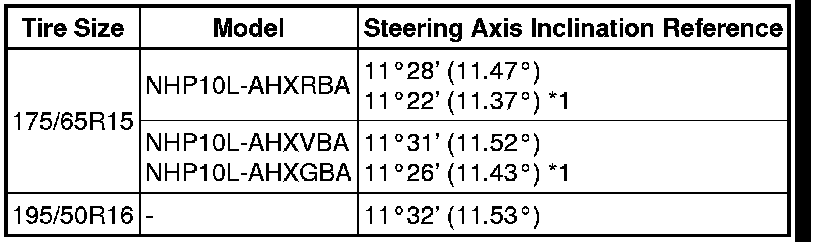

Steering Axis (Unloaded Vehicle):





*1: Vehicles with a white identification mark on the bottom of the rear coil spring

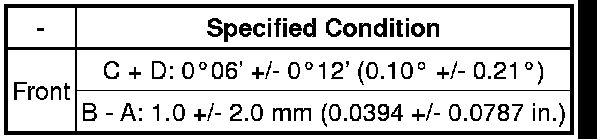

Toe-in (Unloaded Vehicle)

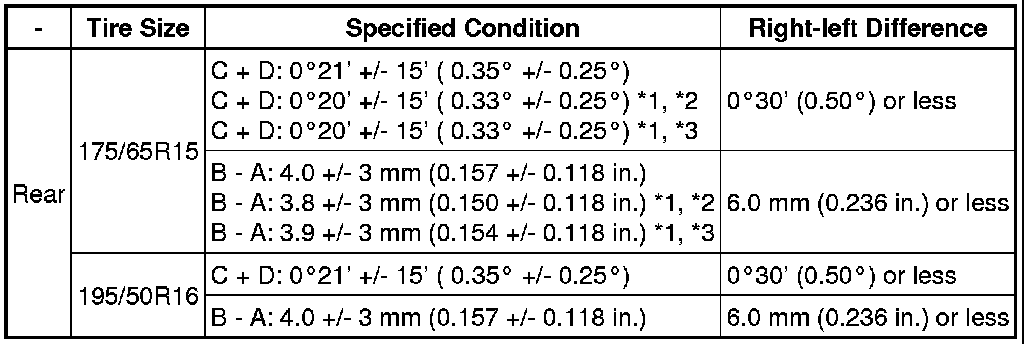

Toe-in (Unloaded Vehicle):





*1: Vehicles with a white identification mark on the bottom of the rear coil spring

*2: NHP10L-AHXRBA

*3: NHP10L-AHXVBA and NHP10L-AHXGBA

Wheel Angle (Unloaded Vehicle):





*1: Vehicles with a white identification mark on the bottom of the rear coil spring
