Programming and Relearning

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE WIRELESS DOOR LOCK CONTROL SYSTEM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Customizing with the Techstream

(1) Connect the Techstream.

(2) Turn the power switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Customize Setting / Wireless Door Lock.

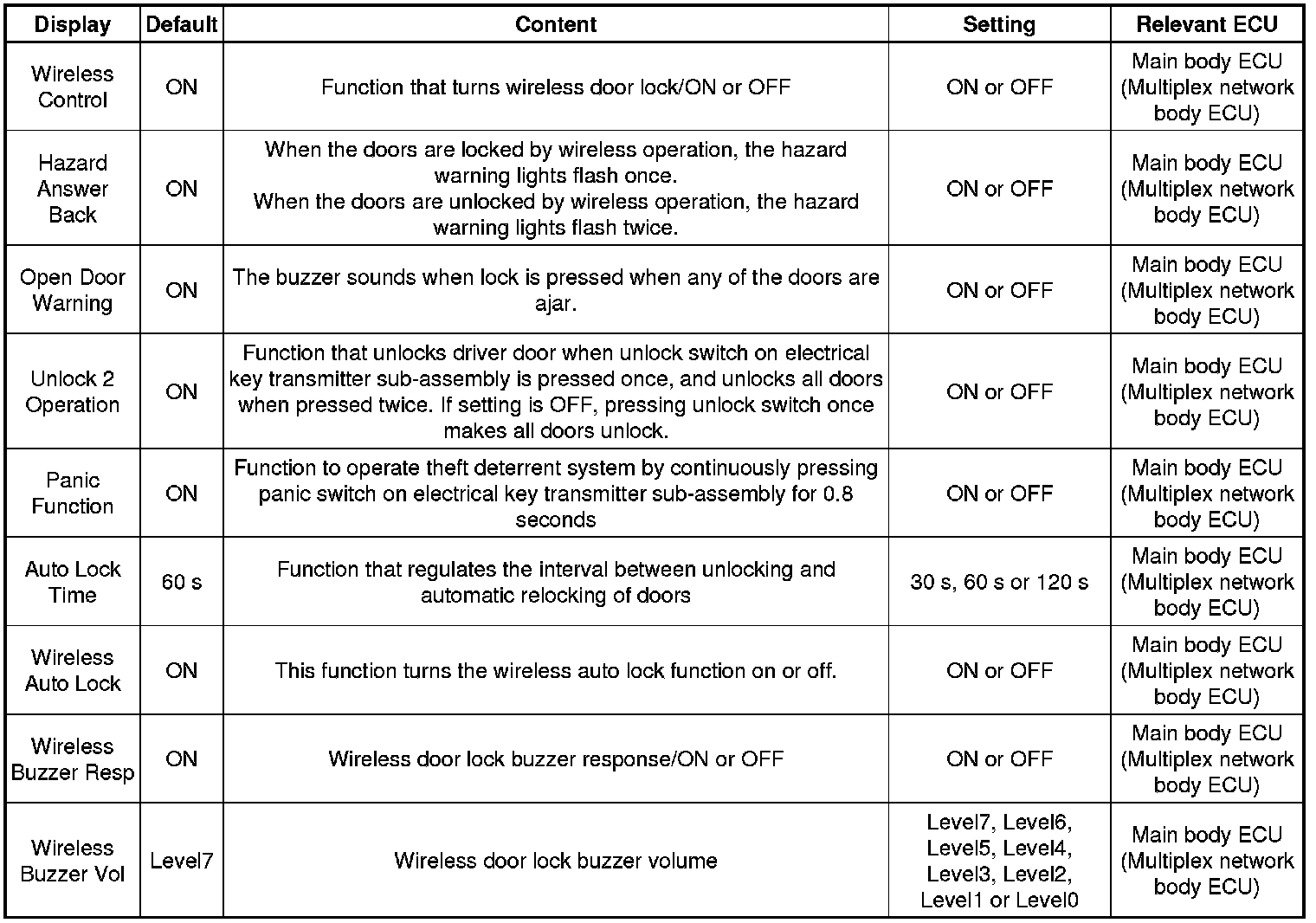

(5) Select the setting by referring to the table below.





(b) Customizing with the Multi-display (for Navigation Receiver Type)

(1) Turn the power switch on (IG).

(2) Enter the following menus: SETUP / Vehicle / Vehicle Customization / Door Lock Setting.

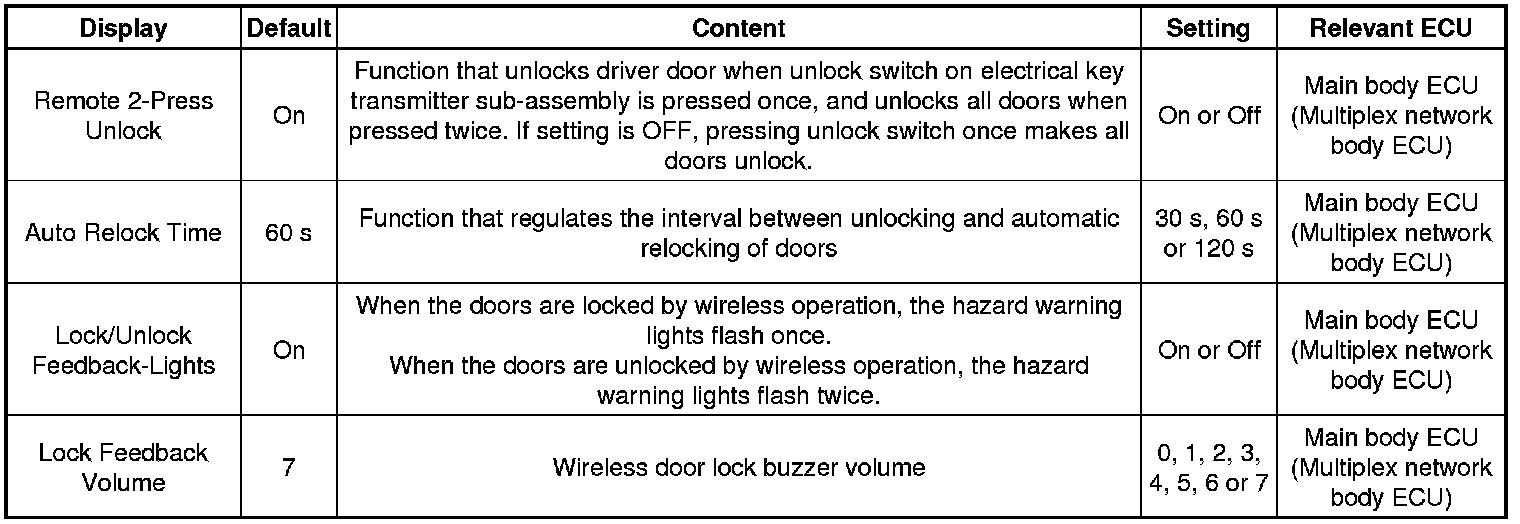

(3) Select the setting by referring to the table below.





(c) Customizing with the Multi-display (for Radio and Display Type)

(1) Turn the power switch on (IG).

(2) Enter the following menus: SETUP / Vehicle.

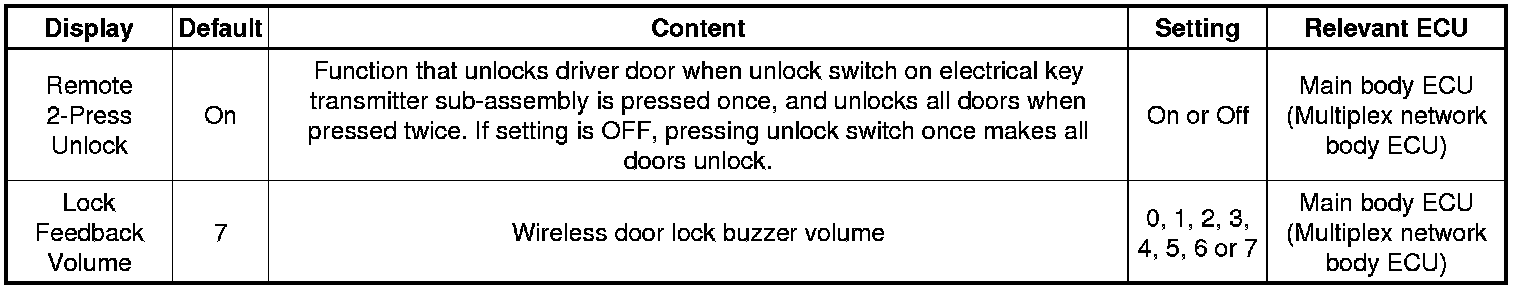

(3) Select the setting by referring to the table below.
