System Diagram
System Diagram

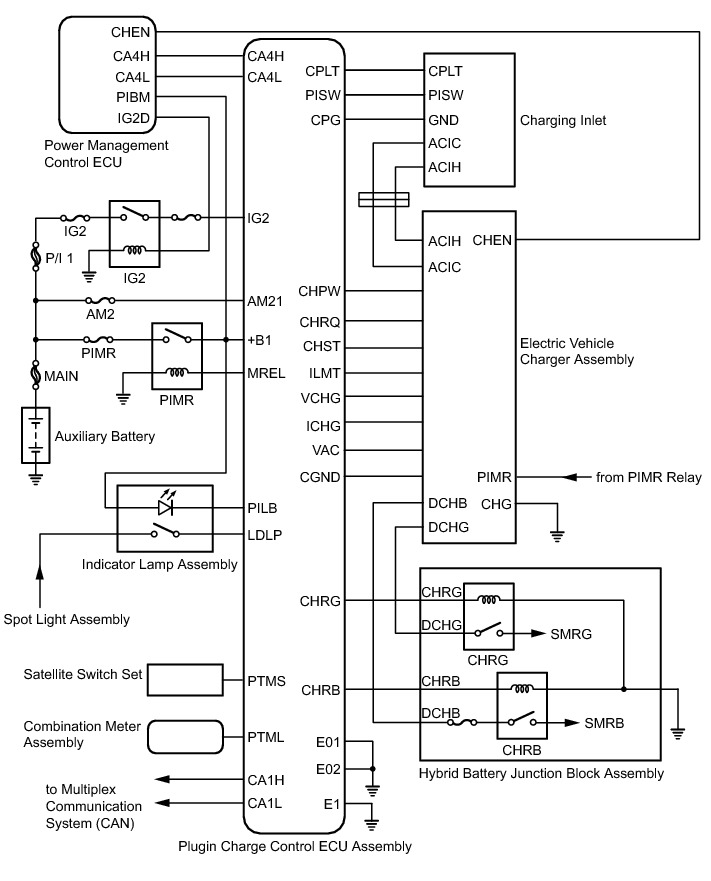

HYBRID / BATTERY CONTROL: PLUG-IN CHARGE CONTROL SYSTEM: SYSTEM DIAGRAM
